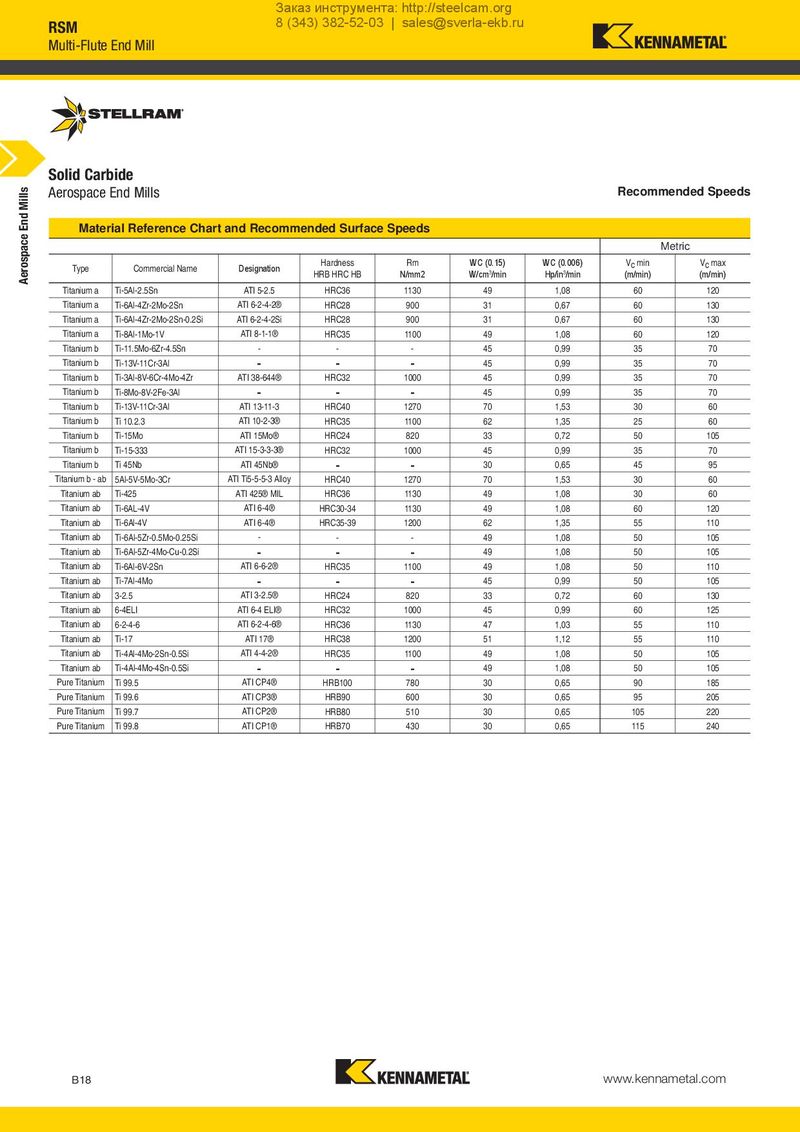

Solid Carbide
Aerospace End Mills Recommended Speeds
Material Reference Chart and Recommended Surface Speeds
Metric
| Type | Commercial Name Designation | Hardness | Rm | WC (0.15) | WC (0.006) | Vc min | Vc max | |||
| HRB HRC HB | N/mm2 | W/cm3/min | Hp/in3/min | (m/min) | (m/min) | |||||
| Titanium a | Ti-5Al-2.5Sn | ATI 5-2.5 | HRC36 | 1130 | 49 | 1,08 | 60 | 120 | ||
| Titanium a | Ti-6Al-4Zr-2Mo-2Sn | ATI 6-2-4-2® | HRC28 | 900 | 31 | 0,67 | 60 | 130 | ||
| Titanium a | Ti-6Al-4Zr-2Mo-2Sn-0.2Si | ATI 6-2-4-2Si | HRC28 | 900 | 31 | 0,67 | 60 | 130 | ||
| Titanium a | Ti-8Al-1Mo-1V | ATI 8-1-1® | HRC35 | 1100 | 49 | 1,08 | 60 | 120 | ||
| Titanium b | Ti-11.5Mo-6Zr-4.5Sn | - | - | - | 45 | 0,99 | 35 | 70 | ||
| Titanium b | Ti-13V-11Cr-3Al | - | - | - | 45 | 0,99 | 35 | 70 | ||
| Titanium b | Ti-3Al-8V-6Cr-4Mo-4Zr | ATI 38-644® | HRC32 | 1000 | 45 | 0,99 | 35 | 70 | ||
| Titanium b | Ti-8Mo-8V-2Fe-3Al | - | - | - | 45 | 0,99 | 35 | 70 | ||
| Titanium b | Ti-13V-11Cr-3Al | ATI 13-11-3 | HRC40 | 1270 | 70 | 1,53 | 30 | 60 | ||
| Titanium b | Ti 10.2.3 | ATI 10-2-3® | HRC35 | 1100 | 62 | 1,35 | 25 | 60 | ||
| Titanium b | Ti-15Mo | ATI 15Mo® | HRC24 | 820 | 33 | 0,72 | 50 | 105 | ||
| Titanium b | Ti-15-333 | ATI 15-3-3-3® | HRC32 | 1000 | 45 | 0,99 | 35 | 70 | ||
| Titanium b | Ti 45Nb | ATI 45Nb® | - | - | 30 | 0,65 | 45 | 95 | ||
| Titanium b - ab | 5Al-5V-5Mo-3Cr | ATI Ti5-5-5-3 Alloy | HRC40 | 1270 | 70 | 1,53 | 30 | 60 | ||
| Titanium ab | Ti-425 | ATI 425® MIL | HRC36 | 1130 | 49 | 1,08 | 30 | 60 | ||
| Titanium ab | Ti-6AL-4V | ATI 6-4® | HRC30-34 | 1130 | 49 | 1,08 | 60 | 120 | ||
| Titanium ab | Ti-6Al-4V | ATI 6-4® | HRC35-39 | 1200 | 62 | 1,35 | 55 | 110 | ||
| Titanium ab | Ti-6Al-5Zr-0.5Mo-0.25Si | - | - | - | 49 | 1,08 | 50 | 105 | ||
| Titanium ab | Ti-6Al-5Zr-4Mo-Cu-0.2Si | - | - | - | 49 | 1,08 | 50 | 105 | ||
| Titanium ab | Ti-6Al-6V-2Sn | ATI 6-6-2® | HRC35 | 1100 | 49 | 1,08 | 50 | 110 | ||
| Titanium ab | Ti-7Al-4Mo | - | - | - | 45 | 0,99 | 50 | 105 | ||
| Titanium ab | 3-2.5 | ATI 3-2.5® | HRC24 | 820 | 33 | 0,72 | 60 | 130 | ||
| Titanium ab | 6-4ELI | ATI 6-4 ELI® | HRC32 | 1000 | 45 | 0,99 | 60 | 125 | ||
| Titanium ab | 6-2-4-6 | ATI 6-2-4-6® | HRC36 | 1130 | 47 | 1,03 | 55 | 110 | ||
| Titanium ab | Ti-17 | ATI 17® | HRC38 | 1200 | 51 | 1,12 | 55 | 110 | ||
| Titanium ab | Ti-4Al-4Mo-2Sn-0.5Si | ATI 4-4-2® | HRC35 | 1100 | 49 | 1,08 | 50 | 105 | ||
| Titanium ab | Ti-4Al-4Mo-4Sn-0.5Si | - | - | - | 49 | 1,08 | 50 | 105 | ||
| Pure Titanium | Ti 99.5 | ATI CP4® | HRB100 | 780 | 30 | 0,65 | 90 | 185 | ||
| Pure Titanium | Ti 99.6 | ATI CP3® | HRB90 | 600 | 30 | 0,65 | 95 | 205 | ||
| Pure Titanium | Ti 99.7 | ATI CP2® | HRB80 | 510 | 30 | 0,65 | 105 | 220 | ||
| Pure Titanium | Ti 99.8 | ATI CP1® | HRB70 | 430 | 30 | 0,65 | 115 | 240 |
