Каталог Stellram токарный инструмент - страница 74

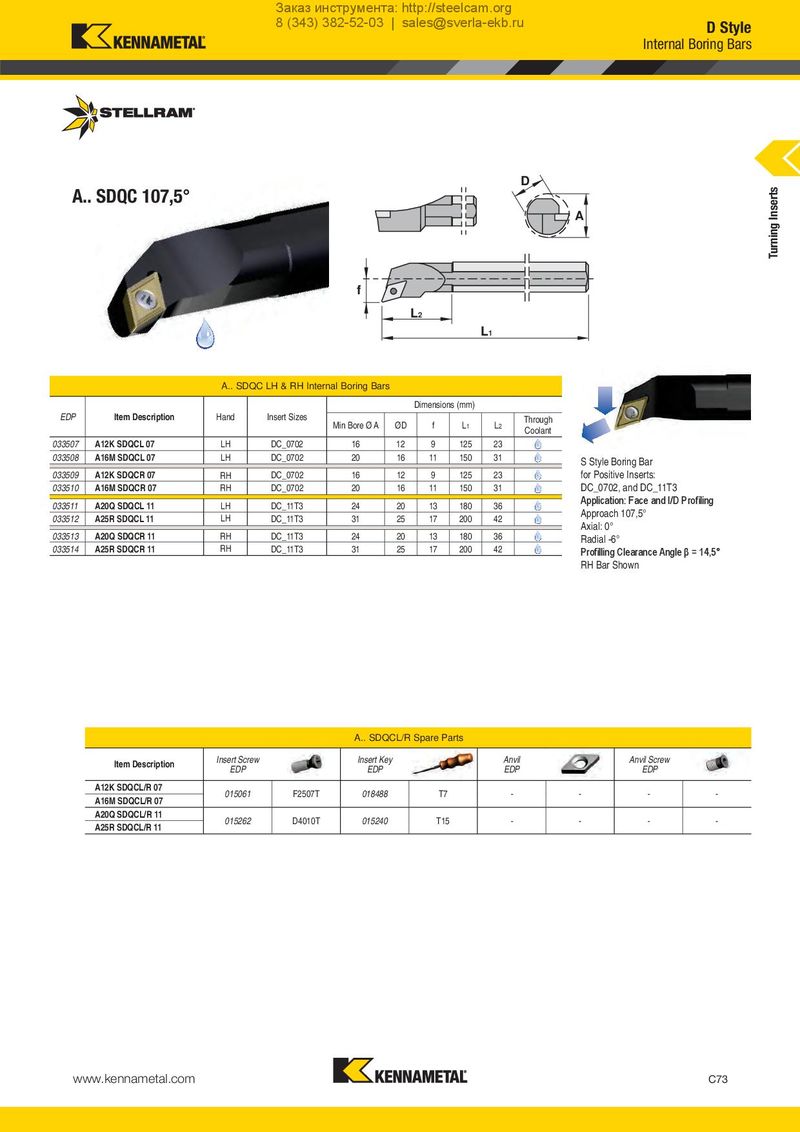

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru D Style Internal Boring Bars D Turning Inserts A.. SDQC 107,5° A f L2 L1 A.. SDQC LH & RH Internal Boring Bars Dimensions (mm) EDP Item Description Hand Insert Sizes Min Bore Ø A ØD f L1 L2 Through Coolant 033507 A12K SDQCL 07 LH DC_0702 16 12 9 125 23 033508 A16M SDQCL 07 LH DC_0702 20 16 11 150 31 S Style Boring Bar 033509 A12K SDQCR 07 RH DC_0702 16 12 9 125 23 for Positive Inserts: 033510 A16M SDQCR 07 RH DC_0702 20 16 11 150 31 DC_0702, and DC_11T3 033511 A20Q SDQCL 11 LH DC_11T3 24 20 13 180 36 Application: Face and I/D Profiling 033512 A25R SDQCL 11 LH DC_11T3 31 25 17 200 42 Approach 107,5° 033513 A20Q SDQCR 11 DC_11T3 24 20 13 180 36 Axial: 0° RH Radial -6° 033514 A25R SDQCR 11 RH DC_11T3 31 25 17 200 42 Profilling Clearance Angle β = 14,5° RH Bar Shown A.. SDQCL/R Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP A12K SDQCL/R 07 015061 F2507T 018488 T7 - - - - A16M SDQCL/R 07 A20Q SDQCL/R 11 015262 D4010T 015240 T15 - - - - A25R SDQCL/R 11 www.kennametal.com C73
