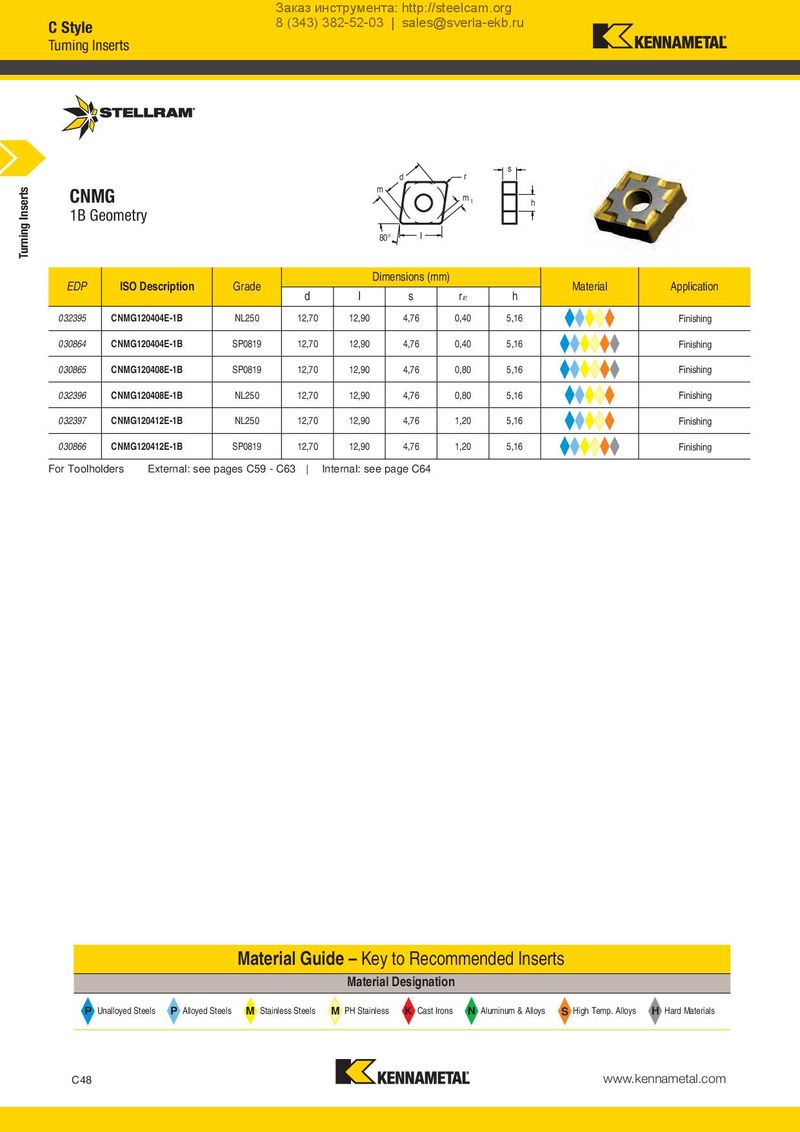

d CNMG m

1B Geometry

80° I

s r m h 1

EDPISO DescriptionGradeDimensions (mm)MaterialApplication
dIsrh
032395CNMG120404E-1BNL25012,7012,904,760,405,16Finishing
030864CNMG120404E-1BSP081912,7012,904,760,405,16Finishing
030865CNMG120408E-1BSP081912,7012,904,760,805,16Finishing
032396CNMG120408E-1BNL25012,7012,904,760,805,16Finishing
032397CNMG120412E-1BNL25012,7012,904,761,205,16Finishing
030866CNMG120412E-1BSP081912,7012,904,761,205,16Finishing

For Toolholders External: see pages C59 - C63 | Internal: see page C64

Material Guide – Key to Recommended Inserts

Material Designation

P Unalloyed Steels P Alloyed Steels M Stainless Steels M PH Stainless K Cast Irons N Aluminum & Alloys S High Temp. Alloys H Hard Materials
