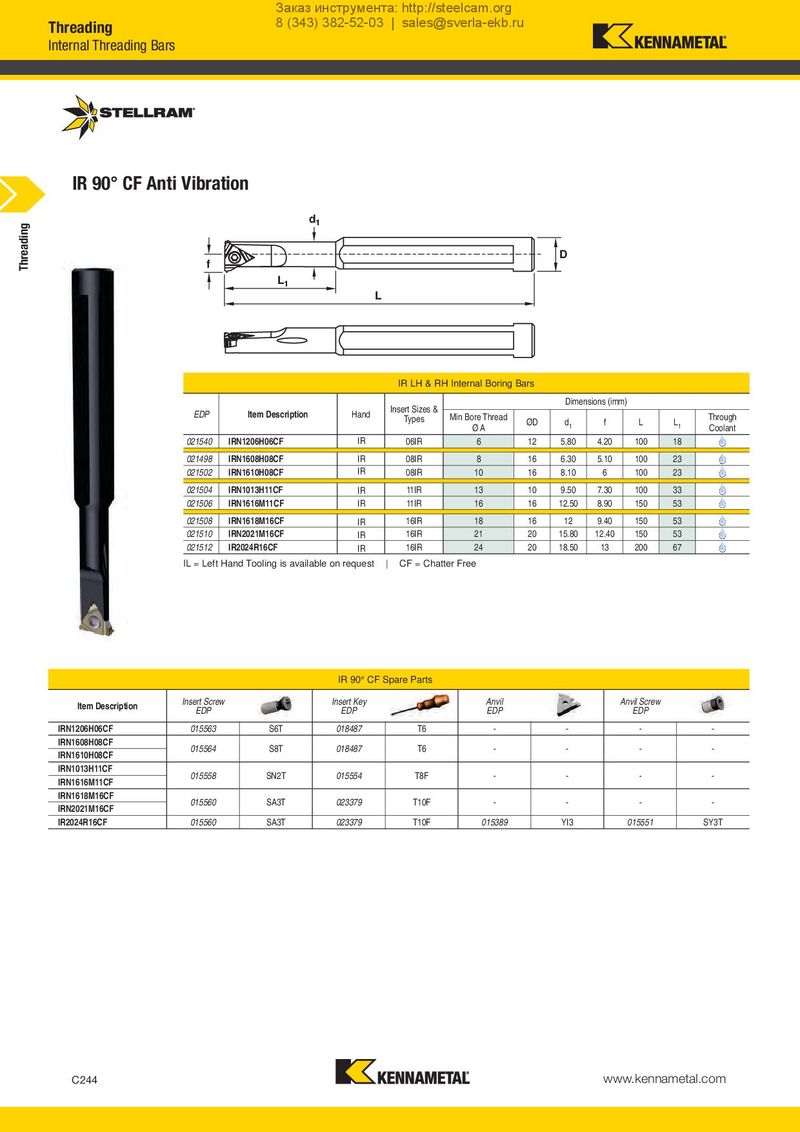

Заказ инструмента: http://steelcam.org Threading 8 (343) 382-52-03 | sales@sverla-ekb.ru Internal Threading Bars IR 90° CF Anti Vibration Threading d1 f D L1 L IR LH & RH Internal Boring Bars Insert Sizes & Dimensions (imm) EDP Item Description Hand Types Min Bore Thread ØD d1 f L L1 Through ØA Coolant 021540 IRN1206H06CF IR 06IR 6 12 5.80 4.20 100 18 021498 IRN1608H08CF IR 08IR 8 16 6.30 5.10 100 23 021502 IRN1610H08CF IR 08IR 10 16 8.10 6 100 23 021504 IRN1013H11CF IR 11IR 13 10 9.50 7.30 100 33 021506 IRN1616M11CF IR 11IR 16 16 12.50 8.90 150 53 021508 IRN1618M16CF IR 16IR 18 16 12 9.40 150 53 021510 IRN2021M16CF IR 16IR 21 20 15.80 12.40 150 53 021512 IR2024R16CF IR 16IR 24 20 18.50 13 200 67 IL = Left Hand Tooling is available on request | CF = Chatter Free IR 90° CF Spare Parts Item Description Insert Screw Insert Key Anvil Anvil Screw EDP EDP EDP EDP IRN1206H06CF 015563 S6T 018487 T6 - - - - IRN1608H08CF 015564 S8T 018487 T6 - - - - IRN1610H08CF IRN1013H11CF 015558 SN2T 015554 T8F - - - - IRN1616M11CF IRN1618M16CF 015560 SA3T 023379 T10F - - - - IRN2021M16CF IR2024R16CF 015560 SA3T 023379 T10F 015389 YI3 015551 SY3T C244 www.kennametal.com
