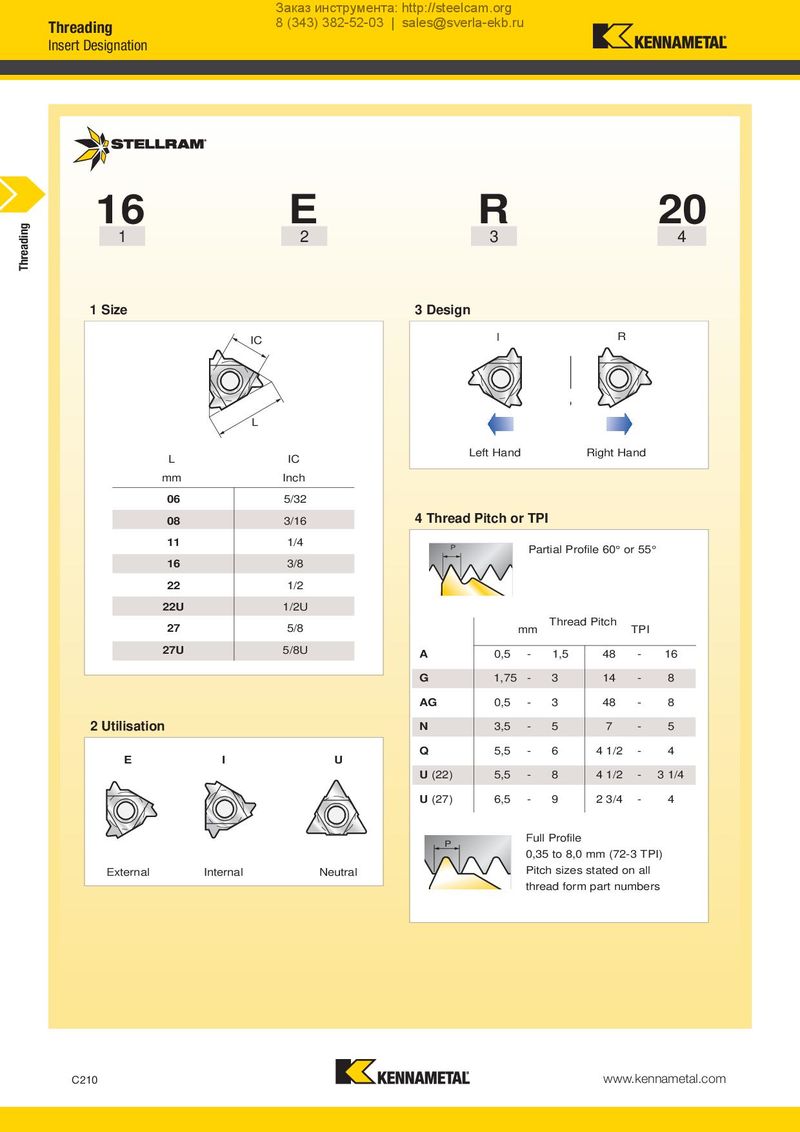

Заказ инструмента: http://steelcam.org Threading 8 (343) 382-52-03 | sales@sverla-ekb.ru Insert Designation Threading 16 E R 20 1 2 3 4 1 Size 3 Design IC l R L L IC Left Hand Right Hand mm Inch 06 5/32 08 3/16 4 Thread Pitch or TPI 11 1/4 P Partial Profile 60° or 55° 16 3/8 22 1/2 22U 1/2U 27 5/8 mm Thread Pitch TPI 27U 5/8U A 0,5 - 1,5 48 - 16 G 1,75 - 3 14 - 8 AG 0,5 - 3 48 - 8 2 Utilisation N 3,5 - 5 7 - 5 E I U Q 5,5 - 6 4 1/2 - 4 U (22) 5,5 - 8 4 1/2 - 3 1/4 U (27) 6,5 - 9 2 3/4 - 4 P Full Profile 0,35 to 8,0 mm (72-3 TPI) External Internal Neutral Pitch sizes stated on all thread form part numbers C210 www.kennametal.com
