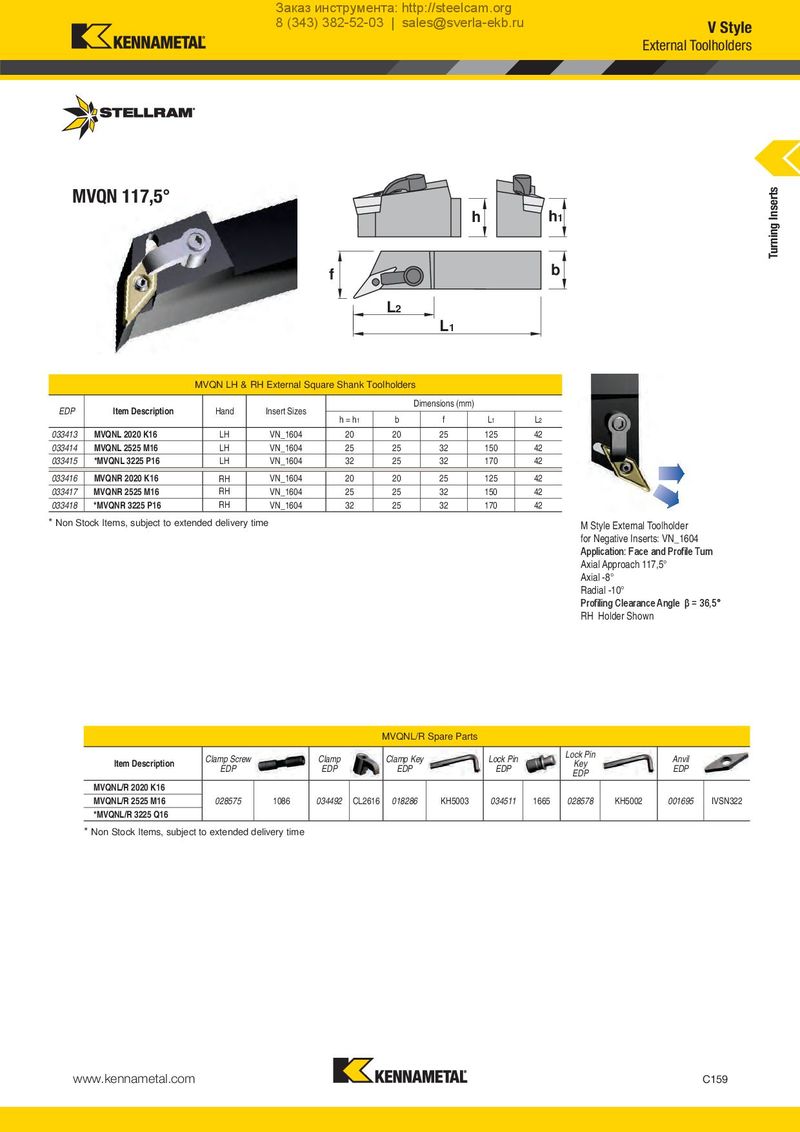

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru V Style External Toolholders MVQN 117,5° Turning Inserts h h1 f b L2 L1 MVQN LH & RH External Square Shank Toolholders EDP Item Description Hand Insert Sizes Dimensions (mm) h = h1 b f L1 L2 033413 MVQNL 2020 K16 LH VN_1604 20 20 25 125 42 033414 MVQNL 2525 M16 LH VN_1604 25 25 32 150 42 033415 *MVQNL 3225 P16 LH VN_1604 32 25 32 170 42 033416 MVQNR 2020 K16 RH VN_1604 20 20 25 125 42 033417 MVQNR 2525 M16 RH VN_1604 25 25 32 150 42 033418 *MVQNR 3225 P16 RH VN_1604 32 25 32 170 42 * Non Stock Items, subject to extended delivery time M Style External Toolholder for Negative Inserts: VN_1604 Application: Face and Profile Turn Axial Approach 117,5° Axial -8° Radial -10° Profiling Clearance Angle β = 36,5° RH Holder Shown MVQNL/R Spare Parts Clamp Screw Clamp Clamp Key Lock Pin Lock Pin Anvil Item Description EDP EDP EDP EDP Key EDP EDP MVQNL/R 2020 K16 MVQNL/R 2525 M16 028575 1086 034492 CL2616 018286 KH5003 034511 1665 028578 KH5002 001695 IVSN322 *MVQNL/R 3225 Q16 * Non Stock Items, subject to extended delivery time www.kennametal.com C159
