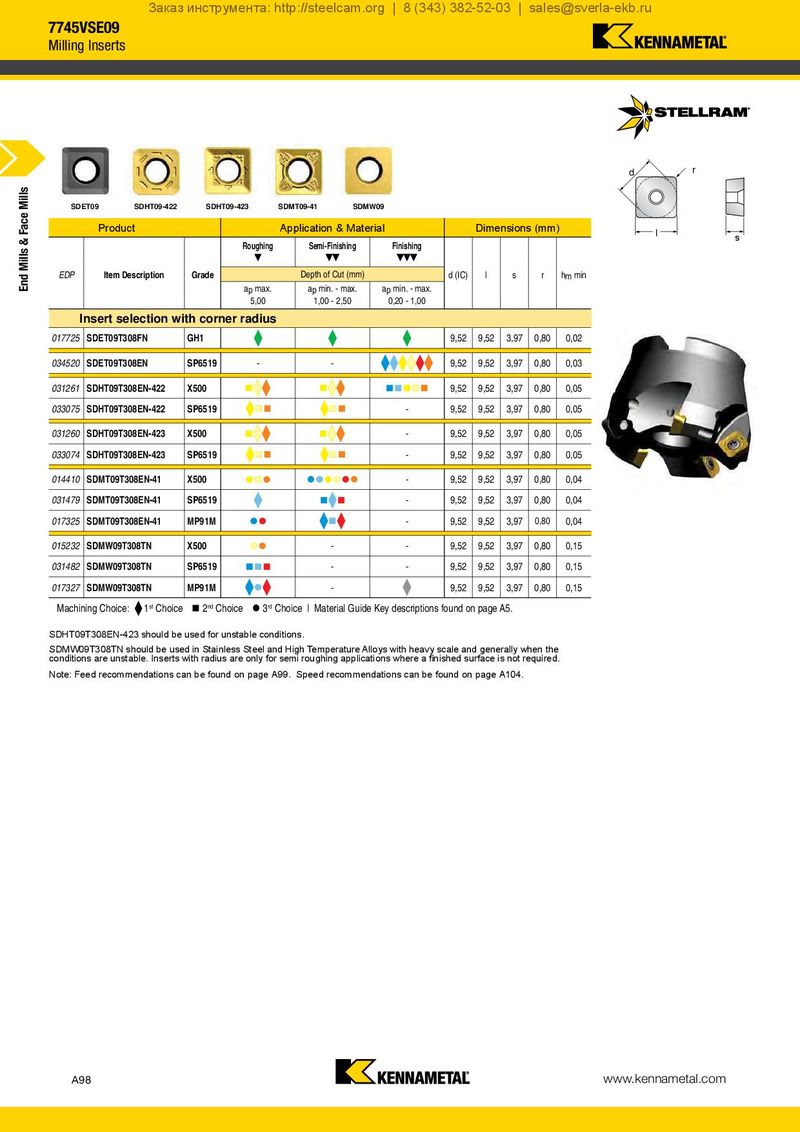

Каталог Stellram фрез со сменными пластинами - страница 99
Навигация
Каталог Stellram твердосплавные цельные фрезы
Каталог Stellram токарный инструмент
Каталог Stellram системы со сменными пластинами для фрезерования с высокими подачами
Каталог Stellram высокопроизводительные фрезерные системы
Каталог Stellram материалы и сплавы
| d r | |||||||||||
| SDE | T09 SDHT09-422 | SDHT0 | 9-423 SD | MT09-41 SDM | W09 | ||||||
| Product | A | pplication & Mate | rial | Dime | nsion | s (mm | ) | l s | |||
| Roughing | Semi-Finishing | Finishing | |||||||||
| EDP | Item Description | Grade | Depth of Cut(mm) | d (IC) | l | s | r | hm min | |||
| ap max. 5,00 | ap min. - max. 1,00 - 2,50 | ap min. - max. 0,20 - 1,00 | |||||||||
| I | nsert selection w | ith corne | r radius | ||||||||
| 017725 | SDET09T308FN | GH1 | 9,52 | 9,52 | 3,97 | 0,80 | 0,02 | ||||
| 034520 | SDET09T308EN | SP6519 | - | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,03 | ||
| 031261 | SDHT09T308EN-422 | X500 | 9,52 | 9,52 | 3,97 | 0,80 | 0,05 | ||||
| 033075 | SDHT09T308EN-422 | SP6519 | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,05 | |||
| 031260 | SDHT09T308EN-423 | X500 | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,05 | |||
| 033074 | SDHT09T308EN-423 | SP6519 | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,05 | |||
| 014410 | SDMT09T308EN-41 | X500 | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,04 | |||
| 031479 | SDMT09T308EN-41 | SP6519 | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,04 | |||
| 017325 | SDMT09T308EN-41 | MP91M | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,04 | |||
| 015232 | SDMW09T308TN | X500 | - | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,15 | ||
| 031482 | SDMW09T308TN | SP6519 | - | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,15 | ||
| 017327 | SDMW09T308TN | MP91M | - | 9,52 | 9,52 | 3,97 | 0,80 | 0,15 |
Machining Choice: 1st Choice 2nd Choice 3rd Choice | Material Guide Key descriptions found on page A5. SDHT09T308EN-423 should be used for unstable conditions. SDMW09T308TN should be used in Stainless Steel and High Temperature Alloys with heavy scale and generally when the conditions are unstable. Inserts with radius are only for semi roughing applications where a finished surface is not required. Note: Feed recommendations can be found on page A99. Speed recommendations can be found on page A104.
