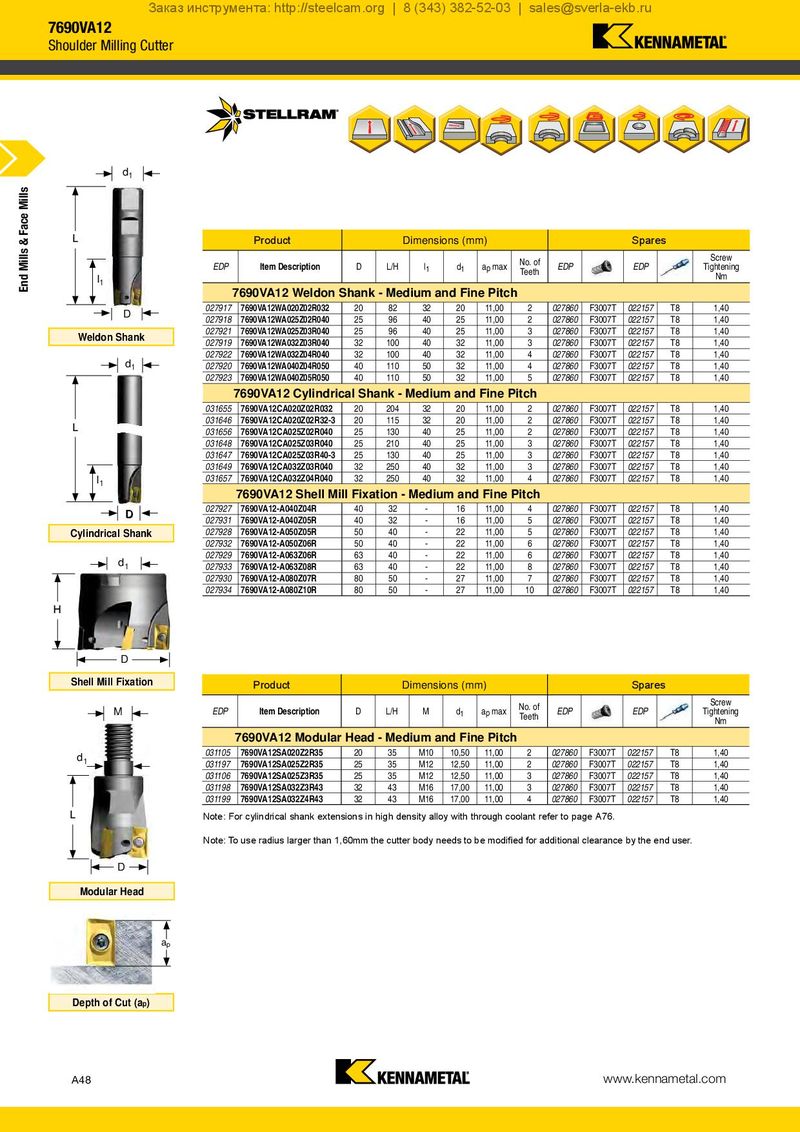

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 7690VA12 Shoulder Milling Cutter d1 End Mills & Face Mills L Product Dimensions (mm) Spares No. of Screw EDP Item Description D L/H l1 d1 ap max Teeth EDP EDP Tightening I1 Nm 7690VA12 Weldon Shank - Medium and Fine Pitch D 027917 7690VA12WA020Z02R032 20 82 32 20 11,00 2 027860 F3007T 022157 T8 1,40 027918 7690VA12WA025Z02R040 25 96 40 25 11,00 2 027860 F3007T 022157 T8 1,40 Weldon Shank 027921 7690VA12WA025Z03R040 25 96 40 25 11,00 3 027860 F3007T 022157 T8 1,40 027919 7690VA12WA032Z03R040 32 100 40 32 11,00 3 027860 F3007T 022157 T8 1,40 d1 027922 7690VA12WA032Z04R040 32 100 40 32 11,00 4 027860 F3007T 022157 T8 1,40 027920 7690VA12WA040Z04R050 40 110 50 32 11,00 4 027860 F3007T 022157 T8 1,40 027923 7690VA12WA040Z05R050 40 110 50 32 11,00 5 027860 F3007T 022157 T8 1,40 7690VA12 Cylindrical Shank - Medium and Fine Pitch 031655 7690VA12CA020Z02R032 20 204 32 20 11,00 2 027860 F3007T 022157 T8 1,40 L 031646 7690VA12CA020Z02R32-3 20 115 32 20 11,00 2 027860 F3007T 022157 T8 1,40 031656 7690VA12CA025Z02R040 25 130 40 25 11,00 2 027860 F3007T 022157 T8 1,40 031648 7690VA12CA025Z03R040 25 210 40 25 11,00 3 027860 F3007T 022157 T8 1,40 031647 7690VA12CA025Z03R40-3 25 130 40 25 11,00 3 027860 F3007T 022157 T8 1,40 031649 7690VA12CA032Z03R040 32 250 40 32 11,00 3 027860 F3007T 022157 T8 1,40 I1 031657 7690VA12CA032Z04R040 32 250 40 32 11,00 4 027860 F3007T 022157 T8 1,40 7690VA12 Shell Mill Fixation - Medium and Fine Pitch D 027927 7690VA12-A040Z04R 40 32 - 16 11,00 4 027860 F3007T 022157 T8 1,40 027931 7690VA12-A040Z05R 40 32 - 16 11,00 5 027860 F3007T 022157 T8 1,40 Cylindrical Shank 027928 7690VA12-A050Z05R 50 40 - 22 11,00 5 027860 F3007T 022157 T8 1,40 027932 7690VA12-A050Z06R 50 40 - 22 11,00 6 027860 F3007T 022157 T8 1,40 d1 027929 7690VA12-A063Z06R 63 40 - 22 11,00 6 027860 F3007T 022157 T8 1,40 027933 7690VA12-A063Z08R 63 40 - 22 11,00 8 027860 F3007T 022157 T8 1,40 027930 7690VA12-A080Z07R 80 50 - 27 11,00 7 027860 F3007T 022157 T8 1,40 027934 7690VA12-A080Z10R 80 50 - 27 11,00 10 027860 F3007T 022157 T8 1,40 H D Shell Mill Fixation Product Dimensions (mm) Spares No. of Screw M EDP Item Description D L/H M d1 ap max Teeth EDP EDP Tightening Nm 7690VA12 Modular Head - Medium and Fine Pitch d1 031105 7690VA12SA020Z2R35 20 35 M10 10,50 11,00 2 027860 F3007T 022157 T8 1,40 031197 7690VA12SA025Z2R35 25 35 M12 12,50 11,00 2 027860 F3007T 022157 T8 1,40 031106 7690VA12SA025Z3R35 25 35 M12 12,50 11,00 3 027860 F3007T 022157 T8 1,40 031198 7690VA12SA032Z3R43 32 43 M16 17,00 11,00 3 027860 F3007T 022157 T8 1,40 031199 7690VA12SA032Z4R43 32 43 M16 17,00 11,00 4 027860 F3007T 022157 T8 1,40 L Note: For cylindrical shank extensions in high density alloy with through coolant refer to page A76. Note: To use radius larger than 1,60mm the cutter body needs to be modified for additional clearance by the end user. D Modular Head ap Depth of Cut (ap) A48 www.kennametal.com
