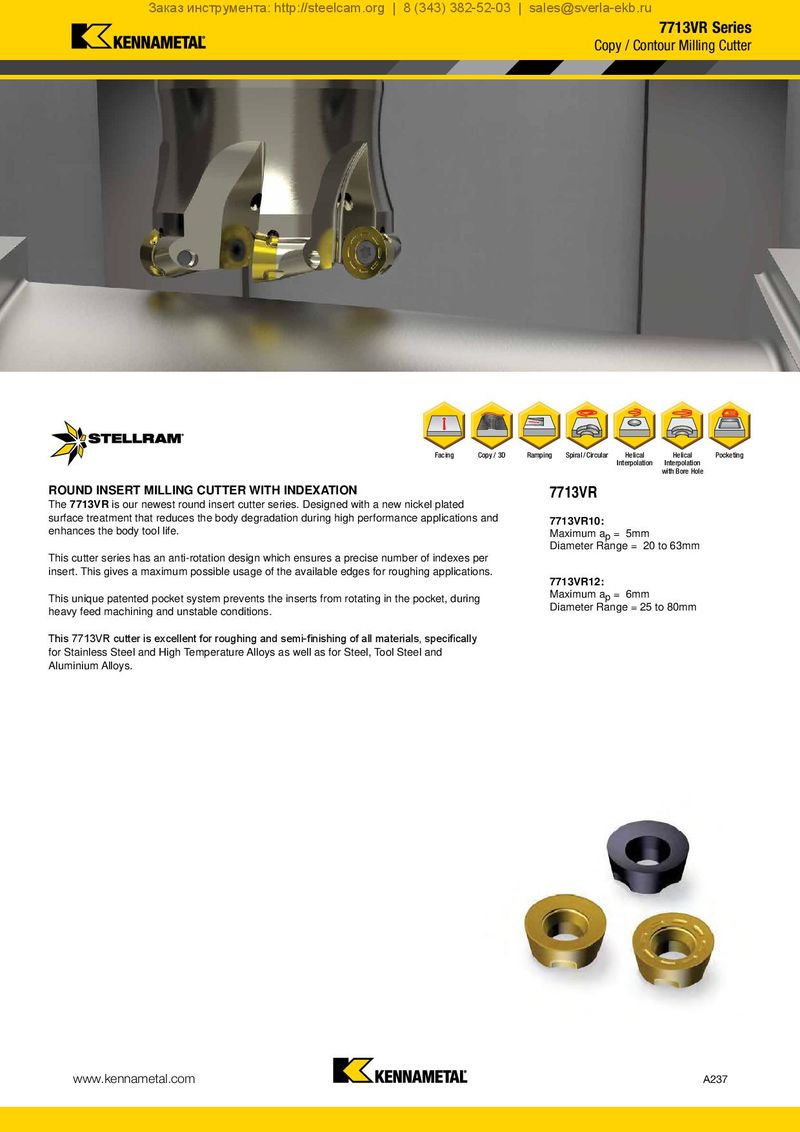

7713VR Series

Facing Copy / 3D

ROUND INSERT MILLING CUTTER WITH INDEXATION The 7713VR is our newest round insert cutter series. Designed with a new nickel plated surface treatment that reduces the body degradation during high performance applications and enhances the body tool life. This cutter series has an anti-rotation design which ensures a precise number of indexes per insert. This gives a maximum possible usage of the available edges for roughing applications. This unique patented pocket system prevents the inserts from rotating in the pocket, during heavy feed machining and unstable conditions. This 7713VR cutter is excellent for roughing and semi-finishing of all materials, specifically for Stainless Steel and High Temperature Alloys as well as for Steel, Tool Steel and Aluminium Alloys.

Ramping Spiral / Circular Helical Helical Pocketing

Interpolation Interpolation with Bore Hole 7713VR 7713VR10:

Maximum a = 5mm p Diameter Range = 20 to 63mm

7713VR12: Maximum ap = 6mm Diameter Range = 25 to 80mm
