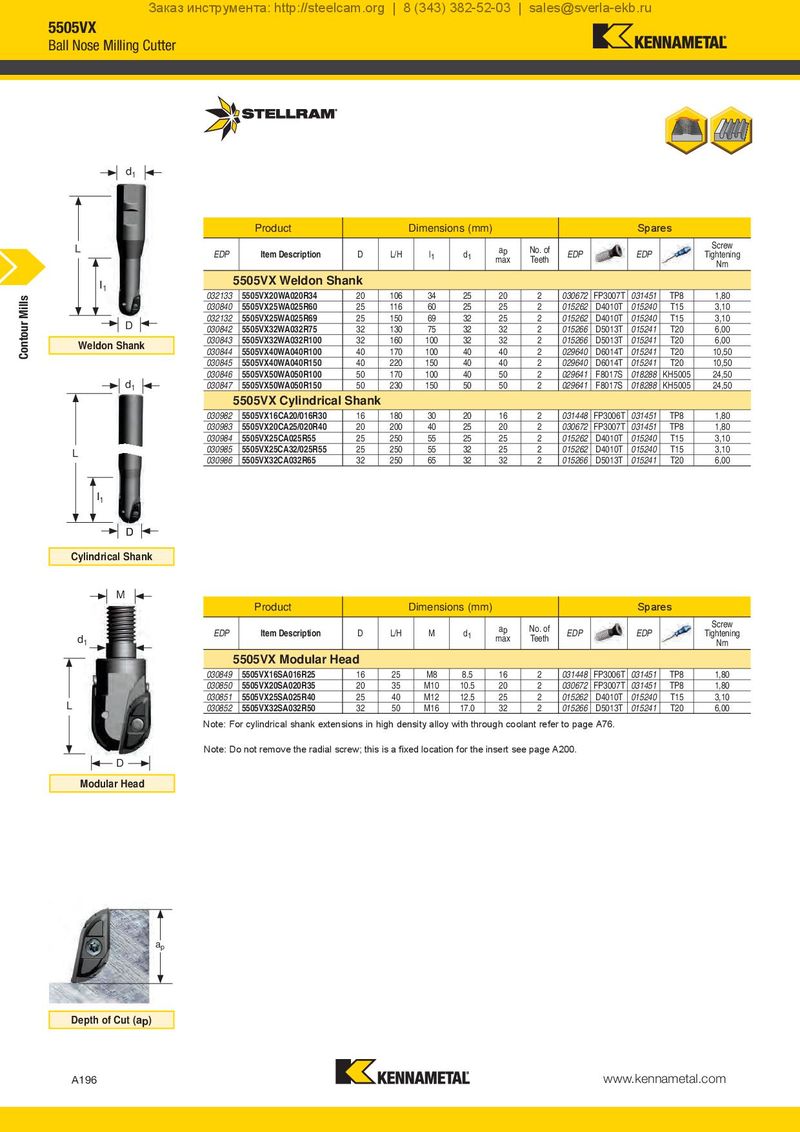

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 5505VX Ball Nose Milling Cutter d1 Product Dimensions (mm) Spares L ap No. of Screw EDP Item Description D L/H l1 d1 max Teeth EDP EDP Tightening Nm I1 5505VX Weldon Shank Contour Mills 032133 5505VX20WA020R34 20 106 34 25 20 2 030672 FP3007T 031451 TP8 1,80 030840 5505VX25WA025R60 25 116 60 25 25 2 015262 D4010T 015240 T15 3,10 D 032132 5505VX25WA025R69 25 150 69 32 25 2 015262 D4010T 015240 T15 3,10 030842 5505VX32WA032R75 32 130 75 32 32 2 015266 D5013T 015241 T20 6,00 Weldon Shank 030843 5505VX32WA032R100 32 160 100 32 32 2 015266 D5013T 015241 T20 6,00 030844 5505VX40WA040R100 40 170 100 40 40 2 029640 D6014T 015241 T20 10,50 030845 5505VX40WA040R150 40 220 150 40 40 2 029640 D6014T 015241 T20 10,50 030846 5505VX50WA050R100 50 170 100 40 50 2 029641 F8017S 018288 KH5005 24,50 d1 030847 5505VX50WA050R150 50 230 150 50 50 2 029641 F8017S 018288 KH5005 24,50 5505VX Cylindrical Shank 030982 5505VX16CA20/016R30 16 180 30 20 16 2 031448 FP3006T 031451 TP8 1,80 030983 5505VX20CA25/020R40 20 200 40 25 20 2 030672 FP3007T 031451 TP8 1,80 030984 5505VX25CA025R55 25 250 55 25 25 2 015262 D4010T 015240 T15 3,10 L 030985 5505VX25CA32/025R55 25 250 55 32 25 2 015262 D4010T 015240 T15 3,10 030986 5505VX32CA032R65 32 250 65 32 32 2 015266 D5013T 015241 T20 6,00 I1 D Cylindrical Shank M Product Dimensions (mm) Spares ap No. of Screw d1 EDP Item Description D L/H M d1 max Teeth EDP EDP Tightening Nm 5505VX Modular Head 030849 5505VX16SA016R25 16 25 M8 8.5 16 2 031448 FP3006T 031451 TP8 1,80 030850 5505VX20SA020R35 20 35 M10 10.5 20 2 030672 FP3007T 031451 TP8 1,80 L 030851 5505VX25SA025R40 25 40 M12 12.5 25 2 015262 D4010T 015240 T15 3,10 030852 5505VX32SA032R50 32 50 M16 17.0 32 2 015266 D5013T 015241 T20 6,00 Note: For cylindrical shank extensions in high density alloy with through coolant refer to page A76. Note: Do not remove the radial screw; this is a fixed location for the insert see page A200. D Modular Head ap Depth of Cut (ap) A196 www.kennametal.com
