Каталог Stellram фрез со сменными пластинами - страница 168

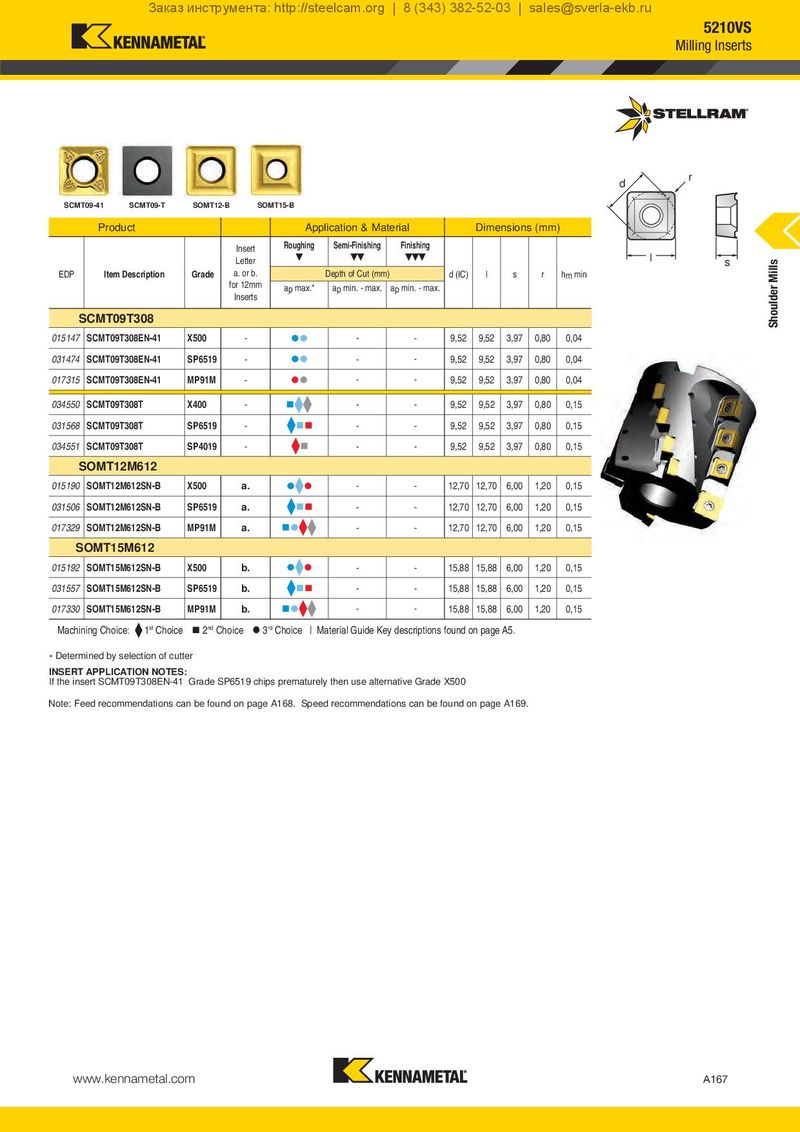

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 5210VS Milling Inserts d r SCMT09-41 SCMT09-T SOMT12-B SOMT15-B Product Application & Material Dimensions (mm) Insert Roughing Semi-Finishing Finishing Letter l s Shoulder Mills EDP Item Description Grade a. or b. Depth of Cut (mm) d (IC) l s r hm min for 12mm ap max.* ap min. - max. ap min. - max. Inserts SCMT09T308 015147 SCMT09T308EN-41 X500 - - - 9,52 9,52 3,97 0,80 0,04 031474 SCMT09T308EN-41 SP6519 - - - 9,52 9,52 3,97 0,80 0,04 017315 SCMT09T308EN-41 MP91M - - - 9,52 9,52 3,97 0,80 0,04 034550 SCMT09T308T X400 - - - 9,52 9,52 3,97 0,80 0,15 031568 SCMT09T308T SP6519 - - - 9,52 9,52 3,97 0,80 0,15 034551 SCMT09T308T SP4019 - - - 9,52 9,52 3,97 0,80 0,15 SOMT12M612 015190 SOMT12M612SN-B X500 a. - - 12,70 12,70 6,00 1,20 0,15 031506 SOMT12M612SN-B SP6519 a. - - 12,70 12,70 6,00 1,20 0,15 017329 SOMT12M612SN-B MP91M a. - - 12,70 12,70 6,00 1,20 0,15 SOMT15M612 015192 SOMT15M612SN-B X500 b. - - 15,88 15,88 6,00 1,20 0,15 031557 SOMT15M612SN-B SP6519 b. - - 15,88 15,88 6,00 1,20 0,15 017330 SOMT15M612SN-B MP91M b. - - 15,88 15,88 6,00 1,20 0,15 Machining Choice: 1st Choice 2nd Choice 3rd Choice | Material Guide Key descriptions found on page A5. * Determined by selection of cutter INSERT APPLICATION NOTES: If the insert SCMT09T308EN-41 Grade SP6519 chips prematurely then use alternative Grade X500 Note: Feed recommendations can be found on page A168. Speed recommendations can be found on page A169. www.kennametal.com A167
