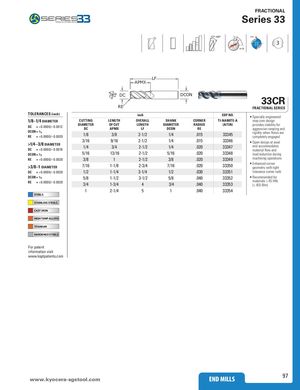

FRACTIONAL Series 33 32°–48° POS 3 ≠ LF APMX DC DCON RE 33CR FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Specially engineered 1/8–1/4 DIAMETER CUTTING LENGTH OVERALL SHANK CORNER TI-NAMITE-A step core design DIAMETER OF CUT LENGTH DIAMETER RADIUS (AlTiN) provides stability for DC = +0.0000/–0.0012 DC APMX LF DCON RE aggressive ramping and DCON = h 6 rigidity when flutes are RE = +0.0000/–0.0020 1/8 3/8 2-1/2 1/4 .015 33345 completely engaged 3/16 9/16 2-1/2 1/4 .015 33346 • Open design at axial >1/4–3/8 DIAMETER end accommodates DC = +0.0000/–0.0016 1/4 3/4 2-1/2 1/4 .020 33347 material flow and DCON = h 6 5/16 13/16 2-1/2 5/16 .020 33348 load reduction during RE = +0.0000/–0.0020 3/8 1 2-1/2 3/8 .020 33349 machining operations • Enhanced corner >3/8–1 DIAMETER 7/16 1-1/8 2-3/4 7/16 .020 33350 geometry with tight DC = +0.0000/–0.0020 1/2 1-1/4 3-1/4 1/2 .030 33351 tolerance corner radii DCON = h 6 5/8 1-1/2 3-1/2 5/8 .040 33352 • Recommended for RE = +0.0000/–0.0020 materials ≤ 45 HRc 3/4 1-3/4 4 3/4 .040 33353 (≤ 420 Bhn) 1 2-1/4 5 1 .040 33354 STEELS STAINLESS STEELS CAST IRON HIGH TEMP ALLOYS TITANIUM HARDENED STEELS For patent information visit www.ksptpatents.com 97 END MILLS www.kyocera-sgstool.com END MILLS
