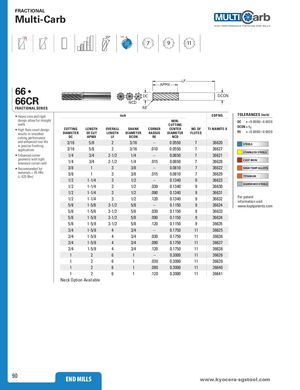

FRACTIONAL Multi-Carb 35° POS 7 9 11 LF APMX 66 • DC DCON 66CR NCD RE FRACTIONAL SERIES • Heavy core and rigid inch EDP NO. TOLERANCES (inch) design allow for straight NON- DC = +0.0000/–0.0020 walls CUTTING DCON = h 6 • High flute count design CUTTING LENGTH OVERALL SHANK CORNER CENTER NO. OF TI-NAMITE-X DIAMETER OF CUT LENGTH DIAMETER RADIUS DIAMETER FLUTES RE = +0.0000/–0.0020 results in smoother cutting performance DC APMX LF DCON RE NCD and enhanced tool life 3/16 5/8 2 3/16 – 0.0550 7 36620 STEELS in precise finishing applications 3/16 5/8 2 3/16 .010 0.0550 7 36627 STAINLESS STEELS • Enhanced corner 1/4 3/4 2-1/2 1/4 – 0.0650 7 36621 geometry with tight tolerance corner radii 1/4 3/4 2-1/2 1/4 .015 0.0650 7 36628 CAST IRON • Recommended for 3/8 1 3 3/8 – 0.0810 7 36622 HIGH TEMP ALLOYS materials ≤ 45 HRc 3/8 1 3 3/8 .015 0.0810 7 36629 (≤ 420 Bhn) TITANIUM 1/2 1-1/4 3 1/2 – 0.1340 9 36623 HARDENED STEELS 1/2 1-1/4 3 1/2 .030 0.1340 9 36630 1/2 1-1/4 3 1/2 .090 0.1340 9 36631 For patent 1/2 1-1/4 3 1/2 .120 0.1340 9 36632 information visit 5/8 1-5/8 3-1/2 5/8 – 0.1150 9 36624 www.ksptpatents.com 5/8 1-5/8 3-1/2 5/8 .030 0.1150 9 36633 5/8 1-5/8 3-1/2 5/8 .090 0.1150 9 36634 5/8 1-5/8 3-1/2 5/8 .120 0.1150 9 36635 3/4 1-5/8 4 3/4 – 0.1750 11 36625 3/4 1-5/8 4 3/4 .030 0.1750 11 36636 3/4 1-5/8 4 3/4 .090 0.1750 11 36637 3/4 1-5/8 4 3/4 .120 0.1750 11 36638 1 2 6 1 – 0.3000 11 36626 1 2 6 1 .030 0.3000 11 36639 1 2 6 1 .090 0.3000 11 36640 1 2 6 1 .120 0.3000 11 36641 Neck Option Available 90 END MILLS END MILLS www.kyocera-sgstool.com
