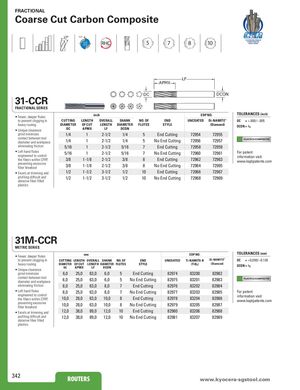

Общий каталог SGS 2021 - страница 342

FRACTIONAL Coarse Cut Carbon Composite 15° POS CCR CARBON-FIBER RHC 5 7 8 10 COMPOSITE ROUTERS LF APMX DC DCON 31-CCR FRACTIONAL SERIES inch EDP NO. TOLERANCES (inch) • Fewer, deeper flutes to prevent clogging in CUTTING LENGTH OVERALL SHANK NO. OF END UNCOATED Di-NAMITE ® DC = +.000/–.005 heavy routing DIAMETER OF CUT LENGTH DIAMETER FLUTES STYLE (Diamond) DCON = h 6 • Unique clearance DC APMX LF DCON grind minimizes 1/4 1 2-1/2 1/4 5 End Cutting 72954 72955 contact between tool diameter and workpiece 1/4 1 2-1/2 1/4 5 No End Cutting 72956 72957 PLASTICS/COMPOSITES eliminating friction 5/16 1 2-1/2 5/16 7 End Cutting 72958 72959 • Left hand flutes 5/16 1 2-1/2 5/16 7 No End Cutting 72960 72961 For patent engineered to control information visit the fibers within CFRP, 3/8 1-1/8 2-1/2 3/8 8 End Cutting 72962 72963 www.ksptpatents.com preventing excessive fiber breakout 3/8 1-1/8 2-1/2 3/8 8 No End Cutting 72964 72965 • Excels at trimming and 1/2 1-1/2 3-1/2 1/2 10 End Cutting 72966 72967 profiling difficult and 1/2 1-1/2 3-1/2 1/2 10 No End Cutting 72968 72969 abrasive fiber filled plastics 31M-CCR METRIC SERIES mm EDP NO. TOLERANCES (mm) • Fewer, deeper flutes to prevent clogging in CUTTING LENGTH OVERALL SHANK NO. OF END UNCOATED Ti-NAMITE-B Di-NAMITE® DC = +0,000/–0,130 heavy routing DIAMETER OF CUT LENGTH DIAMETER FLUTES STYLE (TiB2) (Diamond) DC APMX LF DCON DCON = h 6 • Unique clearance grind minimizes 6,0 25,0 63,0 6,0 5 End Cutting 82974 83200 82982 contact between tool diameter and workpiece 6,0 25,0 63,0 6,0 5 No End Cutting 82975 83201 82983 PLASTICS/COMPOSITES eliminating friction 8,0 25,0 63,0 8,0 7 End Cutting 82976 83202 82984 • Left hand flutes 8,0 25,0 63,0 8,0 7 No End Cutting 82977 83203 82985 For patent engineered to control information visit the fibers within CFRP, 10,0 28,0 63,0 10,0 8 End Cutting 82978 83204 82986 www.ksptpatents.com preventing excessive fiber breakout 10,0 28,0 63,0 10,0 8 No End Cutting 82979 83205 82987 • Excels at trimming and 12,0 38,0 89,0 12,0 10 End Cutting 82980 83206 82988 profiling difficult and 12,0 38,0 89,0 12,0 10 No End Cutting 82981 83207 82989 abrasive fiber filled plastics 342 ROUTERS ROUTERS www.kyocera-sgstool.com
