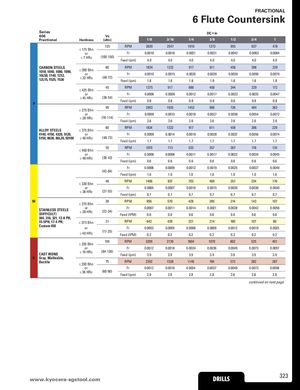

Общий каталог SGS 2021 - страница 323

FRACTIONAL 6 Flute Countersink Series DC • in 606 Vc Fractional Hardness (sfm) 1/8 3/16 1/4 3/8 1/2 3/4 1 125 RPM 3820 2547 1910 1273 955 637 478 ≤ 175 Bhn or Fr 0.0010 0.0016 0.0021 0.0031 0.0042 0.0063 0.0084 ≤ 7 HRc (100-150) Feed (ipm) 4.0 4.0 4.0 4.0 4.0 4.0 4.0 CARBON STEELS 60 RPM 1834 1222 917 611 458 306 229 1018, 1040, 1080, 1090, ≤ 300 Bhn 10L50, 1140, 1212, or Fr 0.0010 0.0015 0.0020 0.0029 0.0039 0.0059 0.0079 ≤ 32 HRc (48-72) 12L15, 1525, 1536 Feed (ipm) 1.8 1.8 1.8 1.8 1.8 1.8 1.8 45 RPM 1375 917 688 458 344 229 172 ≤ 425 Bhn or Fr 0.0006 0.0009 0.0012 0.0017 0.0023 0.0035 0.0047 ≤ 45 HRc (36-54) Feed (ipm) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 P 95 RPM 2903 1935 1452 968 726 484 363 ≤ 275 Bhn or Fr 0.0009 0.0013 0.0018 0.0027 0.0036 0.0054 0.0072 ≤ 28 HRc (76-114) Feed (ipm) 2.6 2.6 2.6 2.6 2.6 2.6 2.6 60 RPM 1834 1222 917 611 458 306 229 ALLOY STEELS ≤ 375 Bhn 4140, 4150, 4320, 5120, or Fr 0.0009 0.0014 0.0019 0.0028 0.0037 0.0056 0.0074 5150, 8630, 86L20, 50100 ≤ 40 HRc (48-72) Feed (ipm) 1.7 1.7 1.7 1.7 1.7 1.7 1.7 35 RPM 1070 713 535 357 267 178 134 ≤ 450 Bhn or Fr 0.0006 0.0008 0.0011 0.0017 0.0022 0.0034 0.0045 ≤ 48 HRc (28-42) Feed (ipm) 0.6 0.6 0.6 0.6 0.6 0.6 0.6 Fr 0.0006 0.0009 0.0012 0.0019 0.0025 0.0037 0.0049 (42-64) Feed (ipm) 1.0 1.0 1.0 1.0 1.0 1.0 1.0 46 RPM 1406 937 703 469 351 234 176 ≤ 330 Bhn or Fr 0.0005 0.0007 0.0010 0.0015 0.0020 0.0030 0.0040 ≤ 36 HRc (37-55) Feed (ipm) 0.7 0.7 0.7 0.7 0.7 0.7 0.7 M 28 RPM 856 570 428 285 214 143 107 ≤ 275 Bhn or Fr 0.0007 0.0011 0.0014 0.0021 0.0028 0.0042 0.0056 STAINLESS STEELS (22-34) ≤ 28 HRc (DIFFICULT) Feed (IPM) 0.6 0.6 0.6 0.6 0.6 0.6 0.6 304, 316, 321, 13-8 PH, 15-5PH, 17-4 PH, ≤ 375 Bhn 21 RPM 642 428 321 214 160 107 80 Custom 450 or Fr 0.0003 0.0005 0.0006 0.0009 0.0012 0.0019 0.0025 (17-25) ≤ 40 HRc Feed (IPM) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 105 RPM 3209 2139 1604 1070 802 535 401 ≤ 220 Bhn or Fr 0.0012 0.0018 0.0024 0.0036 0.0049 0.0073 0.0097 ≤ 19 HRc (84-126) CAST IRONS Feed (ipm) 3.9 3.9 3.9 3.9 3.9 3.9 3.9 K Gray, Malleable, Ductile 75 RPM 2292 1528 1146 764 573 382 287 ≤ 330 Bhn or Fr 0.0012 0.0018 0.0024 0.0037 0.0049 0.0073 0.0098 ≤ 36 HRc (60-90) Feed (ipm) 2.8 2.8 2.8 2.8 2.8 2.8 2.8 continued on next page 323 DRILLS www.kyocera-sgstool.com DRILLS
