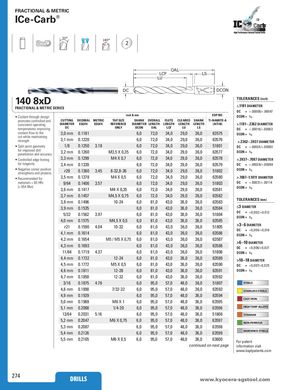

Общий каталог SGS 2021 - страница 274

FRACTIONAL & METRIC ICe-Carb® ® 30° 140° 2 OAL LCF LS LU DC DCON 140 8xD TOLERANCES (inch) ≤.1181 DIAMETER FRACTIONAL & METRIC SERIES DC = +.00008/+.00047 inch & mm EDP NO. DCON = h 6 • Coolant through design promotes controlled and CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-A consistent operating DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (AlTiN) >.1181–.2362 DIAMETER temperatures improving DC ONLY DCON OAL LCF LU LS DC = +.00016/+.00063 coolant flow to the 3,0 mm 0.1181 6,0 72,0 34,0 29,0 36,0 63575 DCON = h 6 cut while maintaining strength 3,1 mm 0.1220 6,0 72,0 34,0 29,0 36,0 63576 >.2362–.3937 DIAMETER • Split point geometry 1/8 0.1250 3.18 6,0 72,0 34,0 29,0 36,0 51801 DC = +.00024/+.00083 for improved drill penetration and accuracy 3,2 mm 0.1260 M3,5 X 0,35 6,0 72,0 34,0 29,0 36,0 63577 DCON = h 6 • Controlled edge honing 3,3 mm 0.1299 M4 X 0,7 6,0 72,0 34,0 29,0 36,0 63578 >.3937–.7087 DIAMETER for longevity 3,4 mm 0.1339 6,0 72,0 34,0 29,0 36,0 63579 DC = +.00028/+.00098 • Negative corner position DCON = h 6 #29 0.1360 3.45 8-32,8-36 6,0 72,0 34,0 29,0 36,0 51802 strengthens and protects • Recommended for 3,5 mm 0.1378 M4 X 0,5 6,0 72,0 34,0 29,0 36,0 63580 >.7087–1.1811 DIAMETER materials ≤ 60 HRc 9/64 0.1406 3.57 6,0 72,0 34,0 29,0 36,0 51803 DC = +.00031/+.00114 (≤ 654 Bhn) DCON = h 6 3,6 mm 0.1417 M4 X 0,35 6,0 72,0 34,0 29,0 36,0 63581 3,7 mm 0.1457 M4,5 X 0,75 6,0 72,0 34,0 29,0 36,0 63582 TOLERANCES (mm) 3,8 mm 0.1496 10-24 6,0 81,0 43,0 36,0 36,0 63583 3,9 mm 0.1535 6,0 81,0 43,0 36,0 36,0 63584 ≤3 DIAMETER DC = +0,002/+0,012 5/32 0.1562 3.97 6,0 81,0 43,0 36,0 36,0 51804 DCON = h 6 4,0 mm 0.1575 M4,5 X 0,5 6,0 81,0 43,0 36,0 36,0 63585 >3–6 DIAMETER #21 0.1590 4.04 10-32 6,0 81,0 43,0 36,0 36,0 51805 DC = +0,004/+0,016 4,1 mm 0.1614 6,0 81,0 43,0 36,0 36,0 63586 DCON = h 6 4,2 mm 0.1654 M5 / M5 X 0,75 6,0 81,0 43,0 36,0 36,0 63587 >6–10 DIAMETER 4,3 mm 0.1693 6,0 81,0 43,0 36,0 36,0 63588 DC = +0,006/+0,021 11/64 0.1719 4.37 6,0 81,0 43,0 36,0 36,0 51806 DCON = h 6 4,4 mm 0.1732 12-24 6,0 81,0 43,0 36,0 36,0 63589 >10–18 DIAMETER 4,5 mm 0.1772 M5 X 0,5 6,0 81,0 43,0 36,0 36,0 63590 DC = +0,007/+0,025 4,6 mm 0.1811 12-28 6,0 81,0 43,0 36,0 36,0 63591 DCON = h 6 4,7 mm 0.1850 12-32 6,0 81,0 43,0 36,0 36,0 63592 3/16 0.1875 4.76 6,0 95,0 57,0 48,0 36,0 51807 STEELS 4,8 mm 0.1890 7/32-32 6,0 95,0 57,0 48,0 36,0 63593 STAINLESS STEELS 4,9 mm 0.1929 6,0 95,0 57,0 48,0 36,0 63594 CAST IRON 5,0 mm 0.1969 M6 X 1 6,0 95,0 57,0 48,0 36,0 63595 5,1 mm 0.2008 1/4-20 6,0 95,0 57,0 48,0 36,0 63596 HIGH TEMP ALLOYS 13/64 0.2031 5.16 6,0 95,0 57,0 48,0 36,0 51808 TITANIUM 5,2 mm 0.2047 M6 X 0,75 6,0 95,0 57,0 48,0 36,0 63597 NON-FERROUS 5,3 mm 0.2087 6,0 95,0 57,0 48,0 36,0 63598 HARDENED STEELS 5,4 mm 0.2126 6,0 95,0 57,0 48,0 36,0 63599 5,5 mm 0.2165 M6 X 0,5 6,0 95,0 57,0 48,0 36,0 63600 For patent continued on next page information visit www.ksptpatents.com 274 DRILLS DRILLS www.kyocera-sgstool.com
