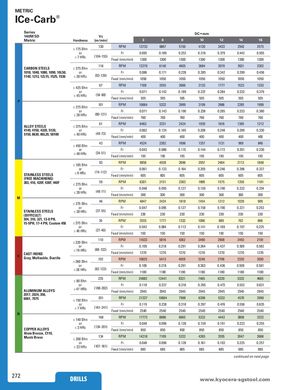

METRIC ICe-Carb® Series DC • mm 140M 5D Vc Metric Hardness (m/min) 3 6 8 10 12 14 16 130 RPM 13733 6867 5150 4120 3433 2943 2575 ≤ 175 Bhn or Fr 0.095 0.189 0.252 0.316 0.379 0.442 0.505 ≤ 7 HRc (104-155) Feed (mm/min) 1300 1300 1300 1300 1300 1300 1300 116 RPM 12279 6140 4605 3684 3070 2631 2302 CARBON STEELS ≤ 275 Bhn 1018, 1040, 1080, 1090, 10L50, or Fr 0.086 0.171 0.228 0.285 0.342 0.399 0.456 1140, 1212, 12L15, 1525, 1536 ≤ 28 HRc (93-139) Feed (mm/min) 1050 1050 1050 1050 1050 1050 1050 67 RPM 7109 3555 2666 2133 1777 1523 1333 ≤ 425 Bhn or Fr 0.071 0.142 0.189 0.237 0.284 0.332 0.379 ≤ 45 HRc (54-80) Feed (mm/min) 505 505 505 505 505 505 505 P 101 RPM 10664 5332 3999 3199 2666 2285 1999 ≤ 275 Bhn or Fr 0.071 0.143 0.190 0.238 0.285 0.333 0.380 ≤ 28 HRc (80-121) Feed (mm/min) 760 760 760 760 760 760 760 61 RPM 6463 3231 2424 1939 1616 1385 1212 ALLOY STEELS ≤ 375 Bhn 4140, 4150, 4320, 5120, or Fr 0.062 0.124 0.165 0.206 0.248 0.289 0.330 5150, 8630, 86L20, 50100 ≤ 40 HRc (49-73) Feed (mm/min) 400 400 400 400 400 400 400 43 RPM 4524 2262 1696 1357 1131 969 848 ≤ 450 Bhn or Fr 0.043 0.086 0.115 0.144 0.172 0.201 0.230 ≤ 48 HRc (34-51) Feed (mm/min) 195 195 195 195 195 195 195 93 RPM 9856 4928 3696 2957 2464 2112 1848 ≤ 185 Bhn or Fr 0.061 0.123 0.164 0.205 0.246 0.286 0.327 ≤ 9 HRc (74-112) STAINLESS STEELS Feed (mm/min) 605 605 605 605 605 605 605 (FREE MACHINING) 303, 416, 420F, 430F, 440F 59 RPM 6301 3151 2363 1890 1575 1350 1181 ≤ 275 Bhn or Fr 0.048 0.095 0.127 0.159 0.190 0.222 0.254 ≤ 28 HRc (48-71) Feed (mm/min) 300 300 300 300 300 300 300 M 46 RPM 4847 2424 1818 1454 1212 1039 909 ≤ 275 Bhn or Fr 0.047 0.095 0.127 0.158 0.190 0.221 0.253 STAINLESS STEELS ≤ 28 HRc (37-55) (DIFFICULT) Feed (mm/min) 230 230 230 230 230 230 230 304, 316, 321, 13-8 PH, 34 RPM 3555 1777 1333 1066 889 762 666 15-5PH, 17-4 PH, Custom 450 ≤ 375 Bhn or Fr 0.042 0.084 0.113 0.141 0.169 0.197 0.225 ≤ 40 HRc (27-40) Feed (mm/min) 150 150 150 150 150 150 150 110 RPM 11633 5816 4362 3490 2908 2493 2181 ≤ 220 Bhn or Fr 0.109 0.218 0.291 0.364 0.437 0.509 0.582 ≤ 19 HRc (88-132) CAST IRONS Feed (mm/min) 1270 1270 1270 1270 1270 1270 1270 K Gray, Malleable, Ductile 102 RPM 10825 5413 4059 3248 2706 2320 2030 ≤ 260 Bhn or Fr 0.109 0.218 0.291 0.363 0.436 0.509 0.581 ≤ 26 HRc (82-123) Feed (mm/min) 1180 1180 1180 1180 1180 1180 1180 235 RPM 24882 12441 9331 7465 6220 5332 4665 ≤ 80 Bhn or Fr 0.118 0.237 0.316 0.395 0.473 0.552 0.631 ≤ 47 HRb (188-282) ALUMINUM ALLOYS Feed (mm/min) 2945 2945 2945 2945 2945 2945 2945 2017, 2024, 356, 6061, 7075 201 RPM 21327 10664 7998 6398 5332 4570 3999 ≤ 150 Bhn or Fr 0.119 0.238 0.318 0.397 0.476 0.556 0.635 ≤ 7 HRc (161-241) Feed (mm/min) 2540 2540 2540 2540 2540 2540 2540 N 168 RPM 17773 8886 6665 5332 4443 3808 3332 ≤ 140 Bhn or Fr 0.048 0.096 0.128 0.159 0.191 0.223 0.255 ≤ 3 HRc (134-201) COPPER ALLOYS Feed (mm/min) 850 850 850 850 850 850 850 Alum Bronze, C110, Muntz Brass 134 RPM 14218 7109 5332 4265 3555 3047 2666 ≤ 200 Bhn or Fr 0.048 0.096 0.128 0.161 0.193 0.225 0.257 ≤ 23 HRc (107-161) Feed (mm/min) 685 685 685 685 685 685 685 continued on next page 272 DRILLS DRILLS www.kyocera-sgstool.com
