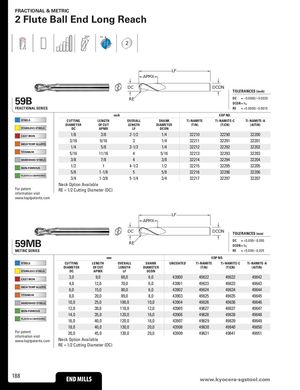

FRACTIONAL & METRIC 2 Flute Ball End Long Reach 25° POS 2 LF APMX DC DCON TOLERANCES (inch) 59B RE DC = –0.0000/–0.0020DCON = h6 FRACTIONAL SERIES RE = +0.0000/–0.0010 inch EDP NO. STEELS CUTTING LENGTH OVERALL SHANK Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) STAINLESS STEELS DC APMX LF DCON CAST IRON 1/8 3/8 2-1/2 1/4 32210 32290 32200 3/16 9/16 3 1/4 32211 32291 32201 HIGH TEMP ALLOYS 1/4 5/8 3-1/2 1/4 32212 32292 32202 TITANIUM 5/16 11/16 4 5/16 32213 32293 32203 HARDENED STEELS 3/8 7/8 4 3/8 32214 32294 32204 NON-FERROUS 1/2 1 4-1/2 1/2 32215 32295 32205 5/8 1-1/8 5 5/8 32216 32296 32206 PLASTICS/COMPOSITES 3/4 1-3/8 5-1/4 3/4 32217 32297 32207 Neck Option Available For patent RE = 1/2 Cutting Diameter (DC) information visit www.ksptpatents.com LF APMX DC DCON TOLERANCES (mm) 59MB RE DC = +0,000/–0,050DCON = h6 METRIC SERIES RE = +0,000/–0,025 mm EDP NO. STEELS CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) STAINLESS STEELS DC APMX LF DCON CAST IRON 3,0 9,0 60,0 6,0 43900 49622 49632 49642 4,0 12,0 70,0 6,0 43901 49623 49633 49643 HIGH TEMP ALLOYS 6,0 15,0 80,0 6,0 43902 49624 49634 49644 TITANIUM 8,0 20,0 89,0 8,0 43903 49625 49635 49645 HARDENED STEELS 10,0 25,0 100,0 10,0 43904 49626 49636 49646 12,0 30,0 110,0 12,0 43905 49627 49637 49647 NON-FERROUS 14,0 35,0 120,0 16,0 43906 49628 49638 49648 PLASTICS/COMPOSITES 16,0 40,0 120,0 16,0 43907 49629 49639 49649 18,0 40,0 130,0 20,0 43908 49630 49640 49650 For patent 20,0 45,0 130,0 20,0 43909 49631 49641 49651 information visit www.ksptpatents.com Neck Option Available RE = 1/2 Cutting Diameter (DC) 188 END MILLS wwENwD.kMyIoLcLSera-sgstool.com
