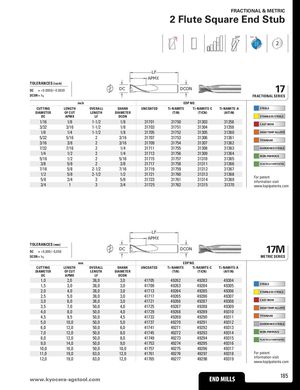

FRACTIONAL & METRIC 2 Flute Square End Stub 30° POS 2 LF APMX TOLERANCES (inch) DC = +0.0000/–0.0020 DCON = h 6 DC DCON 17 FRACTIONAL SERIES inch EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A STEELS DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON STAINLESS STEELS 1/16 1/8 1-1/2 1/8 31701 31750 31303 31358 CAST IRON 3/32 3/16 1-1/2 1/8 31703 31751 31304 31359 1/8 1/4 1-1/2 1/8 31705 31752 31305 31360 HIGH TEMP ALLOYS 5/32 5/16 2 3/16 31707 31753 31306 31361 TITANIUM 3/16 3/8 2 3/16 31709 31754 31307 31362 7/32 7/16 2 1/4 31711 31755 31308 31363 HARDENED STEELS 1/4 1/2 2 1/4 31713 31756 31309 31364 NON-FERROUS 5/16 1/2 2 5/16 31715 31757 31310 31365 3/8 5/8 2 3/8 31717 31758 31311 31366 PLASTICS/COMPOSITES 7/16 5/8 2-1/2 7/16 31719 31759 31312 31367 1/2 5/8 2-1/2 1/2 31721 31760 31313 31368 For patent 5/8 3/4 3 5/8 31723 31761 31314 31369 information visit 3/4 1 3 3/4 31725 31762 31315 31370 www.ksptpatents.com LF APMX TOLERANCES (mm) DC = +0,000/–0,050 DC DCON 17M METRIC SERIES DCON = h 6 mm EDP NO. CUTTING LENGTH OVERALL SHANK UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER (TiN) (TiCN) (AlTiN) DC APMX LF DCON 1,0 2,0 38,0 3,0 41705 49262 49283 49304 STEELS 1,5 3,0 38,0 3,0 41709 49263 49284 49305 2,0 4,0 38,0 3,0 41713 49264 49285 49306 STAINLESS STEELS 2,5 5,0 38,0 3,0 41717 49265 49286 49307 3,0 6,0 38,0 3,0 41721 49266 49287 49308 CAST IRON 3,5 7,0 50,0 4,0 41725 49267 49288 49309 HIGH TEMP ALLOYS 4,0 8,0 50,0 4,0 41729 49268 49289 49310 4,5 9,5 50,0 4,5 41733 49269 49290 49311 TITANIUM 5,0 10,0 50,0 5,0 41737 49270 49291 49312 HARDENED STEELS 6,0 12,0 50,0 6,0 41741 49271 49292 49313 7,0 12,0 50,0 8,0 41745 49272 49293 49314 NON-FERROUS 8,0 12,0 50,0 8,0 41749 49273 49294 49315 PLASTICS/COMPOSITES 9,0 14,0 50,0 9,0 41753 49274 49295 49316 10,0 16,0 50,0 10,0 41757 49275 49296 49317 11,0 19,0 63,0 12,0 41761 49276 49297 49318 For patent 12,0 19,0 63,0 12,0 41765 49277 49298 49319 information visit www.ksptpatents.com 185 END MILLS www.kyocera-sgstool.com END MILLS
