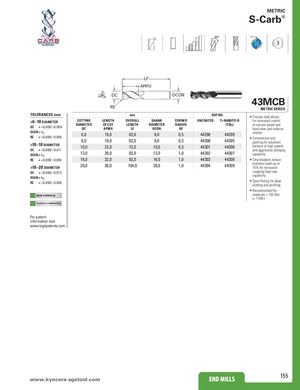

METRIC S-Carb® 38° POS ® 3 LF APMX DC DCON RE 43MCB METRIC SERIES TOLERANCES (mm) mm EDP NO. • Circular land allows >6–10 DIAMETER CUTTING LENGTH OVERALL SHANK CORNER UNCOATED Ti-NAMITE-B for increased control DIAMETER OF CUT LENGTH DIAMETER RADIUS (TiB2) at various speed and DC = +0,000/–0,009 DC APMX LF DCON RE feed rates and reduces DCON = h 6 chatter 6,0 19,0 63,0 6,0 0,5 44298 44299 RE = +0,000/–0,050 • Symmetrical end 8,0 19,0 63,0 8,0 0,3 44300 44305 gashing for excellent >10–18 DIAMETER balance at high speeds 10,0 22,0 72,0 10,0 0,3 44301 44306 DC = +0,000/–0,011 and aggressive plunging DCON = h 6 12,0 26,0 83,0 12,0 1,0 44302 44307 capability RE = +0,000/–0,050 16,0 32,0 92,0 16,0 1,0 44303 44308 • Chip breakers reduce machine loads up to >18–20 DIAMETER 20,0 38,0 104,0 20,0 1,0 44304 44309 15% for increased DC = +0,000/–0,013 roughing feed rate capability DCON = h 6 RE = +0,000/–0,050 • Open fluting for deep slotting and profiling • Recommended for NON-FERROUS materials ≤ 150 Bhn (≤ 7 HRc) PLASTICS/COMPOSITES For patent information visit www.ksptpatents.com 155 END MILLS www.kyocera-sgstool.com END MILLS
