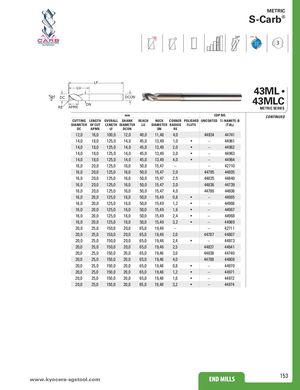

Общий каталог SGS 2021 - страница 153

METRIC S-Carb® 38° POS ® 3 LF LU 43ML • DC DCONDN 43MLC RE APMX METRIC SERIES mm EDP NO. CONTINUED CUTTING LENGTH OVERALL SHANK REACH NECK CORNER POLISHED UNCOATED Ti-NAMITE-B DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER RADIUS FLUTE (TiB2) DC APMX LF DCON DN RE 12,0 16,0 100,0 12,0 40,0 11,48 4,0 44834 44741 14,0 18,0 125,0 14,0 45,0 13,49 1,0 • – 44961 14,0 18,0 125,0 14,0 45,0 13,49 2,0 • – 44962 14,0 18,0 125,0 14,0 45,0 13,49 3,0 • – 44963 14,0 18,0 125,0 14,0 45,0 13,49 4,0 • – 44964 16,0 20,0 125,0 16,0 50,0 15,47 – – 42710 16,0 20,0 125,0 16,0 50,0 15,47 2,0 44785 44805 16,0 20,0 125,0 16,0 50,0 15,47 2,5 44835 44840 16,0 20,0 125,0 16,0 50,0 15,47 3,0 44836 44739 16,0 20,0 125,0 16,0 50,0 15,47 4,0 44786 44806 16,0 20,0 125,0 16,0 50,0 15,49 0,8 • – 44965 16,0 20,0 125,0 16,0 50,0 15,49 1,2 • – 44966 16,0 20,0 125,0 16,0 50,0 15,49 1,6 • – 44967 16,0 20,0 125,0 16,0 50,0 15,49 2,4 • – 44968 16,0 20,0 125,0 16,0 50,0 15,49 3,2 • – 44969 20,0 25,0 150,0 20,0 65,0 19,46 – – 42711 20,0 25,0 150,0 20,0 65,0 19,46 2,0 44787 44807 20,0 25,0 150,0 20,0 65,0 19,46 2,4 • – 44973 20,0 25,0 150,0 20,0 65,0 19,46 2,5 44837 44841 20,0 25,0 150,0 20,0 65,0 19,46 3,0 44838 44740 20,0 25,0 150,0 20,0 65,0 19,46 4,0 44788 44808 20,0 25,0 150,0 20,0 65,0 19,48 0,8 • – 44970 20,0 25,0 150,0 20,0 65,0 19,48 1,2 • – 44971 20,0 25,0 150,0 20,0 65,0 19,48 1,6 • – 44972 20,0 25,0 150,0 20,0 65,0 19,48 3,2 • – 44974 www.kyocerEaN-DsgMstILoLoSl.com END MILLS 153
