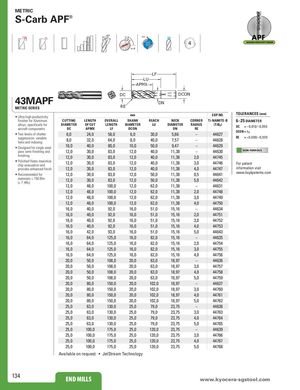

METRIC S-Carb APF® 41° POS 38° 4 ADVANCED PRODUCTIVITY FINISHER ≠ LF LU APMX DC DCON 43MAPF RE DN METRIC SERIES mm EDP NO. TOLERANCES (mm) • Ultra high-productivity finisher for Aluminum CUTTING LENGTH OVERALL SHANK REACH NECK CORNER Ti-NAMITE-B 6–25 DIAMETER alloys, specifically for DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER RADIUS (TiB2) DC = –0,010/–0,050 aircraft components DC APMX LF DCON DN RE DCON = h 6 • Two levels of chatter 6,0 24,0 58,0 6,0 30,0 5,66 – 44627 suppression: variable RE = +0,000/–0,030 helix and indexing 8,0 32,0 64,0 8,0 40,0 7,57 – 44628 • Designed for single axial 10,0 40,0 80,0 10,0 50,0 9,47 – 44629 pass semi-finishing and 12,0 30,0 83,0 12,0 40,0 11,38 – 44630 NON-FERROUS finishing 12,0 30,0 83,0 12,0 40,0 11,38 2,0 44745 • Polished flutes maximize chip evacuation and 12,0 30,0 83,0 12,0 40,0 11,38 3,0 44746 For patent provides enhanced finish 12,0 30,0 83,0 12,0 40,0 11,38 4,0 44747 information visit www.ksptpatents.com • Recommended for 12,0 30,0 83,0 12,0 50,0 11,38 0,5 44641 materials ≤ 150 Bhn 12,0 30,0 83,0 12,0 50,0 11,38 5,0 44642 (≤ 7 HRc) 12,0 48,0 100,0 12,0 62,0 11,38 – 44631 12,0 48,0 100,0 12,0 62,0 11,38 2,0 44748 12,0 48,0 100,0 12,0 62,0 11,38 3,0 44749 12,0 48,0 100,0 12,0 62,0 11,38 4,0 44750 16,0 40,0 92,0 16,0 51,0 15,16 – 44634 16,0 40,0 92,0 16,0 51,0 15,16 2,0 44751 16,0 40,0 92,0 16,0 51,0 15,16 3,0 44752 16,0 40,0 92,0 16,0 51,0 15,16 4,0 44753 16,0 42,0 93,0 16,0 51,0 15,16 5,0 44643 16,0 64,0 125,0 16,0 82,0 15,16 – 44635 16,0 64,0 125,0 16,0 82,0 15,16 2,0 44754 16,0 64,0 125,0 16,0 82,0 15,16 3,0 44755 16,0 64,0 125,0 16,0 82,0 15,16 4,0 44756 20,0 50,0 108,0 20,0 63,0 18,97 – 44636 20,0 50,0 108,0 20,0 63,0 18,97 3,0 44757 20,0 50,0 108,0 20,0 63,0 18,97 4,0 44758 20,0 50,0 108,0 20,0 63,0 18,97 5,0 44759 20,0 80,0 150,0 20,0 102,0 18,97 – 44637 20,0 80,0 150,0 20,0 102,0 18,97 3,0 44760 20,0 80,0 150,0 20,0 102,0 18,97 4,0 44761 20,0 80,0 150,0 20,0 102,0 18,97 5,0 44762 25,0 63,0 130,0 25,0 79,0 23,75 – 44638 25,0 63,0 130,0 25,0 79,0 23,75 3,0 44763 25,0 63,0 130,0 25,0 79,0 23,75 4,0 44764 25,0 63,0 130,0 25,0 79,0 23,75 5,0 44765 25,0 100,0 175,0 25,0 120,0 23,75 – 44639 25,0 100,0 175,0 25,0 120,0 23,75 3,0 44766 25,0 100,0 175,0 25,0 120,0 23,75 4,0 44767 25,0 100,0 175,0 25,0 120,0 23,75 5,0 44768 Available on request: • JetStream Technology 134 END MILLS END MILLS www.kyocera-sgstool.com
