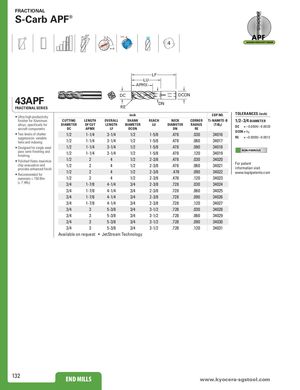

FRACTIONAL S-Carb APF® 41° POS 38° 4 ADVANCED PRODUCTIVITY FINISHER ≠ LF LU APMX DC DCON 43APF RE DN FRACTIONAL SERIES inch EDP NO. TOLERANCES (inch) • Ultra high-productivity finisher for Aluminum CUTTING LENGTH OVERALL SHANK REACH NECK CORNER Ti-NAMITE-B 1/2–3/4 DIAMETER alloys, specifically for DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER RADIUS (TiB2) DC = –0.0004/–0.0020 aircraft components DC APMX LF DCON DN RE DCON = h 6 • Two levels of chatter 1/2 1-1/4 3-1/4 1/2 1-5/8 .478 .030 34016 suppression: variable RE = +0.0000/–0.0012 helix and indexing 1/2 1-1/4 3-1/4 1/2 1-5/8 .478 .060 34017 • Designed for single axial 1/2 1-1/4 3-1/4 1/2 1-5/8 .478 .090 34018 pass semi-finishing and NON-FERROUS finishing 1/2 1-1/4 3-1/4 1/2 1-5/8 .478 .120 34019 • Polished flutes maximize 1/2 2 4 1/2 2-3/8 .478 .030 34020 For patent chip evacuation and 1/2 2 4 1/2 2-3/8 .478 .060 34021 information visit provides enhanced finish 1/2 2 4 1/2 2-3/8 .478 .090 34022 www.ksptpatents.com • Recommended for materials ≤ 150 Bhn 1/2 2 4 1/2 2-3/8 .478 .120 34023 (≤ 7 HRc) 3/4 1-7/8 4-1/4 3/4 2-3/8 .728 .030 34024 3/4 1-7/8 4-1/4 3/4 2-3/8 .728 .060 34025 3/4 1-7/8 4-1/4 3/4 2-3/8 .728 .090 34026 3/4 1-7/8 4-1/4 3/4 2-3/8 .728 .120 34027 3/4 3 5-3/8 3/4 3-1/2 .728 .030 34028 3/4 3 5-3/8 3/4 3-1/2 .728 .060 34029 3/4 3 5-3/8 3/4 3-1/2 .728 .090 34030 3/4 3 5-3/8 3/4 3-1/2 .728 .120 34031 Available on request: • JetStream Technology 132 END MILLS END MILLS www.kyocera-sgstool.com
