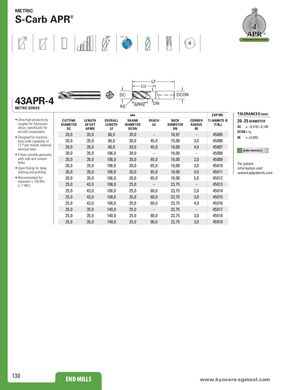

Общий каталог SGS 2021 - страница 130

METRIC S-Carb APR® 38° POS ADVANCED PRODUCTIVITY ROUGHER ADVANCED PRODUCTIVITY ROUGHER 4 LF LU DC DCON 43APR-4 RE APMX DN METRIC SERIES mm EDP NO. TOLERANCES (mm) • Ultra high-productivity CUTTING LENGTH OVERALL SHANK REACH NECK CORNER Ti-NAMITE-B 20–25 DIAMETER rougher for Aluminum DIAMETER OF CUT LENGTH DIAMETER LU DIAMETER RADIUS (TiB2) alloys, specifically for DC = –0,010/–0,100 DC APMX LF DCON DN RE aircraft components DCON = h 6 20,0 35,0 86,0 20,0 – 18,97 – 45005 • Designed for machine RE = ±0,050 tools with capability of 20,0 35,0 86,0 20,0 45,0 19,00 3,0 45006 12 l³ per minute material removal rates 20,0 35,0 86,0 20,0 45,0 19,00 4,0 45007 NON-FERROUS • 4 flute variable geometry 20,0 35,0 106,0 20,0 – 19,00 – 45008 with side exit coolant 20,0 35,0 106,0 20,0 65,0 19,00 2,0 45009 holes For patent 20,0 35,0 106,0 20,0 65,0 19,00 3,0 45010 • Open fluting for deep information visit slotting and profiling 20,0 35,0 106,0 20,0 65,0 19,00 4,0 45011 www.ksptpatents.com • Recommended for 20,0 35,0 106,0 20,0 65,0 19,00 5,0 45012 materials ≤ 150 Bhn (≤ 7 HRc) 25,0 43,0 108,0 25,0 – 23,75 – 45013 25,0 43,0 108,0 25,0 60,0 23,75 2,0 45014 25,0 43,0 108,0 25,0 60,0 23,75 3,0 45015 25,0 43,0 108,0 25,0 60,0 23,75 4,0 45016 25,0 35,0 140,0 25,0 – 23,75 – 45017 25,0 35,0 140,0 25,0 80,0 23,75 3,0 45018 25,0 35,0 140,0 25,0 90,0 23,75 3,0 45019 130 END MILLS END MILLS www.kyocera-sgstool.com
