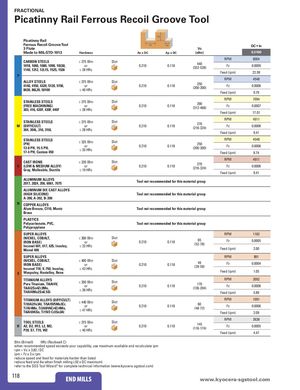

Общий каталог SGS 2021 - страница 118

FRACTIONAL Picatinny Rail Ferrous Recoil Groove Tool Ap Picatinny Rail Ferrous Recoil Groove Tool Ae Ae DC • in 3 Flute Vc Made to MIL-STD-1913 Hardness Ae x DC Ap x DC (sfm) 0.2100 RPM 8004 CARBON STEELS ≤ 275 Bhn Slot 440 1018, 1040, 1080, 1090, 10L50, or 0.210 0.118 Fz 0.0009 (352-528) 1140, 1212, 12L15, 1525, 1536 ≤ 28 HRc Feed (ipm) 22.99 P RPM 4548 ALLOY STEELS ≤ 375 Bhn Slot 250 4140, 4150, 4320, 5120, 5150, or 0.210 0.118 Fz 0.0006 (200-300) 8630, 86L20, 50100 ≤ 40 HRc Feed (ipm) 9.79 RPM 7094 STAINLESS STEELS ≤ 275 Bhn Slot 390 (FREE MACHINING) or 0.210 0.118 Fz 0.0007 (312-468) 303, 416, 420F, 430F, 440F ≤ 28 HRc Feed (ipm) 17.01 RPM 4911 STAINLESS STEELS ≤ 275 Bhn Slot 270 M (DIFFICULT) or 0.210 0.118 Fz 0.0006 (216-324) 304, 304L, 316, 316L ≤ 28 HRc Feed (ipm) 9.41 STAINLESS STEELS RPM 4548 ≤ 325 Bhn Slot (PH) 250 or 0.210 0.118 Fz 0.0006 13-8 PH, 15-5 PH, (200-300) ≤ 35 HRc 17-4 PH, Custom 450 Feed (ipm) 8.74 RPM 4911 CAST IRONS ≤ 220 Bhn Slot 270 K (LOW & MEDIUM ALLOY) or 0.210 0.118 Fz 0.0006 (216-324) Gray, Malleable, Ductile ≤ 19 HRc Feed (ipm) 9.41 ALUMINUM ALLOYS Tool not recommended for this material group 2017, 2024, 356, 6061, 7075 ALUMINUM DIE CAST ALLOYS (HIGH SILICONE) Tool not recommended for this material group A-390, A-392, B-390 N COPPER ALLOYS Alum Bronze, C110, Muntz Tool not recommended for this material group Brass PLASTICS Polycarbonate, PVC, Tool not recommended for this material group Polypropylene SUPER ALLOYS RPM 1182 (NICKEL, COBALT, ≤ 300 Bhn Slot 65 Fz 0.0005 IRON BASE) or 0.210 0.118 (52-78) Inconel 601, 617, 625, Incoloy, ≤ 32 HRc Monel 400 Feed (ipm) 2.00 SUPER ALLOYS RPM 891 (NICKEL, COBALT, ≤ 400 Bhn Slot 49 Fz 0.0004 IRON BASE) or 0.210 0.118 (39-59) Inconel 718, X-750, Incoloy, ≤ 43 HRc Waspaloy, Hastelloy, Rene Feed (ipm) 1.05 S TITANIUM ALLOYS RPM 3092 ≤ 350 Bhn Slot Pure Titanium, Ti6Al4V, 170 or 0.210 0.118 Fz 0.0006 Ti6Al2Sn4Zr2Mo, (136-204) ≤ 38 HRc Ti4Al4Mo2Sn0.5Si Feed (ipm) 5.89 TITANIUM ALLOYS (DIFFICULT) RPM 1091 ≤ 440 Bhn Slot Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr, 60 or 0.210 0.118 Fz 0.0006 Ti7Al4Mo, Ti3Al8V6Cr4Zr4Mo, (48-72) ≤ 47 HRc Ti6Al6V6Sn, Ti15V3 Cr3Sn3Al Feed (ipm) 2.09 RPM 2638 TOOL STEELS ≤ 375 Bhn Slot 145 H A2, D2, H13, L2, M2, or 0.210 0.118 Fz 0.0005 (116-174) P20, S7, T15, W2 ≤ 40 HRc Feed (ipm) 4.47 Bhn (Brinell)   HRc (Rockwell C) when recommended speed exceeds your capability, use maximum available and recalculate ipm rpm = Vc x 3.82 / DC ipm = Fz x 3 x rpm reduce speed and feed for materials harder than listed reduce feed and Ae when finish milling (.02 x DC maximum) refer to the SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com) 118 END MILLS END MILLS www.kyocera-sgstool.com
