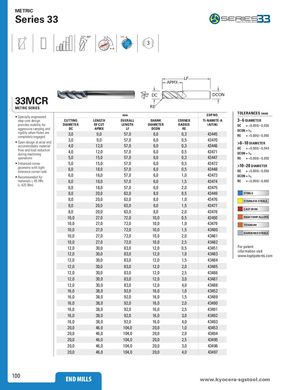

METRIC Series 33 32°–48° POS 3 ≠ LF APMX DC DCON 33MCR RE METRIC SERIES mm EDP NO. TOLERANCES (mm) • Specially engineered step core design CUTTING LENGTH OVERALL SHANK CORNER TI-NAMITE-A 3–6 DIAMETER provides stability for DIAMETER OF CUT LENGTH DIAMETER RADIUS (AlTiN) DC = +0,000/–0,030 aggressive ramping and DC APMX LF DCON RE DCON = h 6 rigidity when flutes are 3,0 9,0 57,0 6,0 0,3 43445 completely engaged RE = +0,000/–0,050 • Open design at axial end 3,0 9,0 57,0 6,0 0,5 43470 >6–10 DIAMETER accommodates material 4,0 12,0 57,0 6,0 0,3 43446 DC = +0,000/–0,040 flow and load reduction 4,0 12,0 57,0 6,0 0,5 43471 during machining DCON = h 6 operations 5,0 15,0 57,0 6,0 0,3 43447 RE = +0,000/–0,050 • Enhanced corner 5,0 15,0 57,0 6,0 0,5 43472 geometry with tight >10–20 DIAMETER tolerance corner radii 6,0 18,0 57,0 6,0 0,5 43448 DC = +0,000/–0,050 • Recommended for 6,0 18,0 57,0 6,0 1,0 43473 DCON = h 6 materials ≤ 45 HRc 6,0 18,0 57,0 6,0 1,5 43474 RE = +0,000/–0,050 (≤ 420 Bhn) 6,0 18,0 57,0 6,0 2,0 43475 8,0 20,0 63,0 8,0 0,5 43449 STEELS 8,0 20,0 63,0 8,0 1,0 43476 STAINLESS STEELS 8,0 20,0 63,0 8,0 1,5 43477 CAST IRON 8,0 20,0 63,0 8,0 2,0 43478 10,0 27,0 72,0 10,0 0,5 43450 HIGH TEMP ALLOYS 10,0 27,0 72,0 10,0 1,0 43479 TITANIUM 10,0 27,0 72,0 10,0 1,5 43480 HARDENED STEELS 10,0 27,0 72,0 10,0 2,0 43481 10,0 27,0 72,0 10,0 2,5 43482 12,0 30,0 83,0 12,0 0,5 43451 For patent information visit 12,0 30,0 83,0 12,0 1,0 43483 www.ksptpatents.com 12,0 30,0 83,0 12,0 1,5 43484 12,0 30,0 83,0 12,0 2,0 43485 12,0 30,0 83,0 12,0 2,5 43486 12,0 30,0 83,0 12,0 3,0 43487 12,0 30,0 83,0 12,0 4,0 43488 16,0 38,0 92,0 16,0 1,0 43452 16,0 38,0 92,0 16,0 1,5 43489 16,0 38,0 92,0 16,0 2,0 43490 16,0 38,0 92,0 16,0 2,5 43491 16,0 38,0 92,0 16,0 3,0 43492 16,0 38,0 92,0 16,0 4,0 43493 20,0 46,0 104,0 20,0 1,0 43453 20,0 46,0 104,0 20,0 2,0 43494 20,0 46,0 104,0 20,0 2,5 43495 20,0 46,0 104,0 20,0 3,0 43496 20,0 46,0 104,0 20,0 4,0 43497 100 END MILLS END MILLS www.kyocera-sgstool.com
