POS
7 9 11

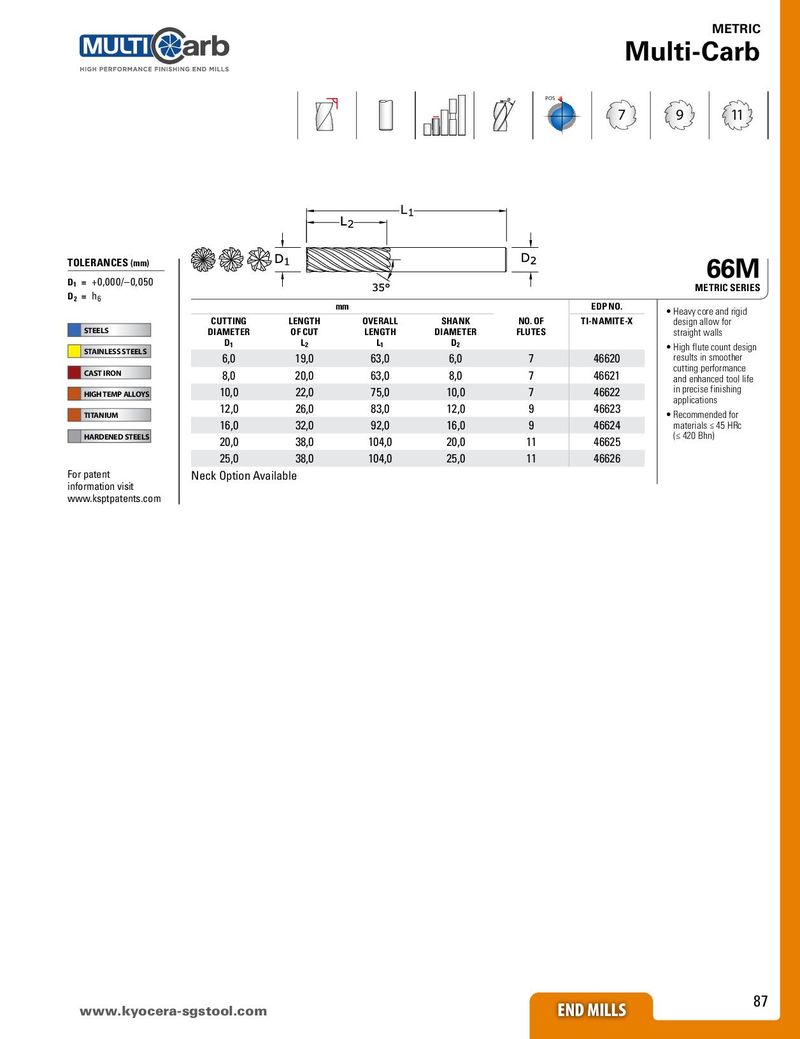

| TOLERANCES(mm) | ||||||
| D1 = +0,000/–0,050 D2 =h6 | ||||||
| m | m | EDP NO. | ||||
| STEELS STAINLESS STEELS | CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | NO. OF FLUTES | TI-NAMITE-X |
| 6,0 | 19,0 | 63,0 | 6,0 | 7 | 46620 | |
| CAST IRON | 8,0 | 20,0 | 63,0 | 8,0 | 7 | 46621 |
| HIGH TEMP ALLOYS | 10,0 | 22,0 | 75,0 | 10,0 | 7 | 46622 |
| TITANIUM | 12,0 | 26,0 | 83,0 | 12,0 | 9 | 46623 |
| 16,0 | 32,0 | 92,0 | 16,0 | 9 | 46624 | |
| HARDENED STEELS | 20,0 | 38,0 | 104,0 | 20,0 | 11 | 46625 |
| 25,0 | 38,0 | 104,0 | 25,0 | 11 | 46626 |
For patent Neck Option Available information visit www.ksptpatents.com
