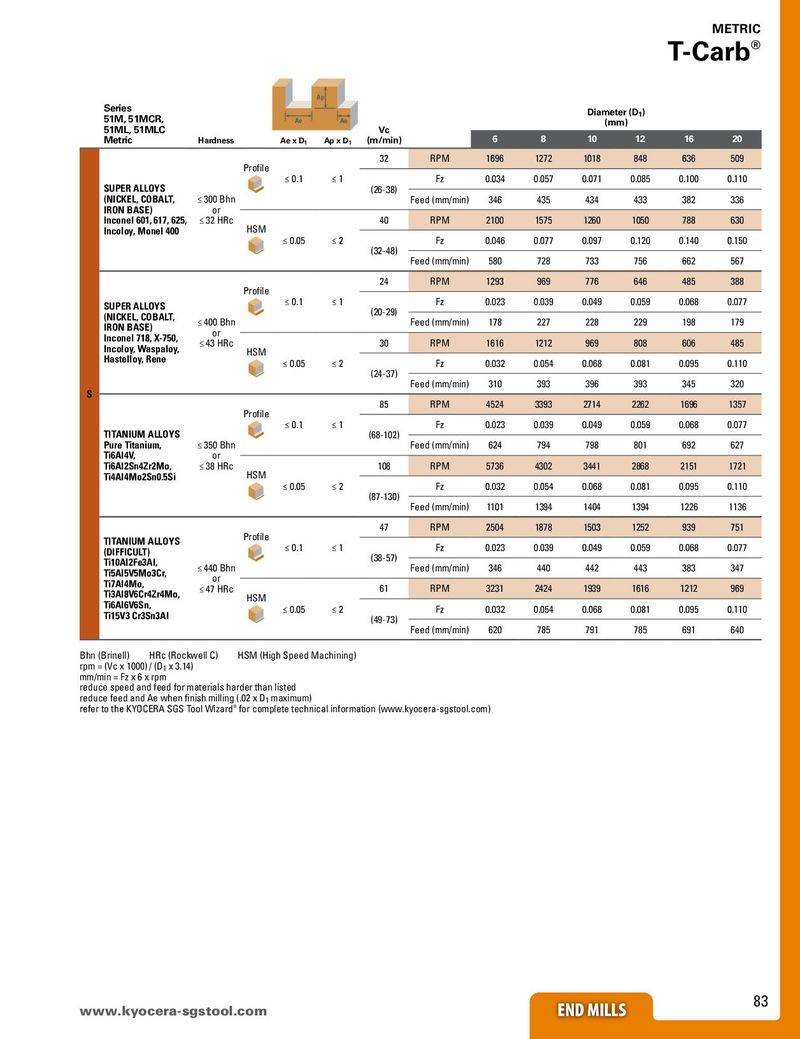

| Series 51M, 51MCR, 51ML, 51MLC | Ae | Ap Ae | Vc | Diame (m | ter (D1) m) | |||||||
| Metric | Hardness | Ae x D1 | Ap x D1 | (m/min) | 6 | 8 | 10 | 12 | 16 | 20 | ||
| Profile | 32 | RPM | 1696 | 1272 | 1018 | 848 | 636 | 509 | ||||
| SUPER ALLOYS | ≤ 0.1 | ≤ 1 | (26-38) | Fz | 0.034 | 0.057 | 0.071 | 0.085 | 0.100 | 0.110 | ||
| (NICKEL, COBALT, IRON BASE) | ≤ 300 Bhn | Feed (mm/min) | 346 | 435 | 434 | 433 | 382 | 336 | ||||
| Inconel 601, 617, 625, Incolo Monel 400 | or ≤ 32 HRc | HSM | 40 | RPM | 2100 | 1575 | 1260 | 1050 | 788 | 630 | ||
| y, | ≤ 0.05 | ≤ 2 | (32-48) | Fz | 0.046 | 0.077 | 0.097 | 0.120 | 0.140 | 0.150 | ||
| Feed (mm/min) | 580 | 728 | 733 | 756 | 662 | 567 | ||||||
| Profile | 24 | RPM | 1293 | 969 | 776 | 646 | 485 | 388 | ||||
| SUPER ALLOYS | ≤ 0.1 | ≤ 1 | (20-29) | Fz | 0.023 | 0.039 | 0.049 | 0.059 | 0.068 | 0.077 | ||
| (NICKEL, COBALT, IRON BASE) | ≤ 400 Bhn | Feed (mm/min) | 178 | 227 | 228 | 229 | 198 | 179 | ||||
| Inconel 718, X-750, Incoloy, Waspaloy, | or ≤ 43 HRc | HSM | 30 | RPM | 1616 | 1212 | 969 | 808 | 606 | 485 | ||
| Hastelloy, Rene | ≤ 0.05 | ≤ 2 | (24-37) | Fz | 0.032 | 0.054 | 0.068 | 0.081 | 0.095 | 0.110 | ||
| S | Feed (mm/min) | 310 | 393 | 396 | 393 | 345 | 320 | |||||
| Profile | 85 | RPM | 4524 | 3393 | 2714 | 2262 | 1696 | 1357 | ||||
| TITANIUM ALLOYS | ≤ 0.1 | ≤ 1 | (68-102) | Fz | 0.023 | 0.039 | 0.049 | 0.059 | 0.068 | 0.077 | ||
| Pure Titanium, Ti6Al4V | ≤ 350 Bhn | Feed (mm/min) | 624 | 794 | 798 | 801 | 692 | 627 | ||||
| , Ti6Al2Sn4Zr2Mo, Ti4Al4Mo2Sn05Si | or ≤ 38 HRc | HSM | 108 | RPM | 5736 | 4302 | 3441 | 2868 | 2151 | 1721 | ||
| . | ≤ 0.05 | ≤ 2 | (87-130) | Fz | 0.032 | 0.054 | 0.068 | 0.081 | 0.095 | 0.110 | ||
| Feed (mm/min) | 1101 | 1394 | 1404 | 1394 | 1226 | 1136 | ||||||
| Pfil | 47 | RPM | 2504 | 1878 | 1503 | 1252 | 939 | 751 | ||||
| TITANIUM ALLOYS (DIFFICULT) | roe | ≤ 0.1 | ≤ 1 | (3857) | Fz | 0.023 | 0.039 | 0.049 | 0.059 | 0.068 | 0.077 | |
| Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr, | ≤ 440 Bhn | - | Feed (mm/min) | 346 | 440 | 442 | 443 | 383 | 347 | |||
| Ti7Al4Mo, Ti3Al8V6Cr4Zr4Mo, | or ≤ 47 HRc | HSM | 61 | RPM | 3231 | 2424 | 1939 | 1616 | 1212 | 969 | ||
| Ti6Al6V6Sn, Ti15V3 Cr3Sn3Al | ≤ 0.05 | ≤ 2 | (49-73) | Fz | 0.032 | 0.054 | 0.068 | 0.081 | 0.095 | 0.110 | ||
| Feed (mm/min) | 620 | 785 | 791 | 785 | 691 | 640 |
Bhn (Brinell) HRc (Rockwell C) HSM (High Speed Machining) rpm = (Vc x 1000) / (D1 x 3.14) mm/min = Fz x 6 x rpm reduce speed and feed for materials harder than listed reduce feed and Ae when finish milling (.02 x D1 maximum) refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
