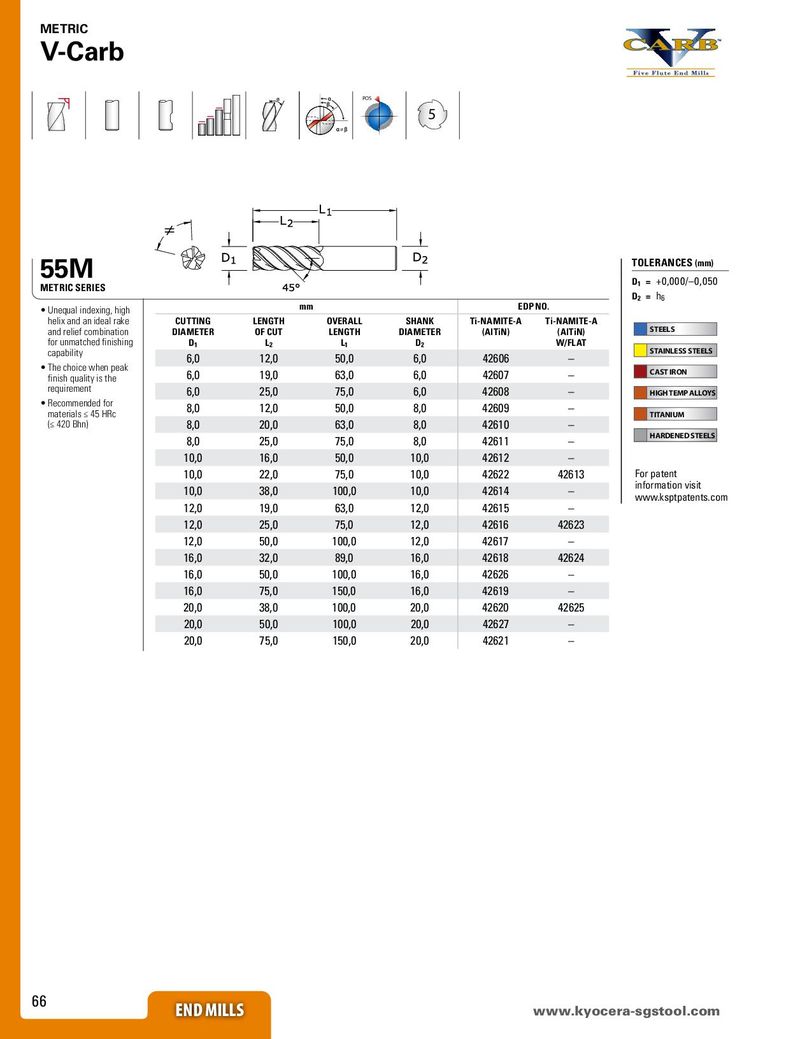

METRIC V-Carb POS 5 ≠ 55M TOLERANCES (mm) D1 = +0,000/–0,050 METRIC SERIES D2 = h6 • Unequal indexing, high mm EDP NO. helix and an ideal rake CUTTING LENGTH OVERALL SHANK Ti-NAMITE-A Ti-NAMITE-A and relief combination DIAMETER OF CUT LENGTH DIAMETER (AlTiN) (AlTiN) STEELS for unmatched finishing D1 L2 L1 D2 W/FLAT capability STAINLESS STEELS 6,0 12,0 50,0 6,0 42606 – • The choice when peak finish quality is the 6,0 19,0 63,0 6,0 42607 – CAST IRON requirement 6,0 25,0 75,0 6,0 42608 – HIGH TEMP ALLOYS • Recommended for materials ≤ 45 HRc 8,0 12,0 50,0 8,0 42609 – TITANIUM (≤ 420 Bhn) 8,0 20,0 63,0 8,0 42610 – HARDENED STEELS 8,0 25,0 75,0 8,0 42611 – 10,0 16,0 50,0 10,0 42612 – 10,0 22,0 75,0 10,0 42622 42613 For patent information visit 10,0 38,0 100,0 10,0 42614 – www.ksptpatents.com 12,0 19,0 63,0 12,0 42615 – 12,0 25,0 75,0 12,0 42616 42623 12,0 50,0 100,0 12,0 42617 – 16,0 32,0 89,0 16,0 42618 42624 16,0 50,0 100,0 16,0 42626 – 16,0 75,0 150,0 16,0 42619 – 20,0 38,0 100,0 20,0 42620 42625 20,0 50,0 100,0 20,0 42627 – 20,0 75,0 150,0 20,0 42621 – 66 END MILLS END MILLS www.kyocera-sgstool.com
