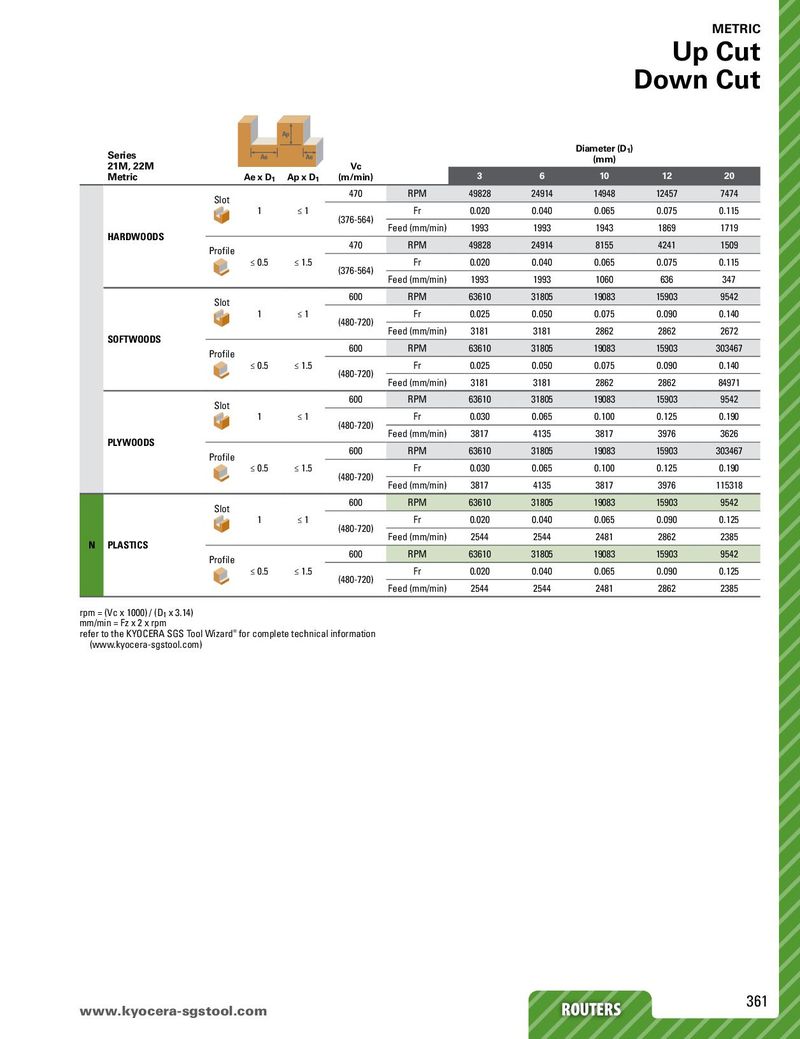

Общий каталог SGS 2018 - страница 361

METRIC Up Cut Down Cut Ap Series Diameter (D1) Ae Ae (mm) 21M, 22M Vc Metric Ae x D1 Ap x D1 (m/min) 3 6 10 12 20 Slot 470 RPM 49828 24914 14948 12457 7474 1 ≤1 (376-564) Fr 0.020 0.040 0.065 0.075 0.115 HARDWOODS Feed (mm/min) 1993 1993 1943 1869 1719 Profile 470 RPM 49828 24914 8155 4241 1509 ≤ 0.5 ≤ 1.5 (376-564) Fr 0.020 0.040 0.065 0.075 0.115 Feed (mm/min) 1993 1993 1060 636 347 Slot 600 RPM 63610 31805 19083 15903 9542 1 ≤1 (480-720) Fr 0.025 0.050 0.075 0.090 0.140 SOFTWOODS Feed (mm/min) 3181 3181 2862 2862 2672 Profile 600 RPM 63610 31805 19083 15903 303467 ≤ 0.5 ≤ 1.5 (480-720) Fr 0.025 0.050 0.075 0.090 0.140 Feed (mm/min) 3181 3181 2862 2862 84971 Slot 600 RPM 63610 31805 19083 15903 9542 1 ≤1 (480-720) Fr 0.030 0.065 0.100 0.125 0.190 PLYWOODS Feed (mm/min) 3817 4135 3817 3976 3626 Profile 600 RPM 63610 31805 19083 15903 303467 ≤ 0.5 ≤ 1.5 (480-720) Fr 0.030 0.065 0.100 0.125 0.190 Feed (mm/min) 3817 4135 3817 3976 115318 Slot 600 RPM 63610 31805 19083 15903 9542 1 ≤1 (480-720) Fr 0.020 0.040 0.065 0.090 0.125 N PLASTICS Feed (mm/min) 2544 2544 2481 2862 2385 Profile 600 RPM 63610 31805 19083 15903 9542 ≤ 0.5 ≤ 1.5 (480-720) Fr 0.020 0.040 0.065 0.090 0.125 Feed (mm/min) 2544 2544 2481 2862 2385 rpm = (Vc x 1000) / (D1 x 3.14) mm/min = Fz x 2 x rpm refer to the KYOCERA SGS Tool Wizard® for complete technical information  (www.kyocera-sgstool.com) www.kyocerRaO-sUgTsEtRoSol.com ROUTERS 361
