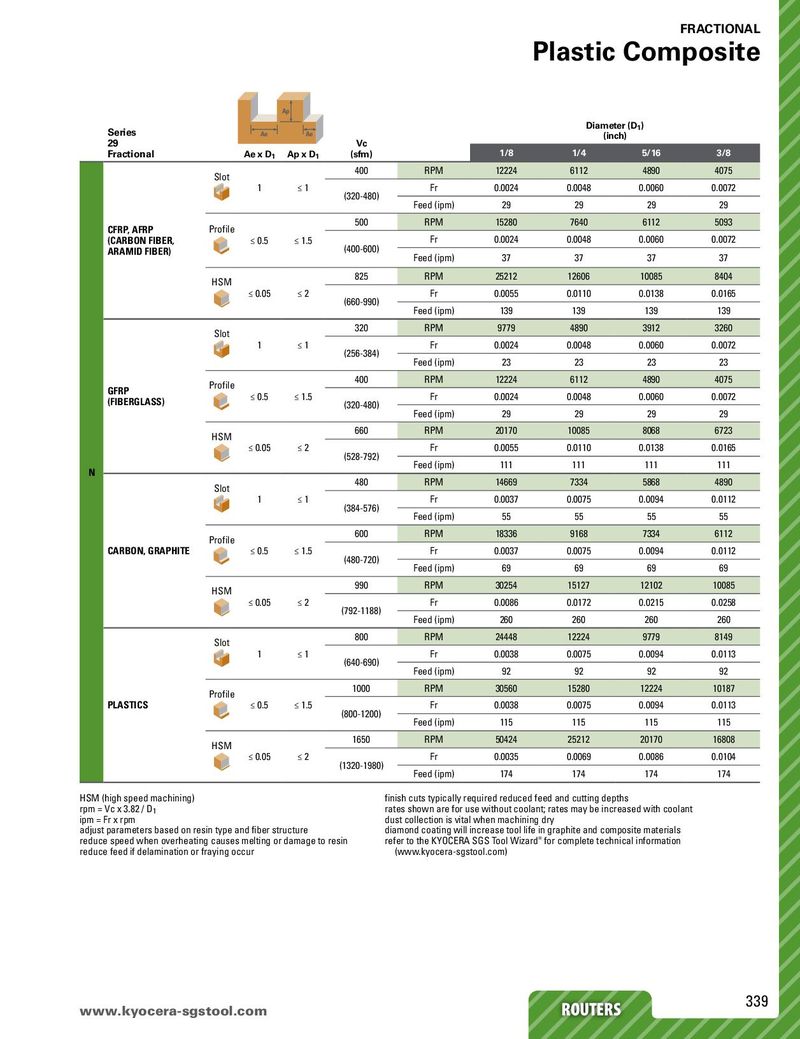

FRACTIONAL Plastic Composite Ap Series Diameter (D1) Ae Ae (inch) 29 Vc Fractional Ae x D1 Ap x D1 (sfm) 1/8 1/4 5/16 3/8 Slot 400 RPM 12224 6112 4890 4075 1 ≤1 (320-480) Fr 0.0024 0.0048 0.0060 0.0072 Feed (ipm) 29 29 29 29 CFRP, AFRP Profile 500 RPM 15280 7640 6112 5093 (CARBON FIBER, ≤ 0.5 ≤ 1.5 Fr 0.0024 0.0048 0.0060 0.0072 ARAMID FIBER) (400-600) Feed (ipm) 37 37 37 37 HSM 825 RPM 25212 12606 10085 8404 ≤ 0.05 ≤2 (660-990) Fr 0.0055 0.0110 0.0138 0.0165 Feed (ipm) 139 139 139 139 Slot 320 RPM 9779 4890 3912 3260 1 ≤1 (256-384) Fr 0.0024 0.0048 0.0060 0.0072 Feed (ipm) 23 23 23 23 Profile 400 RPM 12224 6112 4890 4075 GFRP ≤ 0.5 ≤ 1.5 Fr 0.0024 0.0048 0.0060 0.0072 (FIBERGLASS) (320-480) Feed (ipm) 29 29 29 29 HSM 660 RPM 20170 10085 8068 6723 ≤ 0.05 ≤2 (528-792) Fr 0.0055 0.0110 0.0138 0.0165 N Feed (ipm) 111 111 111 111 Slot 480 RPM 14669 7334 5868 4890 1 ≤1 (384-576) Fr 0.0037 0.0075 0.0094 0.0112 Feed (ipm) 55 55 55 55 Profile 600 RPM 18336 9168 7334 6112 CARBON, GRAPHITE ≤ 0.5 ≤ 1.5 (480-720) Fr 0.0037 0.0075 0.0094 0.0112 Feed (ipm) 69 69 69 69 HSM 990 RPM 30254 15127 12102 10085 ≤ 0.05 ≤2 (792-1188) Fr 0.0086 0.0172 0.0215 0.0258 Feed (ipm) 260 260 260 260 Slot 800 RPM 24448 12224 9779 8149 1 ≤1 (640-690) Fr 0.0038 0.0075 0.0094 0.0113 Feed (ipm) 92 92 92 92 Profile 1000 RPM 30560 15280 12224 10187 PLASTICS ≤ 0.5 ≤ 1.5 (800-1200) Fr 0.0038 0.0075 0.0094 0.0113 Feed (ipm) 115 115 115 115 HSM 1650 RPM 50424 25212 20170 16808 ≤ 0.05 ≤2 (1320-1980) Fr 0.0035 0.0069 0.0086 0.0104 Feed (ipm) 174 174 174 174 HSM (high speed machining) finish cuts typically required reduced feed and cutting depths rpm = Vc x 3.82 / D1 rates shown are for use without coolant; rates may be increased with coolant ipm = Fr x rpm dust collection is vital when machining dry adjust parameters based on resin type and fiber structure diamond coating will increase tool life in graphite and composite materials reduce speed when overheating causes melting or damage to resin refer to the KYOCERA SGS Tool Wizard® for complete technical information reduce feed if delamination or fraying occur   (www.kyocera-sgstool.com) www.kyocerRaO-sUgTsEtRoSol.com ROUTERS 339
