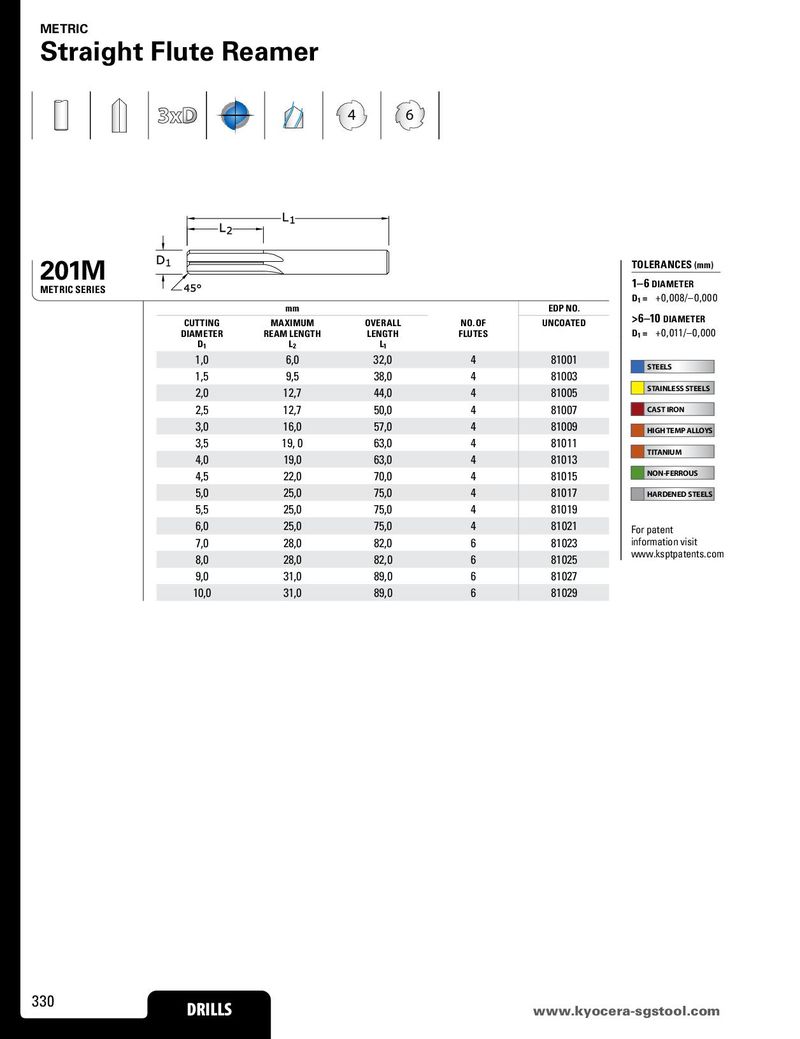

METRIC Straight Flute Reamer 4 6 201M TOLERANCES (mm) METRIC SERIES 1–6 DIAMETER D1 = +0,008/–0,000 mm EDP NO. CUTTING MAXIMUM OVERALL NO. OF UNCOATED >6–10 DIAMETER DIAMETER REAM LENGTH LENGTH FLUTES D1 = +0,011/–0,000 D1 L2 L1 1,0 6,0 32,0 4 81001 STEELS 1,5 9,5 38,0 4 81003 2,0 12,7 44,0 4 81005 STAINLESS STEELS 2,5 12,7 50,0 4 81007 CAST IRON 3,0 16,0 57,0 4 81009 HIGH TEMP ALLOYS 3,5 19, 0 63,0 4 81011 TITANIUM 4,0 19,0 63,0 4 81013 4,5 22,0 70,0 4 81015 NON-FERROUS 5,0 25,0 75,0 4 81017 HARDENED STEELS 5,5 25,0 75,0 4 81019 6,0 25,0 75,0 4 81021 For patent 7,0 28,0 82,0 6 81023 information visit 8,0 28,0 82,0 6 81025 www.ksptpatents.com 9,0 31,0 89,0 6 81027 10,0 31,0 89,0 6 81029 330 DRILLS www.kDyRoIcLeLrSa-sgstool.com
