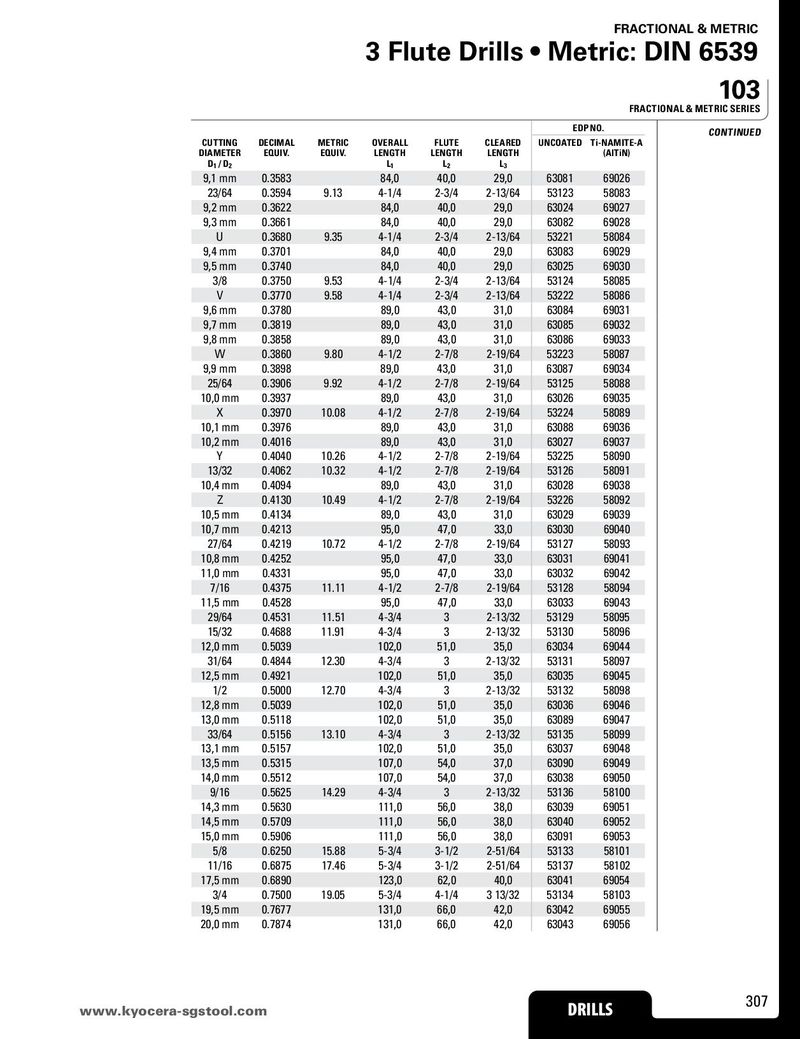

FRACTIONAL & METRIC 3 Flute Drills • Metric: DIN 6539 103 FRACTIONAL & METRIC SERIES EDP NO. CONTINUED CUTTING DECIMAL METRIC OVERALL FLUTE CLEARED UNCOATED Ti-NAMITE-A DIAMETER EQUIV. EQUIV. LENGTH LENGTH LENGTH (AlTiN) D1 / D2 L1 L2 L3 9,1 mm 0.3583 84,0 40,0 29,0 63081 69026 23/64 0.3594 9.13 4-1/4 2-3/4 2-13/64 53123 58083 9,2 mm 0.3622 84,0 40,0 29,0 63024 69027 9,3 mm 0.3661 84,0 40,0 29,0 63082 69028 U 0.3680 9.35 4-1/4 2-3/4 2-13/64 53221 58084 9,4 mm 0.3701 84,0 40,0 29,0 63083 69029 9,5 mm 0.3740 84,0 40,0 29,0 63025 69030 3/8 0.3750 9.53 4-1/4 2-3/4 2-13/64 53124 58085 V 0.3770 9.58 4-1/4 2-3/4 2-13/64 53222 58086 9,6 mm 0.3780 89,0 43,0 31,0 63084 69031 9,7 mm 0.3819 89,0 43,0 31,0 63085 69032 9,8 mm 0.3858 89,0 43,0 31,0 63086 69033 W 0.3860 9.80 4-1/2 2-7/8 2-19/64 53223 58087 9,9 mm 0.3898 89,0 43,0 31,0 63087 69034 25/64 0.3906 9.92 4-1/2 2-7/8 2-19/64 53125 58088 10,0 mm 0.3937 89,0 43,0 31,0 63026 69035 X 0.3970 10.08 4-1/2 2-7/8 2-19/64 53224 58089 10,1 mm 0.3976 89,0 43,0 31,0 63088 69036 10,2 mm 0.4016 89,0 43,0 31,0 63027 69037 Y 0.4040 10.26 4-1/2 2-7/8 2-19/64 53225 58090 13/32 0.4062 10.32 4-1/2 2-7/8 2-19/64 53126 58091 10,4 mm 0.4094 89,0 43,0 31,0 63028 69038 Z 0.4130 10.49 4-1/2 2-7/8 2-19/64 53226 58092 10,5 mm 0.4134 89,0 43,0 31,0 63029 69039 10,7 mm 0.4213 95,0 47,0 33,0 63030 69040 27/64 0.4219 10.72 4-1/2 2-7/8 2-19/64 53127 58093 10,8 mm 0.4252 95,0 47,0 33,0 63031 69041 11,0 mm 0.4331 95,0 47,0 33,0 63032 69042 7/16 0.4375 11.11 4-1/2 2-7/8 2-19/64 53128 58094 11,5 mm 0.4528 95,0 47,0 33,0 63033 69043 29/64 0.4531 11.51 4-3/4 3 2-13/32 53129 58095 15/32 0.4688 11.91 4-3/4 3 2-13/32 53130 58096 12,0 mm 0.5039 102,0 51,0 35,0 63034 69044 31/64 0.4844 12.30 4-3/4 3 2-13/32 53131 58097 12,5 mm 0.4921 102,0 51,0 35,0 63035 69045 1/2 0.5000 12.70 4-3/4 3 2-13/32 53132 58098 12,8 mm 0.5039 102,0 51,0 35,0 63036 69046 13,0 mm 0.5118 102,0 51,0 35,0 63089 69047 33/64 0.5156 13.10 4-3/4 3 2-13/32 53135 58099 13,1 mm 0.5157 102,0 51,0 35,0 63037 69048 13,5 mm 0.5315 107,0 54,0 37,0 63090 69049 14,0 mm 0.5512 107,0 54,0 37,0 63038 69050 9/16 0.5625 14.29 4-3/4 3 2-13/32 53136 58100 14,3 mm 0.5630 111,0 56,0 38,0 63039 69051 14,5 mm 0.5709 111,0 56,0 38,0 63040 69052 15,0 mm 0.5906 111,0 56,0 38,0 63091 69053 5/8 0.6250 15.88 5-3/4 3-1/2 2-51/64 53133 58101 11/16 0.6875 17.46 5-3/4 3-1/2 2-51/64 53137 58102 17,5 mm 0.6890 123,0 62,0 40,0 63041 69054 3/4 0.7500 19.05 5-3/4 4-1/4 3 13/32 53134 58103 19,5 mm 0.7677 131,0 66,0 42,0 63042 69055 20,0 mm 0.7874 131,0 66,0 42,0 63043 69056 www.kyoceraD-sRgILsLtoSol.com DRILLS 307
