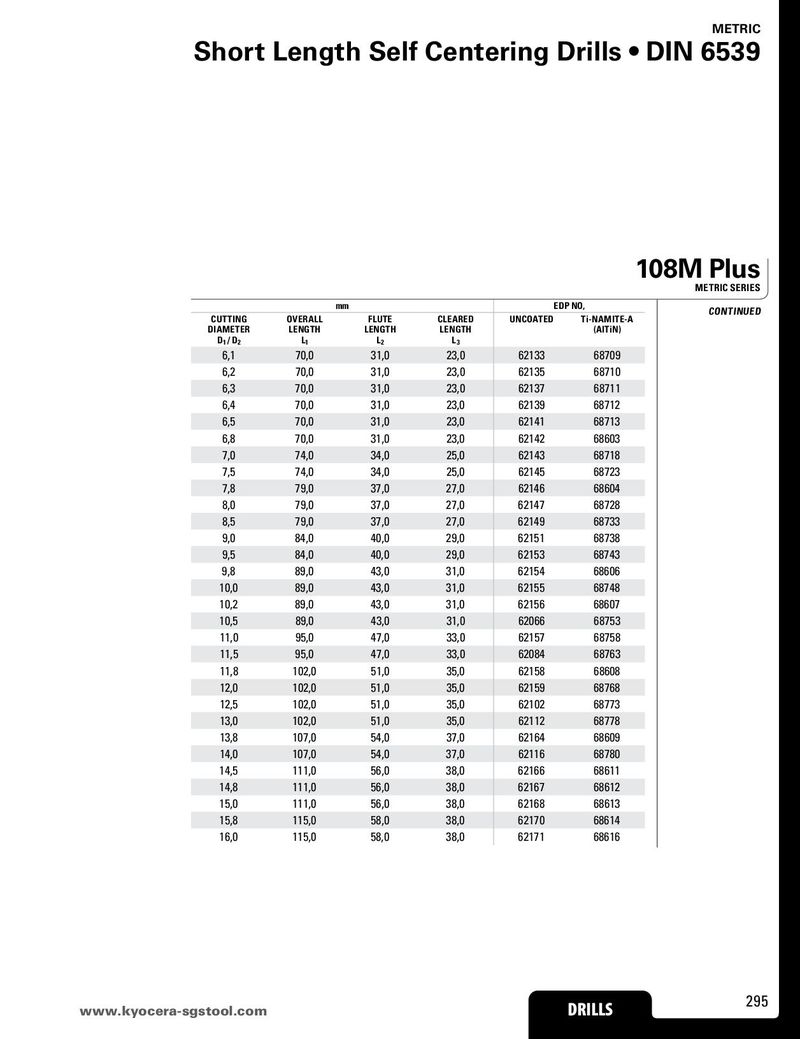

METRIC Short Length Self Centering Drills • DIN 6539 108M Plus METRIC SERIES mm EDP NO, CONTINUED CUTTING OVERALL FLUTE CLEARED UNCOATED Ti-NAMITE-A DIAMETER LENGTH LENGTH LENGTH (AlTiN) D1 / D2 L1 L2 L3 6,1 70,0 31,0 23,0 62133 68709 6,2 70,0 31,0 23,0 62135 68710 6,3 70,0 31,0 23,0 62137 68711 6,4 70,0 31,0 23,0 62139 68712 6,5 70,0 31,0 23,0 62141 68713 6,8 70,0 31,0 23,0 62142 68603 7,0 74,0 34,0 25,0 62143 68718 7,5 74,0 34,0 25,0 62145 68723 7,8 79,0 37,0 27,0 62146 68604 8,0 79,0 37,0 27,0 62147 68728 8,5 79,0 37,0 27,0 62149 68733 9,0 84,0 40,0 29,0 62151 68738 9,5 84,0 40,0 29,0 62153 68743 9,8 89,0 43,0 31,0 62154 68606 10,0 89,0 43,0 31,0 62155 68748 10,2 89,0 43,0 31,0 62156 68607 10,5 89,0 43,0 31,0 62066 68753 11,0 95,0 47,0 33,0 62157 68758 11,5 95,0 47,0 33,0 62084 68763 11,8 102,0 51,0 35,0 62158 68608 12,0 102,0 51,0 35,0 62159 68768 12,5 102,0 51,0 35,0 62102 68773 13,0 102,0 51,0 35,0 62112 68778 13,8 107,0 54,0 37,0 62164 68609 14,0 107,0 54,0 37,0 62116 68780 14,5 111,0 56,0 38,0 62166 68611 14,8 111,0 56,0 38,0 62167 68612 15,0 111,0 56,0 38,0 62168 68613 15,8 115,0 58,0 38,0 62170 68614 16,0 115,0 58,0 38,0 62171 68616 www.kyoceraD-sRgILsLtoSol.com DRILLS 295
