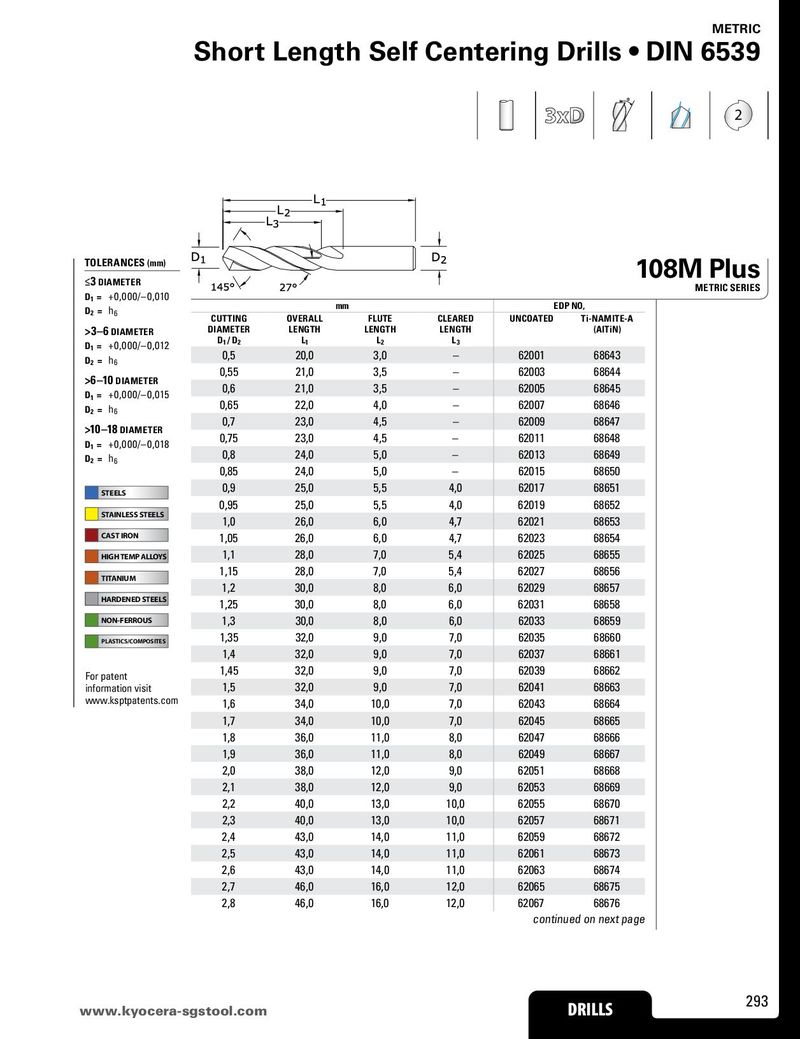

METRIC Short Length Self Centering Drills • DIN 6539 2 TOLERANCES (mm) 108M Plus ≤3 DIAMETER METRIC SERIES D1 = +0,000/–0,010 D2 = h6 mm EDP NO, CUTTING OVERALL FLUTE CLEARED UNCOATED Ti-NAMITE-A >3–6 DIAMETER DIAMETER LENGTH LENGTH LENGTH (AlTiN) D1 = +0,000/–0,012 D1 / D2 L1 L2 L3 D2 = h6 0,5 20,0 3,0 – 62001 68643 >6–10 DIAMETER 0,55 21,0 3,5 – 62003 68644 D1 = +0,000/–0,015 0,6 21,0 3,5 – 62005 68645 D2 = h6 0,65 22,0 4,0 – 62007 68646 >10–18 DIAMETER 0,7 23,0 4,5 – 62009 68647 D1 = +0,000/–0,018 0,75 23,0 4,5 – 62011 68648 D2 = h6 0,8 24,0 5,0 – 62013 68649 0,85 24,0 5,0 – 62015 68650 STEELS 0,9 25,0 5,5 4,0 62017 68651 0,95 25,0 5,5 4,0 62019 68652 STAINLESS STEELS 1,0 26,0 6,0 4,7 62021 68653 CAST IRON 1,05 26,0 6,0 4,7 62023 68654 HIGH TEMP ALLOYS 1,1 28,0 7,0 5,4 62025 68655 TITANIUM 1,15 28,0 7,0 5,4 62027 68656 1,2 30,0 8,0 6,0 62029 68657 HARDENED STEELS 1,25 30,0 8,0 6,0 62031 68658 NON-FERROUS 1,3 30,0 8,0 6,0 62033 68659 PLASTICS/COMPOSITES 1,35 32,0 9,0 7,0 62035 68660 1,4 32,0 9,0 7,0 62037 68661 For patent 1,45 32,0 9,0 7,0 62039 68662 information visit 1,5 32,0 9,0 7,0 62041 68663 www.ksptpatents.com 1,6 34,0 10,0 7,0 62043 68664 1,7 34,0 10,0 7,0 62045 68665 1,8 36,0 11,0 8,0 62047 68666 1,9 36,0 11,0 8,0 62049 68667 2,0 38,0 12,0 9,0 62051 68668 2,1 38,0 12,0 9,0 62053 68669 2,2 40,0 13,0 10,0 62055 68670 2,3 40,0 13,0 10,0 62057 68671 2,4 43,0 14,0 11,0 62059 68672 2,5 43,0 14,0 11,0 62061 68673 2,6 43,0 14,0 11,0 62063 68674 2,7 46,0 16,0 12,0 62065 68675 2,8 46,0 16,0 12,0 62067 68676 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 293
