3 4 5

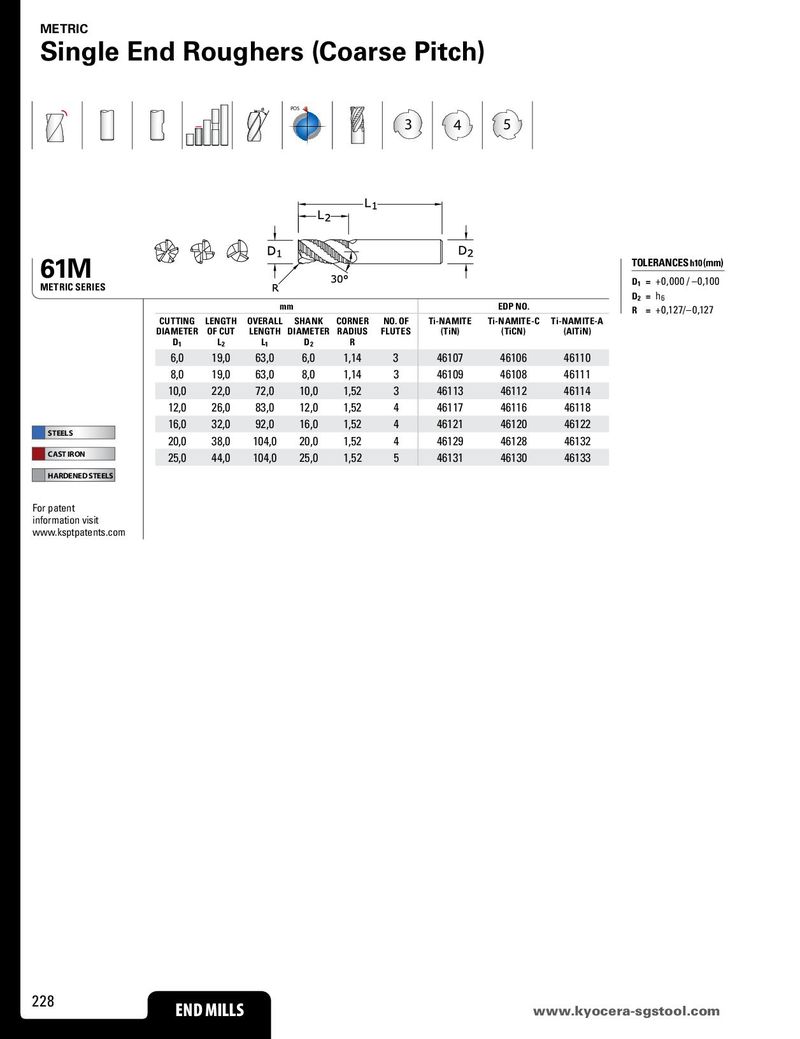

| 1M ETRIC SERIES | m | m | EDP NO. | TOLERANCESh10(mm) D1 = +0,000 / –0,100 D2 =h6 R = +0,127/–0,127 | ||||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | CORNER RADIUS R | NO. OF FLUTES | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | ||
| 6,0 | 19,0 | 63,0 | 6,0 | 1,14 | 3 | 46107 | 46106 | 46110 | ||
| 8,0 | 19,0 | 63,0 | 8,0 | 1,14 | 3 | 46109 | 46108 | 46111 | ||
| 10,0 | 22,0 | 72,0 | 10,0 | 1,52 | 3 | 46113 | 46112 | 46114 | ||
| 12,0 | 26,0 | 83,0 | 12,0 | 1,52 | 4 | 46117 | 46116 | 46118 | ||
| STEELS | 16,0 | 32,0 | 92,0 | 16,0 | 1,52 | 4 | 46121 | 46120 | 46122 | |
| 20,0 | 38,0 | 104,0 | 20,0 | 1,52 | 4 | 46129 | 46128 | 46132 | ||
| CAST IRON HARDENED STEELS | 25,0 | 44,0 | 104,0 | 25,0 | 1,52 | 5 | 46131 | 46130 | 46133 |
For patent information visit www.ksptpatents.com
