POS
4

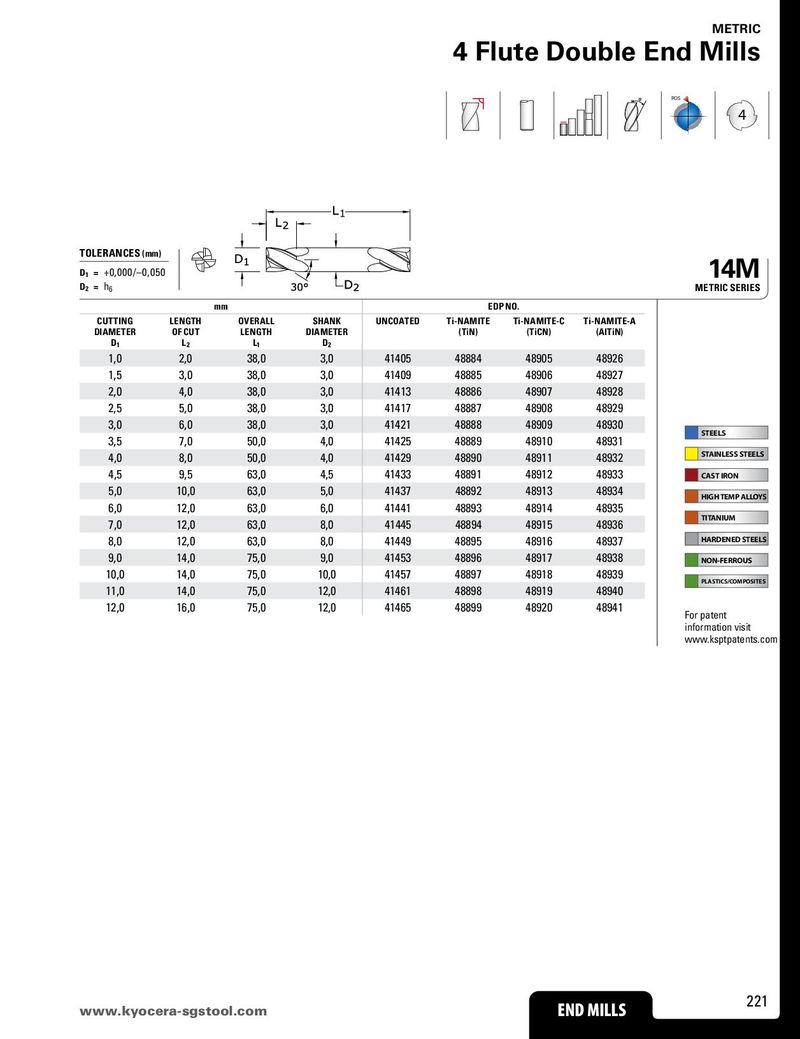

| TOLERANCES(mm) D1 = +0,000/–0,050 D2 =h6 | 14M METRIC SERIES | |||||||
| mm | ED | P NO. | ||||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | |
| 1,0 | 2,0 | 38,0 | 3,0 | 41405 | 48884 | 48905 | 48926 | |
| 1,5 | 3,0 | 38,0 | 3,0 | 41409 | 48885 | 48906 | 48927 | |
| 2,0 | 4,0 | 38,0 | 3,0 | 41413 | 48886 | 48907 | 48928 | |
| 2,5 | 5,0 | 38,0 | 3,0 | 41417 | 48887 | 48908 | 48929 | |
| 3,0 | 6,0 | 38,0 | 3,0 | 41421 | 48888 | 48909 | 48930 | STEELS |
| 3,5 | 7,0 | 50,0 | 4,0 | 41425 | 48889 | 48910 | 48931 | |
| 4,0 | 8,0 | 50,0 | 4,0 | 41429 | 48890 | 48911 | 48932 | STAINLESS STEELS |
| 4,5 | 9,5 | 63,0 | 4,5 | 41433 | 48891 | 48912 | 48933 | CAST IRON |
| 5,0 | 10,0 | 63,0 | 5,0 | 41437 | 48892 | 48913 | 48934 | HIGH TEMP ALLOYS |
| 6,0 | 12,0 | 63,0 | 6,0 | 41441 | 48893 | 48914 | 48935 | |
| 7,0 | 12,0 | 63,0 | 8,0 | 41445 | 48894 | 48915 | 48936 | TITANIUM |
| 8,0 | 12,0 | 63,0 | 8,0 | 41449 | 48895 | 48916 | 48937 | HARDENED STEELS |
| 9,0 | 14,0 | 75,0 | 9,0 | 41453 | 48896 | 48917 | 48938 | NON-FERROUS |
| 10,0 | 14,0 | 75,0 | 10,0 | 41457 | 48897 | 48918 | 48939 | PLASTICS/COMPOSITES |
| 11,0 | 14,0 | 75,0 | 12,0 | 41461 | 48898 | 48919 | 48940 | |
| 12,0 | 16,0 | 75,0 | 12,0 | 41465 | 48899 | 48920 | 48941 |
For patent information visit www.ksptpatents.com
