POS
4

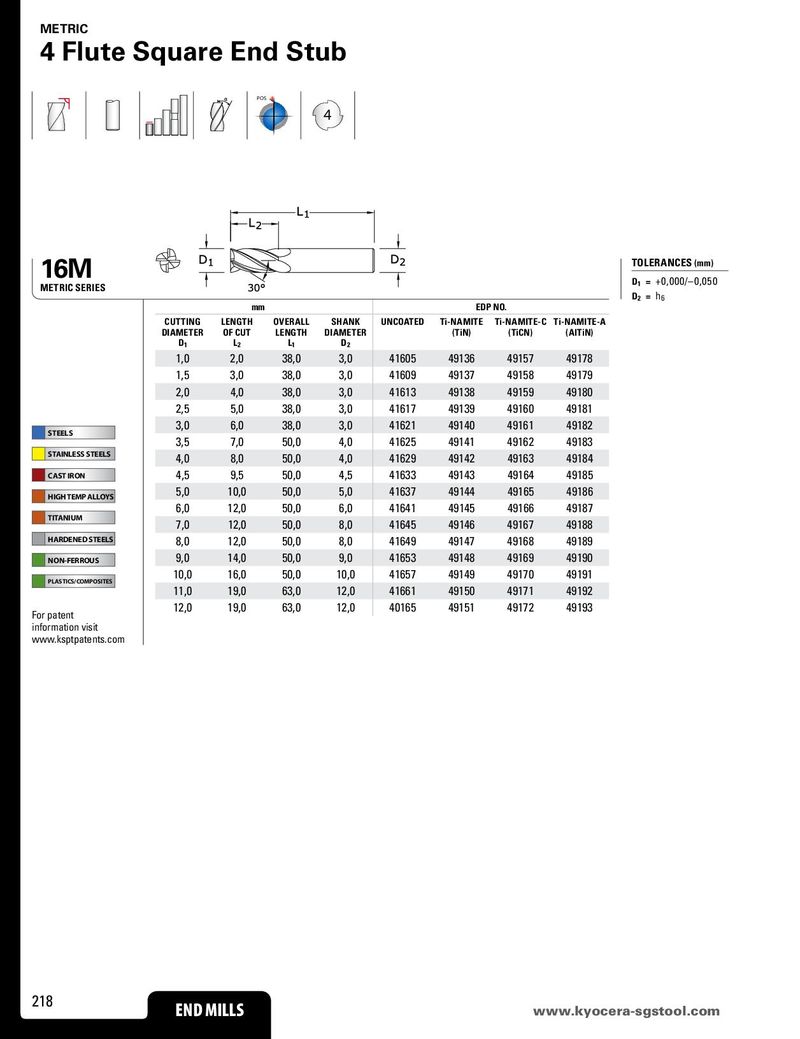

16M TOLERANCES (mm) D = +0,000/–0,050 METRIC SERIES 1 D = h6 2
| mm | EDP | NO. | ||||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | |
| 1,0 | 2,0 | 38,0 | 3,0 | 41605 | 49136 | 49157 | 49178 | |
| 1,5 | 3,0 | 38,0 | 3,0 | 41609 | 49137 | 49158 | 49179 | |
| 2,0 | 4,0 | 38,0 | 3,0 | 41613 | 49138 | 49159 | 49180 | |
| 2,5 | 5,0 | 38,0 | 3,0 | 41617 | 49139 | 49160 | 49181 | |
| STEELS | 3,0 | 6,0 | 38,0 | 3,0 | 41621 | 49140 | 49161 | 49182 |
| 3,5 | 7,0 | 50,0 | 4,0 | 41625 | 49141 | 49162 | 49183 | |
| STAINLESS STEELS | 4,0 | 8,0 | 50,0 | 4,0 | 41629 | 49142 | 49163 | 49184 |
| CAST IRON | 4,5 | 9,5 | 50,0 | 4,5 | 41633 | 49143 | 49164 | 49185 |
| HIGH TEMP ALLOYS | 5,0 | 10,0 | 50,0 | 5,0 | 41637 | 49144 | 49165 | 49186 |
| 6,0 | 12,0 | 50,0 | 6,0 | 41641 | 49145 | 49166 | 49187 | |
| TITANIUM | 7,0 | 12,0 | 50,0 | 8,0 | 41645 | 49146 | 49167 | 49188 |
| HARDENED STEELS | 8,0 | 12,0 | 50,0 | 8,0 | 41649 | 49147 | 49168 | 49189 |
| NON-FERROUS | 9,0 | 14,0 | 50,0 | 9,0 | 41653 | 49148 | 49169 | 49190 |
| PLASTICS/COMPOSITES | 10,0 | 16,0 | 50,0 | 10,0 | 41657 | 49149 | 49170 | 49191 |
| 11,0 | 19,0 | 63,0 | 12,0 | 41661 | 49150 | 49171 | 49192 | |
| For patent information visit www.ksptpatents.com | 12,0 | 19,0 | 63,0 | 12,0 | 40165 | 49151 | 49172 | 49193 |
