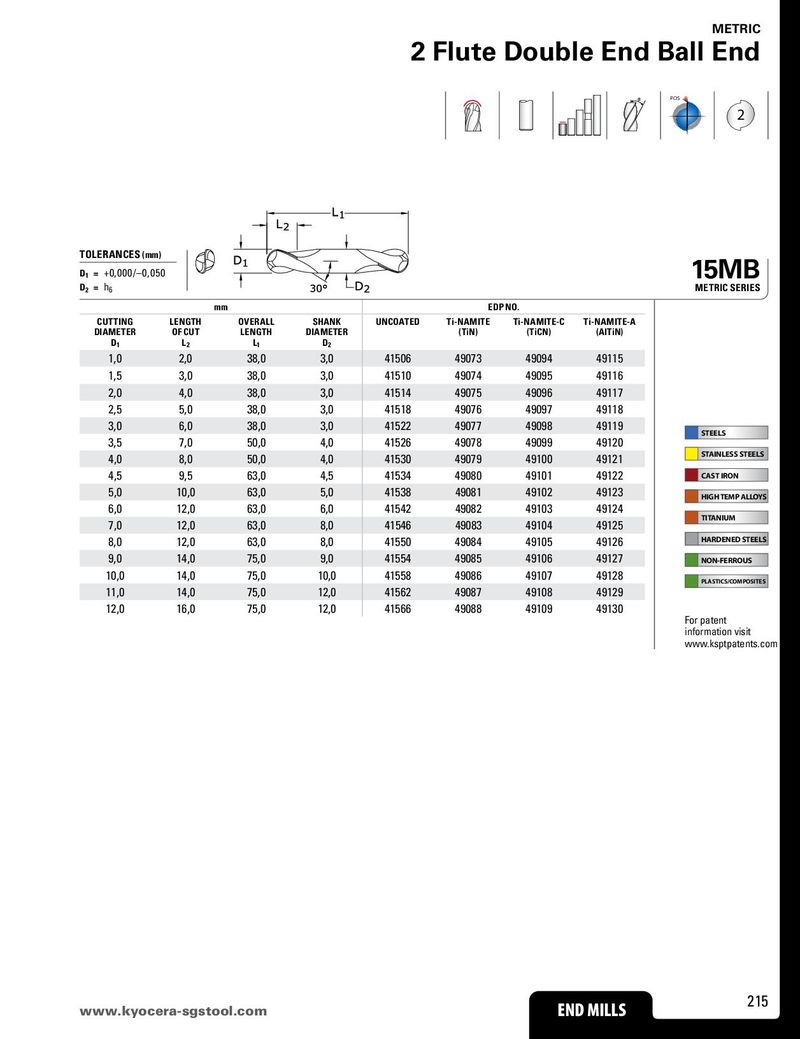

| TOLERANCES(mm) D1 = +0,000/–0,050 D2 =h6 | 15MB METRIC SERIES | |||||||
| m | m | ED | P NO. | |||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | |
| 1,0 | 2,0 | 38,0 | 3,0 | 41506 | 49073 | 49094 | 49115 | |
| 1,5 | 3,0 | 38,0 | 3,0 | 41510 | 49074 | 49095 | 49116 | |
| 2,0 | 4,0 | 38,0 | 3,0 | 41514 | 49075 | 49096 | 49117 | |
| 2,5 | 5,0 | 38,0 | 3,0 | 41518 | 49076 | 49097 | 49118 | |
| 3,0 | 6,0 | 38,0 | 3,0 | 41522 | 49077 | 49098 | 49119 | STEELS |
| 3,5 | 7,0 | 50,0 | 4,0 | 41526 | 49078 | 49099 | 49120 | |
| 4,0 | 8,0 | 50,0 | 4,0 | 41530 | 49079 | 49100 | 49121 | STAINLESS STEELS |
| 4,5 | 9,5 | 63,0 | 4,5 | 41534 | 49080 | 49101 | 49122 | CAST IRON |
| 5,0 | 10,0 | 63,0 | 5,0 | 41538 | 49081 | 49102 | 49123 | HIGH TEMP ALLOYS |
| 6,0 | 12,0 | 63,0 | 6,0 | 41542 | 49082 | 49103 | 49124 | |
| 7,0 | 12,0 | 63,0 | 8,0 | 41546 | 49083 | 49104 | 49125 | TITANIUM |
| 8,0 | 12,0 | 63,0 | 8,0 | 41550 | 49084 | 49105 | 49126 | HARDENED STEELS |
| 9,0 | 14,0 | 75,0 | 9,0 | 41554 | 49085 | 49106 | 49127 | NON-FERROUS |
| 10,0 | 14,0 | 75,0 | 10,0 | 41558 | 49086 | 49107 | 49128 | PLASTICS/COMPOSITES |
| 11,0 | 14,0 | 75,0 | 12,0 | 41562 | 49087 | 49108 | 49129 | |
| 12,0 | 16,0 | 75,0 | 12,0 | 41566 | 49088 | 49109 | 49130 |
