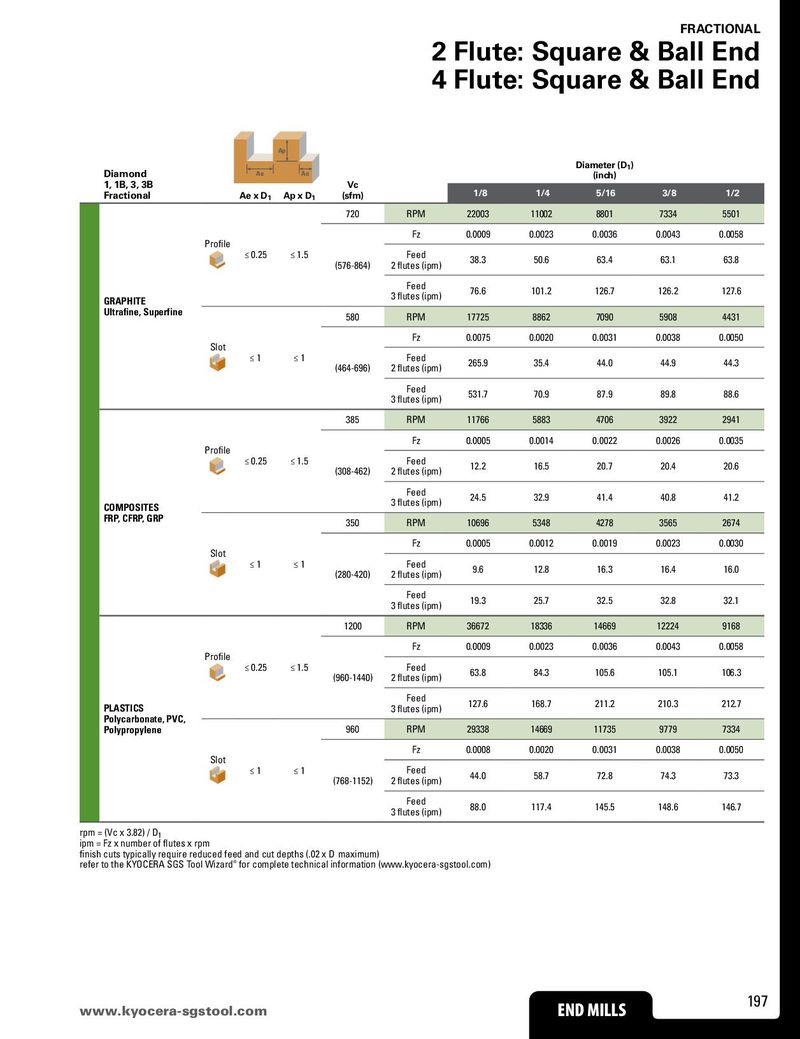

2 Flute: Square & Ball End
4 Flute: Square & Ball End
| Diamond 1, 1B, 3, 3B | Ae | Ap Ae | Vc | Diameter (D1) (inch) | ||||||
| Fractional | Ae x D1 | Ap x D1 | (sfm) | 1/8 | 1/4 | 5/16 | 3/8 | 1/2 | ||
| 720 | RPM | 22003 | 11002 | 8801 | 7334 | 5501 | ||||
| Profile | Fz | 0.0009 | 0.0023 | 0.0036 | 0.0043 | 0.0058 | ||||
| ≤ 0.25 | ≤ 1.5 | (576-864) | Feed 2 flutes (ipm) | 38.3 | 50.6 | 63.4 | 63.1 | 63.8 | ||
| GRAPHITE | Feed 3 flutes (ipm) | 76.6 | 101.2 | 126.7 | 126.2 | 127.6 | ||||
| Ultrafine, Superfine | 580 | RPM | 17725 | 8862 | 7090 | 5908 | 4431 | |||
| Slot | Fz | 0.0075 | 0.0020 | 0.0031 | 0.0038 | 0.0050 | ||||
| ≤ 1 | ≤ 1 | (464-696) | Feed 2 flutes (ipm) | 265.9 | 35.4 | 44.0 | 44.9 | 44.3 | ||
| Feed 3 flutes (ipm) | 531.7 | 70.9 | 87.9 | 89.8 | 88.6 | |||||
| 385 | RPM | 11766 | 5883 | 4706 | 3922 | 2941 | ||||
| Profile | Fz | 0.0005 | 0.0014 | 0.0022 | 0.0026 | 0.0035 | ||||
| ≤ 0.25 | ≤ 1.5 | (308-462) | Feed 2 flutes (ipm) | 12.2 | 16.5 | 20.7 | 20.4 | 20.6 | ||
| COMPOSITES | Feed 3 flutes (ipm) | 24.5 | 32.9 | 41.4 | 40.8 | 41.2 | ||||
| FRP, CFRP, GRP | 350 | RPM | 10696 | 5348 | 4278 | 3565 | 2674 | |||
| Slot | Fz | 0.0005 | 0.0012 | 0.0019 | 0.0023 | 0.0030 | ||||
| ≤ 1 | ≤ 1 | (280-420) | Feed 2 flutes (ipm) | 9.6 | 12.8 | 16.3 | 16.4 | 16.0 | ||
| Feed 3 flutes (ipm) | 19.3 | 25.7 | 32.5 | 32.8 | 32.1 | |||||
| 1200 | RPM | 36672 | 18336 | 14669 | 12224 | 9168 | ||||
| Profile | Fz | 0.0009 | 0.0023 | 0.0036 | 0.0043 | 0.0058 | ||||
| ≤ 0.25 | ≤ 1.5 | (960-1440) | Feed 2 flutes (ipm) | 63.8 | 84.3 | 105.6 | 105.1 | 106.3 | ||
| PLASTICS | Feed 3 flutes (ipm) | 127.6 | 168.7 | 211.2 | 210.3 | 212.7 | ||||
| Polycarbonate, PVC, Polypropylene | 960 | RPM | 29338 | 14669 | 11735 | 9779 | 7334 | |||
| Slot | Fz | 0.0008 | 0.0020 | 0.0031 | 0.0038 | 0.0050 | ||||
| ≤ 1 | ≤ 1 | (768-1152) | Feed 2 flutes (ipm) | 44.0 | 58.7 | 72.8 | 74.3 | 73.3 | ||
| Feed 3 flutes (ipm) | 88.0 | 117.4 | 145.5 | 148.6 | 146.7 |
rpm = (Vc x 3.82) / D1 ipm = Fz x number of flutes x rpm finish cuts typically require reduced feed and cut depths (.02 x D maximum) refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
