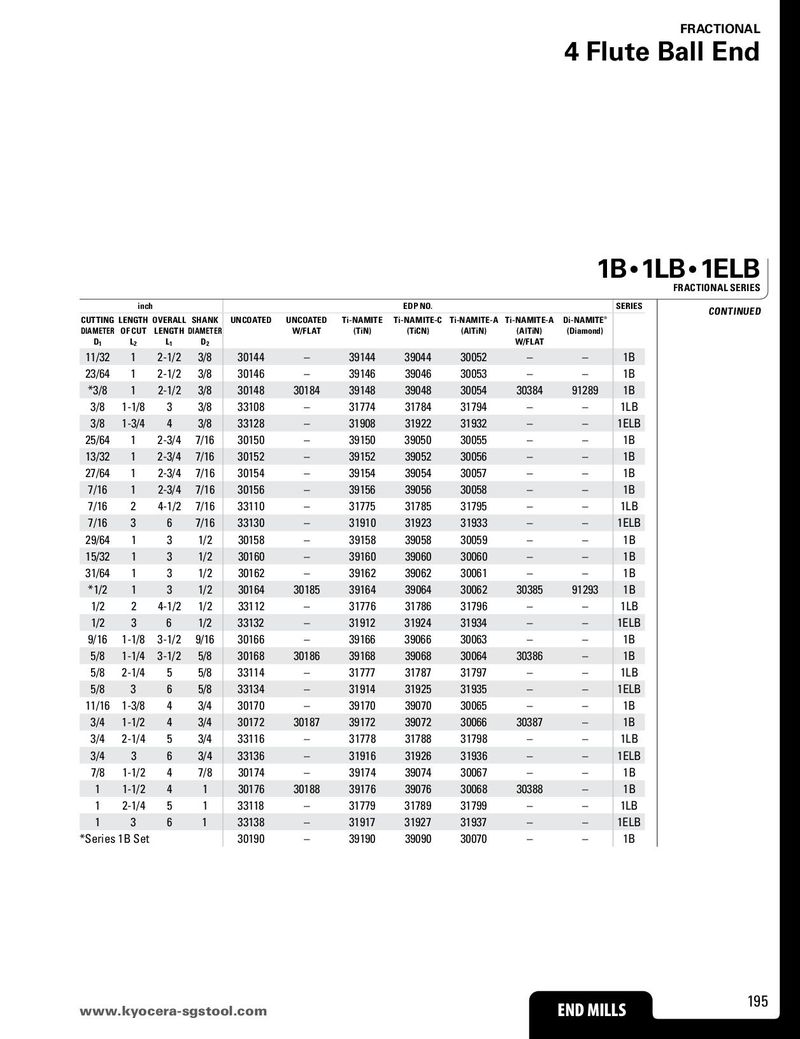

1B • 1LB • 1ELB
FRACTIONAL SERIES
| inc | h | EDP NO. | SERIES | CONTINUED | ||||||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | UNCOATED W/FLAT | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | Ti-NAMITE-A (AlTiN) W/FLAT | Di-NAMITE ® (Diamond) | ||
| 11/32 | 1 | 2-1/2 | 3/8 | 30144 | – | 39144 | 39044 | 30052 | – | – | 1B | |
| 23/64 | 1 | 2-1/2 | 3/8 | 30146 | – | 39146 | 39046 | 30053 | – | – | 1B | |
| 3/8 | 1 | 2-1/2 | 3/8 | 30148 | 30184 | 39148 | 39048 | 30054 | 30384 | 91289 | 1B | |
| 3/8 | 1-1/8 | 3 | 3/8 | 33108 | – | 31774 | 31784 | 31794 | – | – | 1LB | |
| 3/8 | 1-3/4 | 4 | 3/8 | 33128 | – | 31908 | 31922 | 31932 | – | – | 1ELB | |
| 25/64 | 1 | 2-3/4 | 7/16 | 30150 | – | 39150 | 39050 | 30055 | – | – | 1B | |
| 13/32 | 1 | 2-3/4 | 7/16 | 30152 | – | 39152 | 39052 | 30056 | – | – | 1B | |
| 27/64 | 1 | 2-3/4 | 7/16 | 30154 | – | 39154 | 39054 | 30057 | – | – | 1B | |
| 7/16 | 1 | 2-3/4 | 7/16 | 30156 | – | 39156 | 39056 | 30058 | – | – | 1B | |
| 7/16 | 2 | 4-1/2 | 7/16 | 33110 | – | 31775 | 31785 | 31795 | – | – | 1LB | |
| 7/16 | 3 | 6 | 7/16 | 33130 | – | 31910 | 31923 | 31933 | – | – | 1ELB | |
| 29/64 | 1 | 3 | 1/2 | 30158 | – | 39158 | 39058 | 30059 | – | – | 1B | |
| 15/32 | 1 | 3 | 1/2 | 30160 | – | 39160 | 39060 | 30060 | – | – | 1B | |
| 31/64 | 1 | 3 | 1/2 | 30162 | – | 39162 | 39062 | 30061 | – | – | 1B | |
| 1/2 | 1 | 3 | 1/2 | 30164 | 30185 | 39164 | 39064 | 30062 | 30385 | 91293 | 1B | |
| 1/2 | 2 | 4-1/2 | 1/2 | 33112 | – | 31776 | 31786 | 31796 | – | – | 1LB | |
| 1/2 | 3 | 6 | 1/2 | 33132 | – | 31912 | 31924 | 31934 | – | – | 1ELB | |
| 9/16 | 1-1/8 | 3-1/2 | 9/16 | 30166 | – | 39166 | 39066 | 30063 | – | – | 1B | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | 30168 | 30186 | 39168 | 39068 | 30064 | 30386 | – | 1B | |
| 5/8 | 2-1/4 | 5 | 5/8 | 33114 | – | 31777 | 31787 | 31797 | – | – | 1LB | |
| 5/8 | 3 | 6 | 5/8 | 33134 | – | 31914 | 31925 | 31935 | – | – | 1ELB | |
| 11/16 | 1-3/8 | 4 | 3/4 | 30170 | – | 39170 | 39070 | 30065 | – | – | 1B | |
| 3/4 | 1-1/2 | 4 | 3/4 | 30172 | 30187 | 39172 | 39072 | 30066 | 30387 | – | 1B | |
| 3/4 | 2-1/4 | 5 | 3/4 | 33116 | – | 31778 | 31788 | 31798 | – | – | 1LB | |
| 3/4 | 3 | 6 | 3/4 | 33136 | – | 31916 | 31926 | 31936 | – | – | 1ELB | |
| 7/8 | 1-1/2 | 4 | 7/8 | 30174 | – | 39174 | 39074 | 30067 | – | – | 1B | |
| 1 | 1-1/2 | 4 | 1 | 30176 | 30188 | 39176 | 39076 | 30068 | 30388 | – | 1B | |
| 1 | 2-1/4 | 5 | 1 | 33118 | – | 31779 | 31789 | 31799 | – | – | 1LB | |
| 1 | 3 | 6 | 1 | 33138 | – | 31917 | 31927 | 31937 | – | – | 1ELB | |
| Series | 1B Set | 30190 | – | 39190 | 39090 | 30070 | – | – | 1B |
