POS
4

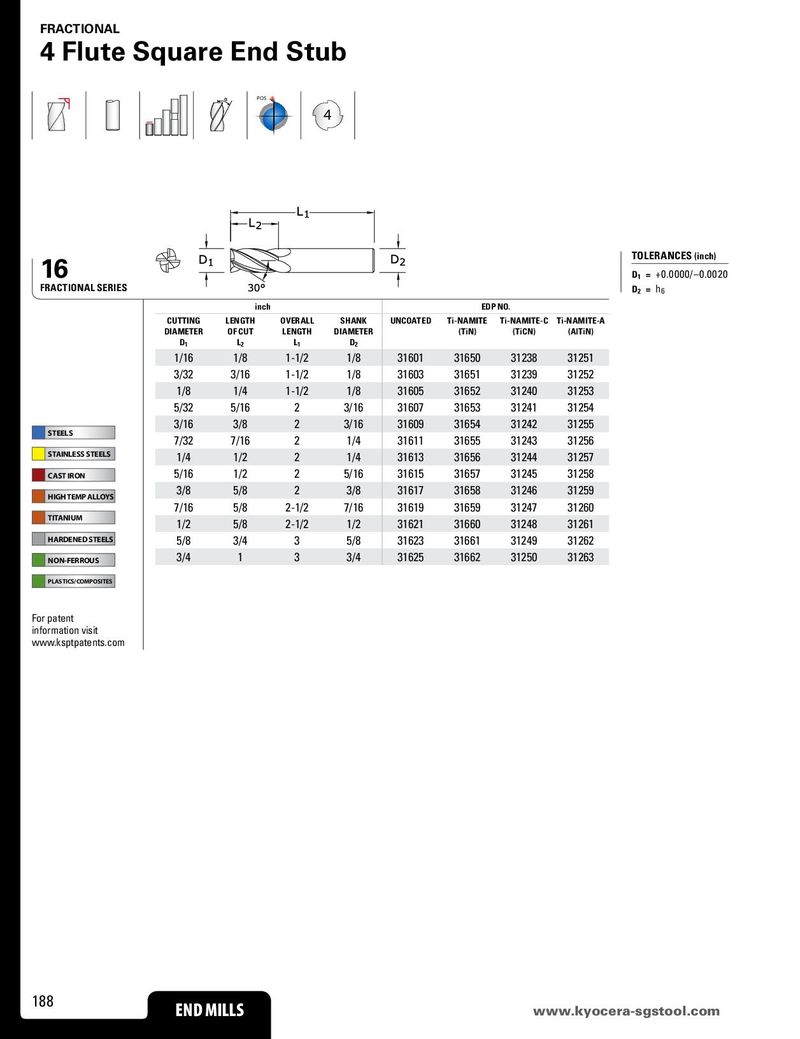

16 TOLERANCES (inch) D = +0.0000/–0.0020 1 FRACTIONAL SERIES D = h 2 6
| inc | h | EDP | NO. | |||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | |
| 1/16 | 1/8 | 1-1/2 | 1/8 | 31601 | 31650 | 31238 | 31251 | |
| 3/32 | 3/16 | 1-1/2 | 1/8 | 31603 | 31651 | 31239 | 31252 | |
| 1/8 | 1/4 | 1-1/2 | 1/8 | 31605 | 31652 | 31240 | 31253 | |
| 5/32 | 5/16 | 2 | 3/16 | 31607 | 31653 | 31241 | 31254 | |
| 3/16 | 3/8 | 2 | 3/16 | 31609 | 31654 | 31242 | 31255 | |
| STEELS | 7/32 | 7/16 | 2 | 1/4 | 31611 | 31655 | 31243 | 31256 |
| STAINLESS STEELS | 1/4 | 1/2 | 2 | 1/4 | 31613 | 31656 | 31244 | 31257 |
| CAST IRON | 5/16 | 1/2 | 2 | 5/16 | 31615 | 31657 | 31245 | 31258 |
| HIGH TEMP ALLOYS | 3/8 | 5/8 | 2 | 3/8 | 31617 | 31658 | 31246 | 31259 |
| 7/16 | 5/8 | 2-1/2 | 7/16 | 31619 | 31659 | 31247 | 31260 | |
| TITANIUM | 1/2 | 5/8 | 2-1/2 | 1/2 | 31621 | 31660 | 31248 | 31261 |
| HARDENED STEELS | 5/8 | 3/4 | 3 | 5/8 | 31623 | 31661 | 31249 | 31262 |
| NON-FERROUS | 3/4 | 1 | 3 | 3/4 | 31625 | 31662 | 31250 | 31263 |
| PLASTICS/COMPOSITES |
For patent information visit www.ksptpatents.com
