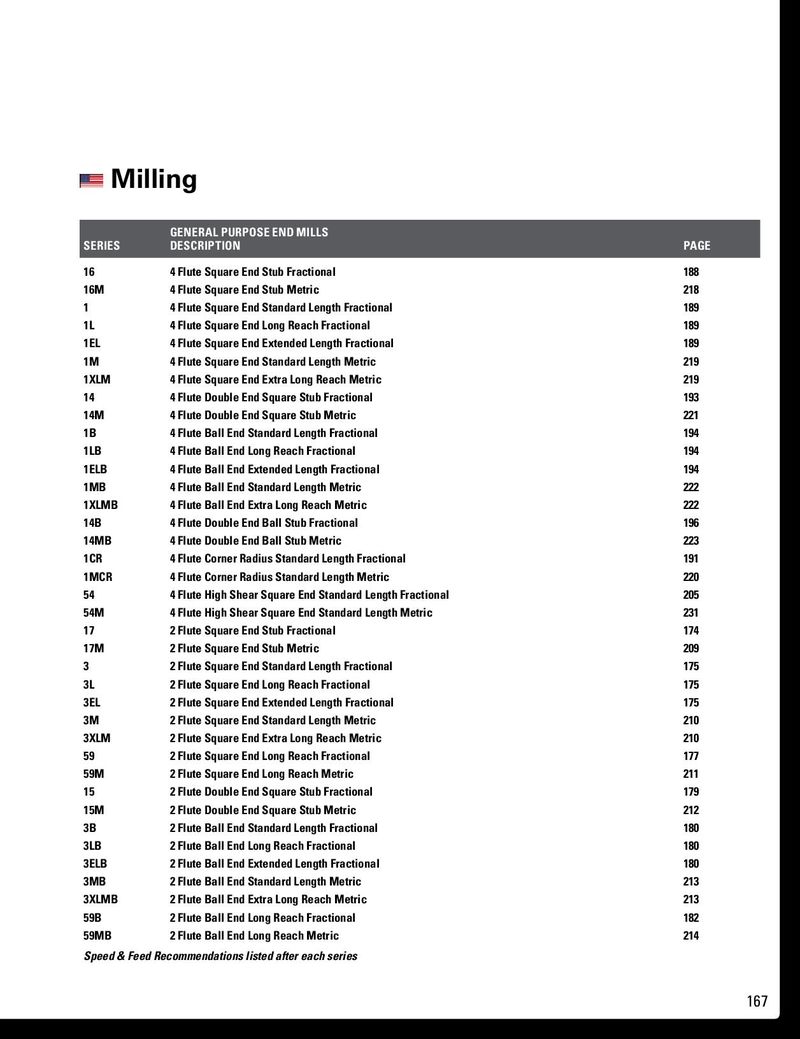

Общий каталог SGS 2018 - страница 167
Навигация
Каталог SGS шестизубые фрезы T-carb
Каталог SGS микро инструмент 2021
Каталог SGS фрезы для алюминия S-carb
Каталог SGS высокопроизводительные черновые фрезы
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2015 на русском
Solid Carbide Tools
Milling
General Purpose End Mills GENERAL PURPOSE END MILLS
| SERIES | DESCRIPTION | PAGE |
| 16 | 4 Flute Square End Stub Fractional | 188 |
| 16M | 4 Flute Square End Stub Metric | 218 |
| 1 | 4 Flute Square End Standard Length Fractional | 189 |
| 1L | 4 Flute Square End Long Reach Fractional | 189 |
| 1EL | 4 Flute Square End Extended Length Fractional | 189 |
| 1M | 4 Flute Square End Standard Length Metric | 219 |
| 1XLM | 4 Flute Square End Extra Long Reach Metric | 219 |
| 14 | 4 Flute Double End Square Stub Fractional | 193 |
| 14M | 4 Flute Double End Square Stub Metric | 221 |
| 1B | 4 Flute Ball End Standard Length Fractional | 194 |
| 1LB | 4 Flute Ball End Long Reach Fractional | 194 |
| 1ELB | 4 Flute Ball End Extended Length Fractional | 194 |
| 1MB | 4 Flute Ball End Standard Length Metric | 222 |
| 1XLMB | 4 Flute Ball End Extra Long Reach Metric | 222 |
| 14B | 4 Flute Double End Ball Stub Fractional | 196 |
| 14MB | 4 Flute Double End Ball Stub Metric | 223 |
| 1CR | 4 Flute Corner Radius Standard Length Fractional | 191 |
| 1MCR | 4 Flute Corner Radius Standard Length Metric | 220 |
| 54 | 4 Flute High Shear Square End Standard Length Fractional | 205 |
| 54M | 4 Flute High Shear Square End Standard Length Metric | 231 |
| 17 | 2 Flute Square End Stub Fractional | 174 |
| 17M | 2 Flute Square End Stub Metric | 209 |
| 3 | 2 Flute Square End Standard Length Fractional | 175 |
| 3L | 2 Flute Square End Long Reach Fractional | 175 |
| 3EL | 2 Flute Square End Extended Length Fractional | 175 |
| 3M | 2 Flute Square End Standard Length Metric | 210 |
| 3XLM | 2 Flute Square End Extra Long Reach Metric | 210 |
| 59 | 2 Flute Square End Long Reach Fractional | 177 |
| 59M | 2 Flute Square End Long Reach Metric | 211 |
| 15 | 2 Flute Double End Square Stub Fractional | 179 |
| 15M | 2 Flute Double End Square Stub Metric | 212 |
| 3B | 2 Flute Ball End Standard Length Fractional | 180 |
| 3LB | 2 Flute Ball End Long Reach Fractional | 180 |
| 3ELB | 2 Flute Ball End Extended Length Fractional | 180 |
| 3MB | 2 Flute Ball End Standard Length Metric | 213 |
| 3XLMB | 2 Flute Ball End Extra Long Reach Metric | 213 |
| 59B | 2 Flute Ball End Long Reach Fractional | 182 |
| 59MB | 2 Flute Ball End Long Reach Metric | 214 |
Speed & Feed Recommendations listed after each series
