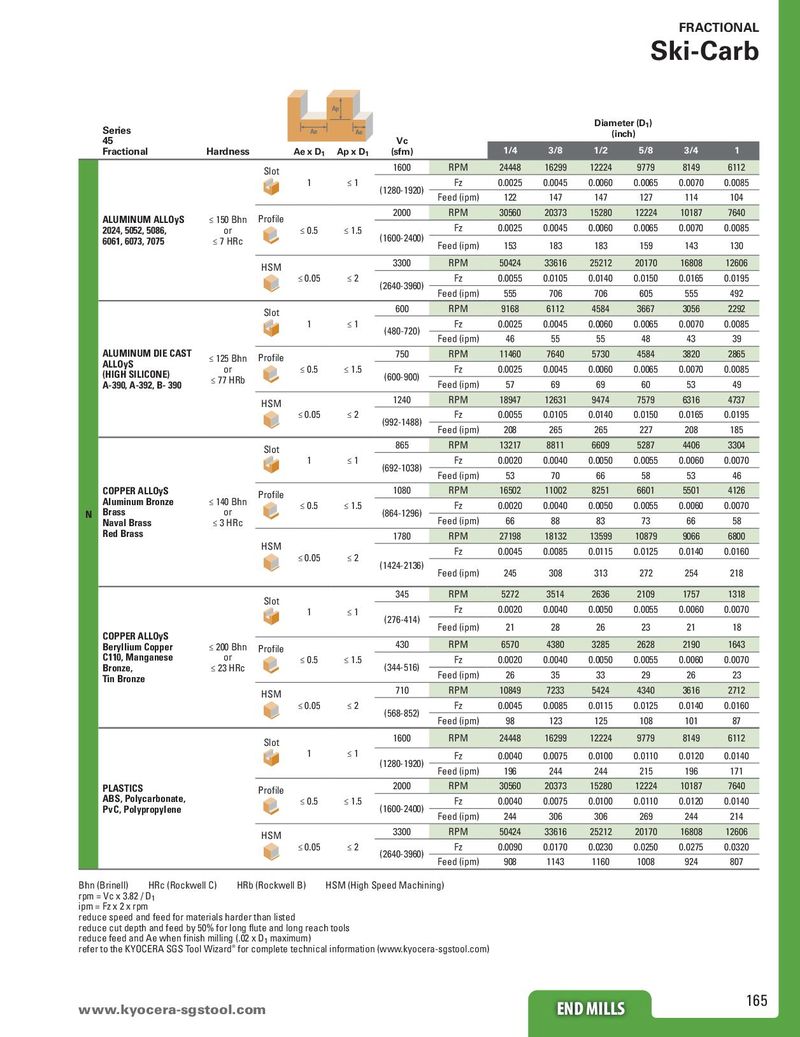

| Series 45 | Ae | Ap Ae | Vc | Diam (i | eter (D1) nch) | |||||||
| Fractional | Hardness | Ae x D1 | Ap x D1 | (sfm) | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||
| Slot | 1600 | RPM | 24448 | 16299 | 12224 | 9779 | 8149 | 6112 | ||||
| 1 | ≤ 1 | (12801920) | Fz | 0.0025 | 0.0045 | 0.0060 | 0.0065 | 0.0070 | 0.0085 | |||
| - | Feed (ipm) | 122 | 147 | 147 | 127 | 114 | 104 | |||||
| ALUMINUM ALLOS | ≤ 150 Bhn | Profile | 2000 | RPM | 30560 | 20373 | 15280 | 12224 | 10187 | 7640 | ||
| y 2024, 5052, 5086, | or | ≤ 0.5 | ≤ 1.5 | Fz | 0.0025 | 0.0045 | 0.0060 | 0.0065 | 0.0070 | 0.0085 | ||
| 6061, 6073, 7075 | ≤ 7 HRc | (1600-2400) | Feed (ipm) | 153 | 183 | 183 | 159 | 143 | 130 | |||
| HSM | 3300 | RPM | 50424 | 33616 | 25212 | 20170 | 16808 | 12606 | ||||
| ≤ 0.05 | ≤ 2 | Fz | 0.0055 | 0.0105 | 0.0140 | 0.0150 | 0.0165 | 0.0195 | ||||
| (2640-3960) | Feed (ipm) | 555 | 706 | 706 | 605 | 555 | 492 | |||||
| Slot | 600 | RPM | 9168 | 6112 | 4584 | 3667 | 3056 | 2292 | ||||
| 1 | ≤ 1 | (480720) | Fz | 0.0025 | 0.0045 | 0.0060 | 0.0065 | 0.0070 | 0.0085 | |||
| - | Feed (ipm) | 46 | 55 | 55 | 48 | 43 | 39 | |||||
| ALUMINUM DIE CAST | ≤ 125 Bhn | Profile | 750 | RPM | 11460 | 7640 | 5730 | 4584 | 3820 | 2865 | ||
| ALLOyS (HIGH SILICONE) | or | ≤ 0.5 | ≤ 1.5 | Fz | 0.0025 | 0.0045 | 0.0060 | 0.0065 | 0.0070 | 0.0085 | ||
| A-390, A-392, B- 390 | ≤ 77 HRb | (600-900) | Feed (ipm) | 57 | 69 | 69 | 60 | 53 | 49 | |||
| HSM | 1240 | RPM | 18947 | 12631 | 9474 | 7579 | 6316 | 4737 | ||||
| ≤ 0.05 | ≤ 2 | Fz | 0.0055 | 0.0105 | 0.0140 | 0.0150 | 0.0165 | 0.0195 | ||||
| (992-1488) | Feed (ipm) | 208 | 265 | 265 | 227 | 208 | 185 | |||||
| Slot | 865 | RPM | 13217 | 8811 | 6609 | 5287 | 4406 | 3304 | ||||
| 1 | ≤ 1 | Fz | 0.0020 | 0.0040 | 0.0050 | 0.0055 | 0.0060 | 0.0070 | ||||
| (692-1038) | Feed (ipm) | 53 | 70 | 66 | 58 | 53 | 46 | |||||
| COPPER ALLOyS | Profile | 1080 | RPM | 16502 | 11002 | 8251 | 6601 | 5501 | 4126 | |||
| Aluminum Bronze | ≤ 140 Bhn | ≤ 0.5 | ≤ 1.5 | Fz | 0.0020 | 0.0040 | 0.0050 | 0.0055 | 0.0060 | 0.0070 | ||
| N Brass Naval Brass | or ≤ 3 HRc | (864-1296) | Feed (ipm) | 66 | 88 | 83 | 73 | 66 | 58 | |||
| Red Brass | 1780 | RPM | 27198 | 18132 | 13599 | 10879 | 9066 | 6800 | ||||
| HSM | Fz | 00045 | 00085 | 00115 | 00125 | 00140 | 00160 | |||||
| ≤ 005 | ≤ 2 | . | . | . | . | . | . | |||||
| . | (1424-2136) | Feed (ipm) | 245 | 308 | 313 | 272 | 254 | 218 | ||||
| Slot | 345 | RPM | 5272 | 3514 | 2636 | 2109 | 1757 | 1318 | ||||
| 1 | ≤ 1 | Fz | 0.0020 | 0.0040 | 0.0050 | 0.0055 | 0.0060 | 0.0070 | ||||
| (276-414) | Feed (ipm) | 21 | 28 | 26 | 23 | 21 | 18 | |||||
| COPPER ALLOyS Beryllium Copper | ≤ 200 Bhn | Profile | 430 | RPM | 6570 | 4380 | 3285 | 2628 | 2190 | 1643 | ||
| C110, Manganese | or | ≤ 0.5 | ≤ 1.5 | Fz | 0.0020 | 0.0040 | 0.0050 | 0.0055 | 0.0060 | 0.0070 | ||
| Bronze, Tin Bronze | ≤ 23 HRc | (344-516) | Feed (ipm) | 26 | 35 | 33 | 29 | 26 | 23 | |||
| HSM | 710 | RPM | 10849 | 7233 | 5424 | 4340 | 3616 | 2712 | ||||
| ≤ 0.05 | ≤ 2 | Fz | 0.0045 | 0.0085 | 0.0115 | 0.0125 | 0.0140 | 0.0160 | ||||
| (568-852) | Feed (ipm) | 98 | 123 | 125 | 108 | 101 | 87 | |||||
| Slot | 1600 | RPM | 24448 | 16299 | 12224 | 9779 | 8149 | 6112 | ||||
| 1 | ≤ 1 | Fz | 0.0040 | 0.0075 | 0.0100 | 0.0110 | 0.0120 | 0.0140 | ||||
| (1280-1920) | Feed (ipm) | 196 | 244 | 244 | 215 | 196 | 171 | |||||
| PLASTICS | Profile | 2000 | RPM | 30560 | 20373 | 15280 | 12224 | 10187 | 7640 | |||
| ABS, Polycarbonate, | ≤ 0.5 | ≤ 1.5 | Fz | 0.0040 | 0.0075 | 0.0100 | 0.0110 | 0.0120 | 0.0140 | |||
| PvC, Polypropylene | (1600-2400) | |||||||||||
| Feed (ipm) | 244 | 306 | 306 | 269 | 244 | 214 | ||||||
| HSM | 3300 | RPM | 50424 | 33616 | 25212 | 20170 | 16808 | 12606 | ||||
| ≤ 0.05 | ≤ 2 | Fz | 0.0090 | 0.0170 | 0.0230 | 0.0250 | 0.0275 | 0.0320 | ||||
| (2640-3960) | Feed (ipm) | 908 | 1143 | 1160 | 1008 | 924 | 807 |
ipm = Fz x 2 x rpm reduce speed and feed for materials harder than listed reduce cut depth and feed by 50% for long flute and long reach tools reduce feed and Ae when finish milling (.02 x D maximum) 1 refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
