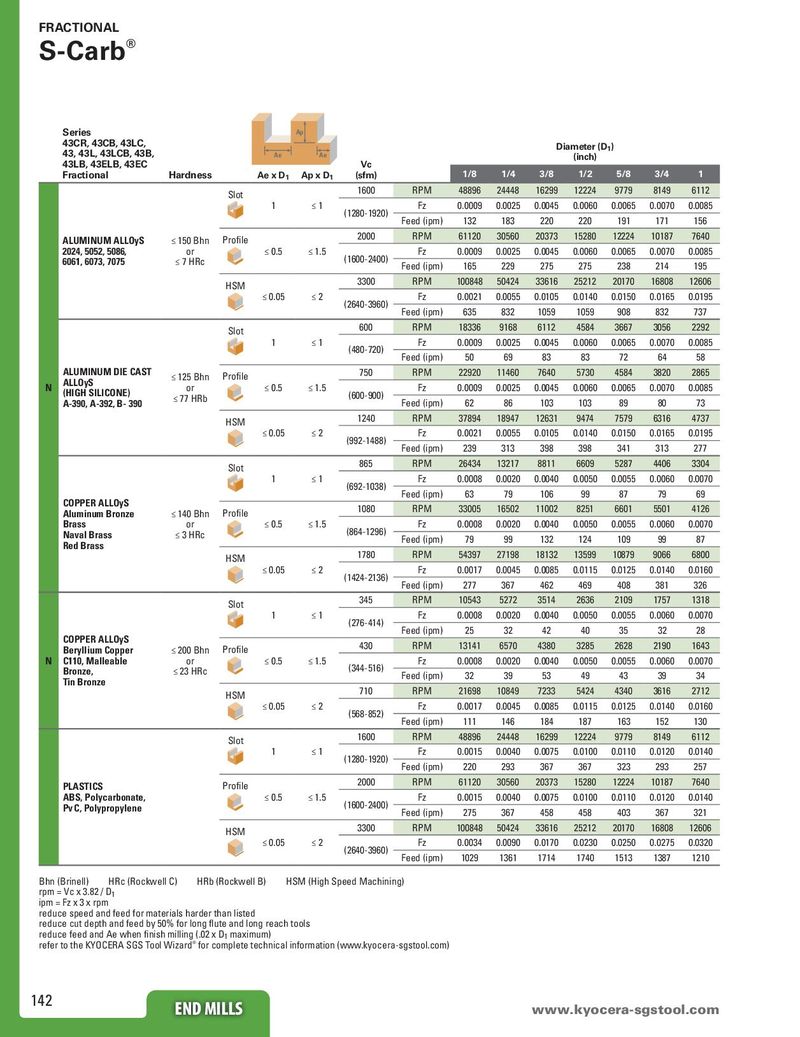

| Series 43CR, 43CB, 43LC, 43, 43L, 43LCB, 43B, 43LB 43ELB 43EC | Ae | Ap Ae | Vc | D | iameter ( (inch) | D1) | |||||||
| , , Fractional | Hardness | Ae x D1 | Ap x D1 | (sfm) | 1/8 | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||
| Slot | 1600 | RPM | 48896 | 24448 | 16299 | 12224 | 9779 | 8149 | 6112 | ||||
| 1 | ≤ 1 | (1280-1920) | Fz | 0.0009 | 0.0025 | 0.0045 | 0.0060 | 0.0065 | 0.0070 | 0.0085 | |||
| Feed (ipm) | 132 | 183 | 220 | 220 | 191 | 171 | 156 | ||||||
| ALUMINUM ALLOyS | ≤ 150 Bhn | Profile | 2000 | RPM | 61120 | 30560 | 20373 | 15280 | 12224 | 10187 | 7640 | ||
| 2024, 5052, 5086, | or | ≤ 0.5 | ≤ 1.5 | Fz | 0.0009 | 0.0025 | 0.0045 | 0.0060 | 0.0065 | 0.0070 | 0.0085 | ||
| 6061, 6073, 7075 | ≤ 7 HRc | (1600-2400) | Feed (ipm) | 165 | 229 | 275 | 275 | 238 | 214 | 195 | |||
| HSM | 3300 | RPM | 100848 | 50424 | 33616 | 25212 | 20170 | 16808 | 12606 | ||||
| ≤ 0.05 | ≤ 2 | Fz | 0.0021 | 0.0055 | 0.0105 | 0.0140 | 0.0150 | 0.0165 | 0.0195 | ||||
| (2640-3960) | Feed (ipm) | 635 | 832 | 1059 | 1059 | 908 | 832 | 737 | |||||
| Slot | 600 | RPM | 18336 | 9168 | 6112 | 4584 | 3667 | 3056 | 2292 | ||||
| 1 | ≤ 1 | (480720) | Fz | 0.0009 | 0.0025 | 0.0045 | 0.0060 | 0.0065 | 0.0070 | 0.0085 | |||
| - | Feed (ipm) | 50 | 69 | 83 | 83 | 72 | 64 | 58 | |||||
| ALUMINUM DIE CAST | ≤ 125 Bhn | Profile | 750 | RPM | 22920 | 11460 | 7640 | 5730 | 4584 | 3820 | 2865 | ||
| N ALLOyS (HIGH SILICONE) | or | ≤ 0.5 | ≤ 1.5 | 600900 | Fz | 0.0009 | 0.0025 | 0.0045 | 0.0060 | 0.0065 | 0.0070 | 0.0085 | |
| A-390, A-392, B- 390 | ≤ 77 HRb | (-) | Feed (ipm) | 62 | 86 | 103 | 103 | 89 | 80 | 73 | |||
| HSM | 1240 | RPM | 37894 | 18947 | 12631 | 9474 | 7579 | 6316 | 4737 | ||||
| ≤ 0.05 | ≤ 2 | (992-1488) | Fz | 0.0021 | 0.0055 | 0.0105 | 0.0140 | 0.0150 | 0.0165 | 0.0195 | |||
| Feed (ipm) | 239 | 313 | 398 | 398 | 341 | 313 | 277 | ||||||
| Slot | 865 | RPM | 26434 | 13217 | 8811 | 6609 | 5287 | 4406 | 3304 | ||||
| 1 | ≤ 1 | (6921038) | Fz | 0.0008 | 0.0020 | 0.0040 | 0.0050 | 0.0055 | 0.0060 | 0.0070 | |||
| - | Feed (ipm) | 63 | 79 | 106 | 99 | 87 | 79 | 69 | |||||
| COPPER ALLOyS Aluminum Bronze | ≤ 140 Bhn | Profile | 1080 | RPM | 33005 | 16502 | 11002 | 8251 | 6601 | 5501 | 4126 | ||
| Brass | or | ≤ 0.5 | ≤ 1.5 | Fz | 0.0008 | 0.0020 | 0.0040 | 0.0050 | 0.0055 | 0.0060 | 0.0070 | ||
| Naval Brass Rd B | ≤ 3 HRc | (864-1296) | Feed (ipm) | 79 | 99 | 132 | 124 | 109 | 99 | 87 | |||
| e rass | HSM | 1780 | RPM | 54397 | 27198 | 18132 | 13599 | 10879 | 9066 | 6800 | |||
| ≤ 0.05 | ≤ 2 | Fz | 0.0017 | 0.0045 | 0.0085 | 0.0115 | 0.0125 | 0.0140 | 0.0160 | ||||
| (1424-2136) | Feed (ipm) | 277 | 367 | 462 | 469 | 408 | 381 | 326 | |||||
| Slot | 345 | RPM | 10543 | 5272 | 3514 | 2636 | 2109 | 1757 | 1318 | ||||
| 1 | ≤ 1 | Fz | 0.0008 | 0.0020 | 0.0040 | 0.0050 | 0.0055 | 0.0060 | 0.0070 | ||||
| COPPER ALLOS | (276-414) | Feed (ipm) | 25 | 32 | 42 | 40 | 35 | 32 | 28 | ||||
| y Beryllium Copper | ≤ 200 Bhn | Profile | 430 | RPM | 13141 | 6570 | 4380 | 3285 | 2628 | 2190 | 1643 | ||
| N C110, Malleable | or | ≤ 0.5 | ≤ 1.5 | (344-516) | Fz | 0.0008 | 0.0020 | 0.0040 | 0.0050 | 0.0055 | 0.0060 | 0.0070 | |
| Bronze, Tin Bronze | ≤ 23 HRc | Feed (ipm) | 32 | 39 | 53 | 49 | 43 | 39 | 34 | ||||
| HSM | 710 | RPM | 21698 | 10849 | 7233 | 5424 | 4340 | 3616 | 2712 | ||||
| ≤ 0.05 | ≤ 2 | (568-852) | Fz | 0.0017 | 0.0045 | 0.0085 | 0.0115 | 0.0125 | 0.0140 | 0.0160 | |||
| Feed (ipm) | 111 | 146 | 184 | 187 | 163 | 152 | 130 | ||||||
| Slot | 1600 | RPM | 48896 | 24448 | 16299 | 12224 | 9779 | 8149 | 6112 | ||||
| 1 | ≤ 1 | Fz | 0.0015 | 0.0040 | 0.0075 | 0.0100 | 0.0110 | 0.0120 | 0.0140 | ||||
| (1280-1920) | Feed (ipm) | 220 | 293 | 367 | 367 | 323 | 293 | 257 | |||||
| PLASTICS | Profile | 2000 | RPM | 61120 | 30560 | 20373 | 15280 | 12224 | 10187 | 7640 | |||
| ABS, Polycarbonate, | ≤ 0.5 | ≤ 1.5 | Fz | 0.0015 | 0.0040 | 0.0075 | 0.0100 | 0.0110 | 0.0120 | 0.0140 | |||
| PvC, Polypropylene | (1600-2400) | Feed (ipm) | 275 | 367 | 458 | 458 | 403 | 367 | 321 | ||||
| HSM | 3300 | RPM | 100848 | 50424 | 33616 | 25212 | 20170 | 16808 | 12606 | ||||
| ≤ 0.05 | ≤ 2 | Fz | 0.0034 | 0.0090 | 0.0170 | 0.0230 | 0.0250 | 0.0275 | 0.0320 | ||||
| (2640-3960) | Feed (ipm) | 1029 | 1361 | 1714 | 1740 | 1513 | 1387 | 1210 |
ipm = Fz x 3 x rpm reduce speed and feed for materials harder than listed reduce cut depth and feed by 50% for long flute and long reach tools reduce feed and Ae when finish milling (.02 x D1 maximum) refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
