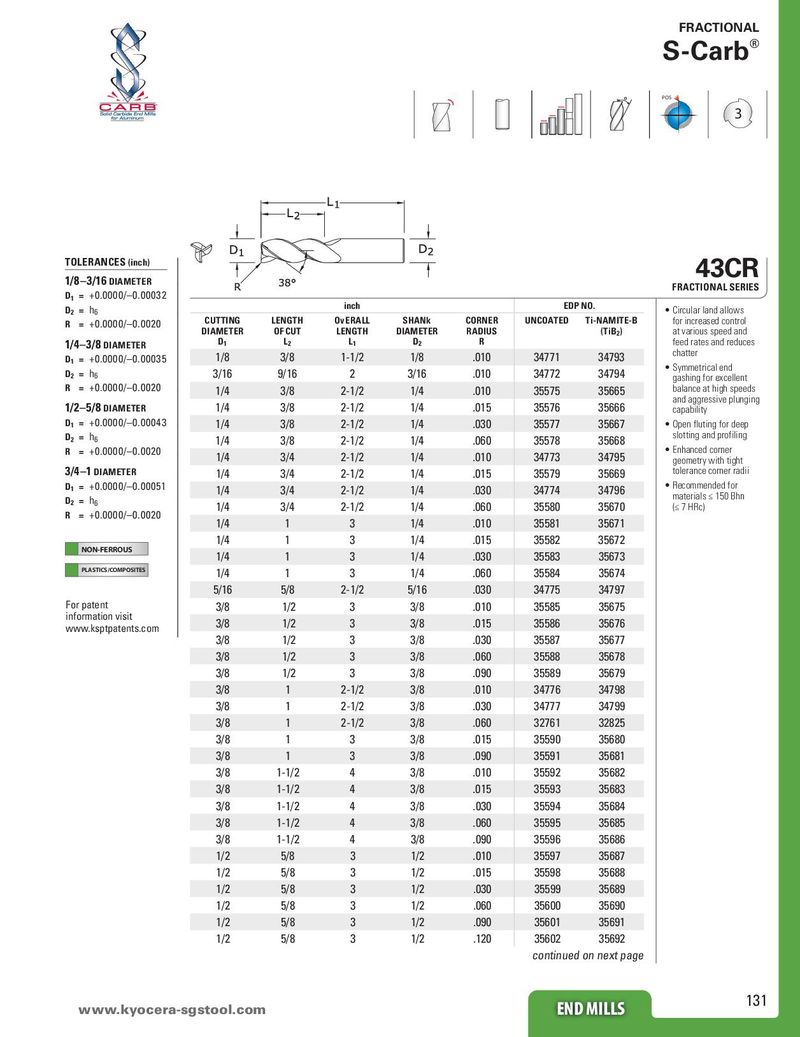

POS ® 3
TOLERANCES (inch) 43CR 1/8–3/16 DIAMETER FRACTIONAL SERIES D = +0.0000/–0.00032
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | inch OvERALL LENGTH L1 | SHANk DIAMETER D2 | CORNER RADIUS R | ED UNCOATED | P NO. Ti-NAMITE-B (TiB2) |
| 1/8 | 3/8 | 1-1/2 | 1/8 | .010 | 34771 | 34793 |
| 3/16 | 9/16 | 2 | 3/16 | .010 | 34772 | 34794 |
| 1/4 | 3/8 | 2-1/2 | 1/4 | .010 | 35575 | 35665 |
| 1/4 | 3/8 | 2-1/2 | 1/4 | .015 | 35576 | 35666 |
| 1/4 | 3/8 | 2-1/2 | 1/4 | .030 | 35577 | 35667 |
| 1/4 | 3/8 | 2-1/2 | 1/4 | .060 | 35578 | 35668 |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .010 | 34773 | 34795 |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .015 | 35579 | 35669 |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .030 | 34774 | 34796 |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .060 | 35580 | 35670 |
| 1/4 | 1 | 3 | 1/4 | .010 | 35581 | 35671 |
| 1/4 | 1 | 3 | 1/4 | .015 | 35582 | 35672 |
| 1/4 | 1 | 3 | 1/4 | .030 | 35583 | 35673 |
| 1/4 | 1 | 3 | 1/4 | .060 | 35584 | 35674 |
| 5/16 | 5/8 | 2-1/2 | 5/16 | .030 | 34775 | 34797 |
| 3/8 | 1/2 | 3 | 3/8 | .010 | 35585 | 35675 |
| 3/8 | 1/2 | 3 | 3/8 | .015 | 35586 | 35676 |
| 3/8 | 1/2 | 3 | 3/8 | .030 | 35587 | 35677 |
| 3/8 | 1/2 | 3 | 3/8 | .060 | 35588 | 35678 |
| 3/8 | 1/2 | 3 | 3/8 | .090 | 35589 | 35679 |
| 3/8 | 1 | 2-1/2 | 3/8 | .010 | 34776 | 34798 |
| 3/8 | 1 | 2-1/2 | 3/8 | .030 | 34777 | 34799 |
| 3/8 | 1 | 2-1/2 | 3/8 | .060 | 32761 | 32825 |
| 3/8 | 1 | 3 | 3/8 | .015 | 35590 | 35680 |
| 3/8 | 1 | 3 | 3/8 | .090 | 35591 | 35681 |
| 3/8 | 1-1/2 | 4 | 3/8 | .010 | 35592 | 35682 |
| 3/8 | 1-1/2 | 4 | 3/8 | .015 | 35593 | 35683 |
| 3/8 | 1-1/2 | 4 | 3/8 | .030 | 35594 | 35684 |
| 3/8 | 1-1/2 | 4 | 3/8 | .060 | 35595 | 35685 |
| 3/8 | 1-1/2 | 4 | 3/8 | .090 | 35596 | 35686 |
| 1/2 | 5/8 | 3 | 1/2 | .010 | 35597 | 35687 |
| 1/2 | 5/8 | 3 | 1/2 | .015 | 35598 | 35688 |
| 1/2 | 5/8 | 3 | 1/2 | .030 | 35599 | 35689 |
| 1/2 | 5/8 | 3 | 1/2 | .060 | 35600 | 35690 |
| 1/2 | 5/8 | 3 | 1/2 | .090 | 35601 | 35691 |
| 1/2 | 5/8 | 3 | 1/2 | .120 | 35602 | 35692 |
1 2 6
D1 =
1 2 6
D = h R = +0.0000/–0.0020
and aggressive plunging
geometry with tight
www.ksptpatents.com
