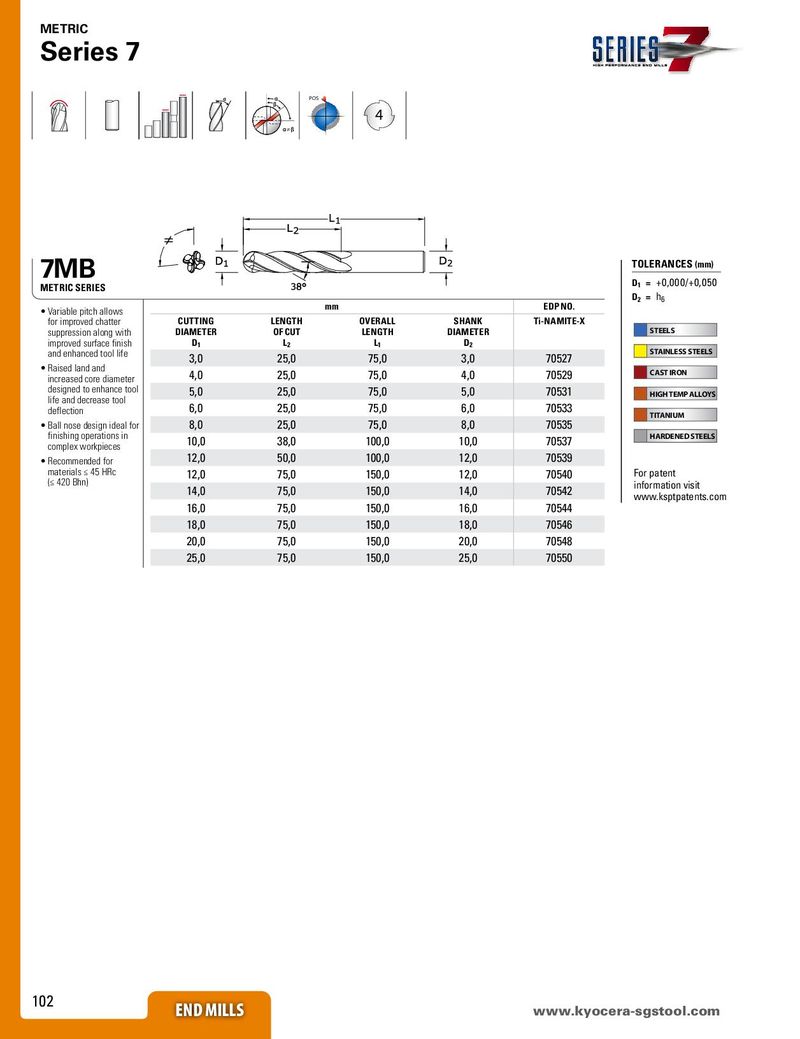

METRIC Series 7 POS 4 ≠ 7MB TOLERANCES (mm) D1 = +0,000/+0,050 METRIC SERIES D2 = h6 • Variable pitch allows mm EDP NO. for improved chatter CUTTING LENGTH OVERALL SHANK Ti-NAMITE-X suppression along with DIAMETER OF CUT LENGTH DIAMETER STEELS improved surface finish D1 L2 L1 D2 and enhanced tool life STAINLESS STEELS 3,0 25,0 75,0 3,0 70527 • Raised land and increased core diameter 4,0 25,0 75,0 4,0 70529 CAST IRON designed to enhance tool 5,0 25,0 75,0 5,0 70531 HIGH TEMP ALLOYS life and decrease tool deflection 6,0 25,0 75,0 6,0 70533 TITANIUM • Ball nose design ideal for 8,0 25,0 75,0 8,0 70535 finishing operations in HARDENED STEELS complex workpieces 10,0 38,0 100,0 10,0 70537 • Recommended for 12,0 50,0 100,0 12,0 70539 materials ≤ 45 HRc 12,0 75,0 150,0 12,0 70540 For patent (≤ 420 Bhn) information visit 14,0 75,0 150,0 14,0 70542 www.ksptpatents.com 16,0 75,0 150,0 16,0 70544 18,0 75,0 150,0 18,0 70546 20,0 75,0 150,0 20,0 70548 25,0 75,0 150,0 25,0 70550 102 END MILLS END MILLS www.kyocera-sgstool.com
