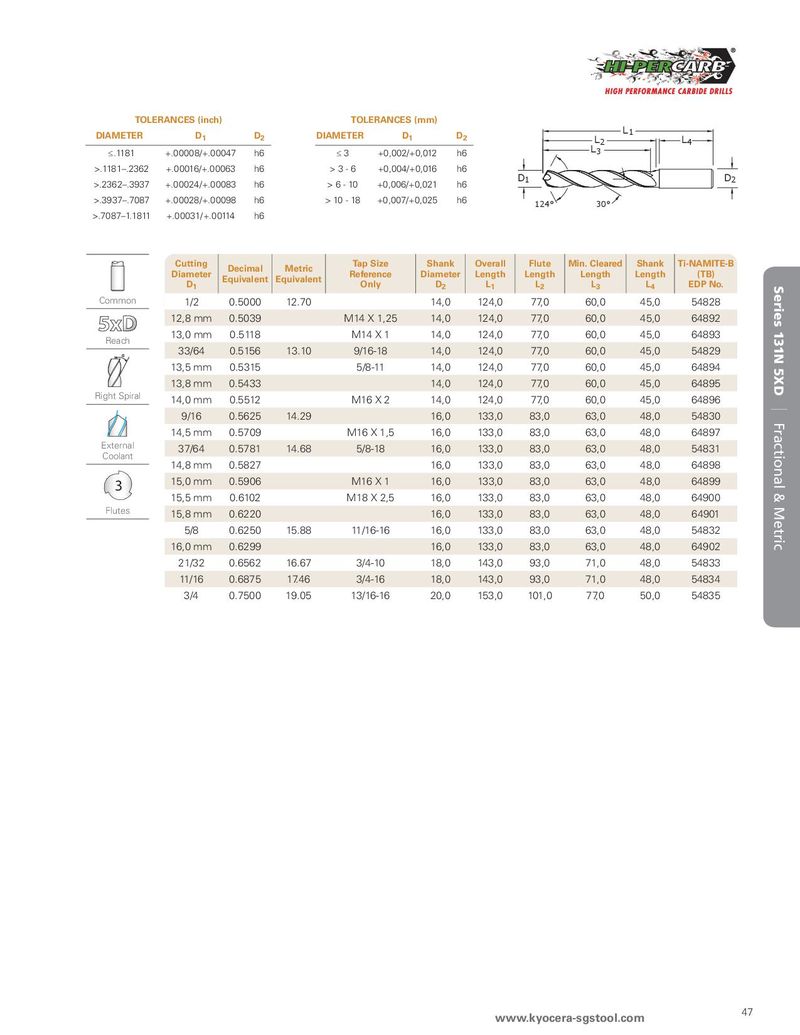

Каталог SGS инструмент для обработки алюминия - страница 47

Предыдущая страница Следующая страница

Навигация

TOLE DIAMETERRANCES (inch) D1D2TOL DIAMETERERANCES (mm) D1D2L1 L2 L4
≤.1181+.00008/+.00047h6≤ 3+0,002/+0,012h6L3
>.1181–.2362 >.2362–.3937+.00016/+.00063 +.00024/+.00083h6 h6> 3 - 6 > 6 - 10+0,004/+0,016 +0,006/+0,021h6 h62 D 1 D
>.3937–.7087+.00028/+.00098h6> 10 - 18+0,007/+0,025h6124° 30°
>.7087–1.1811+.00031/+.00114h6
Cutting Diameter D1Decimal EquivalentMetric EquivalentTap Size Reference OnlyShank Diameter D2Overall Length L1Flute Length L2Min. Cleared Length L3Shank Length L4Ti-NAMITE-B (TB) EDP No.
Common1/20.500012.7014,0124,077,060,045,054828
12,8 mm0.5039M14 X 1,2514,0124,077,060,045,064892
Reach13,0 mm0.5118M14 X 114,0124,077,060,045,064893
33/640.515613.109/16-1814,0124,077,060,045,054829
13,5 mm0.53155/8-1114,0124,077,060,045,064894
13,8 mm0.543314,0124,077,060,045,064895
Right Spiral14,0 mm0.5512M16 X 214,0124,077,060,045,064896
9/160.562514.2916,0133,083,063,048,054830
14,5 mm0.5709M16 X 1,516,0133,083,063,048,064897
External Coolant37/640.578114.685/8-1816,0133,083,063,048,054831
14,8 mm0.582716,0133,083,063,048,064898
315,0 mm0.5906M16 X 116,0133,083,063,048,064899
15,5 mm0.6102M18 X 2,516,0133,083,063,048,064900
Flutes15,8 mm0.622016,0133,083,063,048,064901
5/80.625015.8811/16-1616,0133,083,063,048,054832
16,0 mm0.629916,0133,083,063,048,064902
21/320.656216.673/4-1018,0143,093,071,048,054833
11/160.687517.463/4-1618,0143,093,071,048,054834
3/40.750019.0513/16-1620,0153,0101,077,050,054835
