Каталог SGS фрезы для алюминия S-carb
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
Каталог SGS фрезы с переменным углом спирали Z-carb
Каталог SGS фрезы для обработки пластика PCR series
Каталог SGS микро инструмент 2021
Каталог SGS шестизубые фрезы T-carb
| D | D L1 L2 | TO DIAMETER | LERANCES (mm) D1 | D2 | |
| 1 | 2 38° | 3 4 - 6 | +0,000 / –0,006 +0,000 / –0,008 | h6 h6 | |
| L1 | 8 - 10 | +0,000 / –0,009 | h6 | ||
| L3 L2 | 12 - 16 20 | +0,000 / –0,011 +0,000 / –0,013 | h6 h6 | ||
| 1 D | 38° | 2 D |

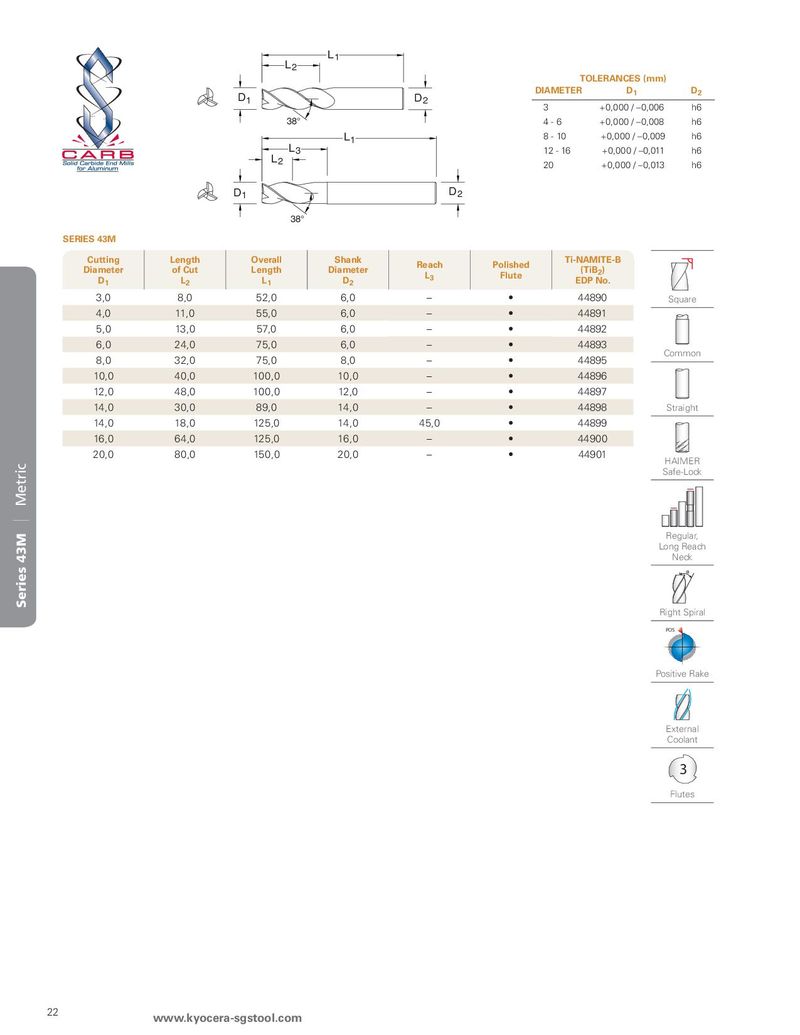

| SERIES 43M | |||||||
| Cutting Diameter | Length of Cut | Overall Length | Shank Diameter | Reach L | Polished Fl | Ti-NAMITE-B (TiB2) | |
| D1 | L2 | L1 | D2 | 3 | ute | EDP No. | |
| 3,0 | 8,0 | 52,0 | 6,0 | – | • | 44890 | Square |
| 4,0 | 11,0 | 55,0 | 6,0 | – | • | 44891 | |
| 5,0 | 13,0 | 57,0 | 6,0 | – | • | 44892 | |
| 6,0 | 24,0 | 75,0 | 6,0 | – | • | 44893 | |
| 8,0 | 32,0 | 75,0 | 8,0 | – | • | 44895 | Common |
| 10,0 | 40,0 | 100,0 | 10,0 | – | • | 44896 | |
| 12,0 | 48,0 | 100,0 | 12,0 | – | • | 44897 | |
| 14,0 | 30,0 | 89,0 | 14,0 | – | • | 44898 | Straight |
| 14,0 | 18,0 | 125,0 | 14,0 | 45,0 | • | 44899 | |
| 16,0 | 64,0 | 125,0 | 16,0 | – | • | 44900 | |
| 20,0 | 80,0 | 150,0 | 20,0 | – | • | 44901 | HAIMER |
| Safe-Lock | |||||||
| Regular, Long Reach Neck | |||||||
| Right Spiral | |||||||
| POS Positive Rake | |||||||
| External Coolant | |||||||
| 3 Flutes |
