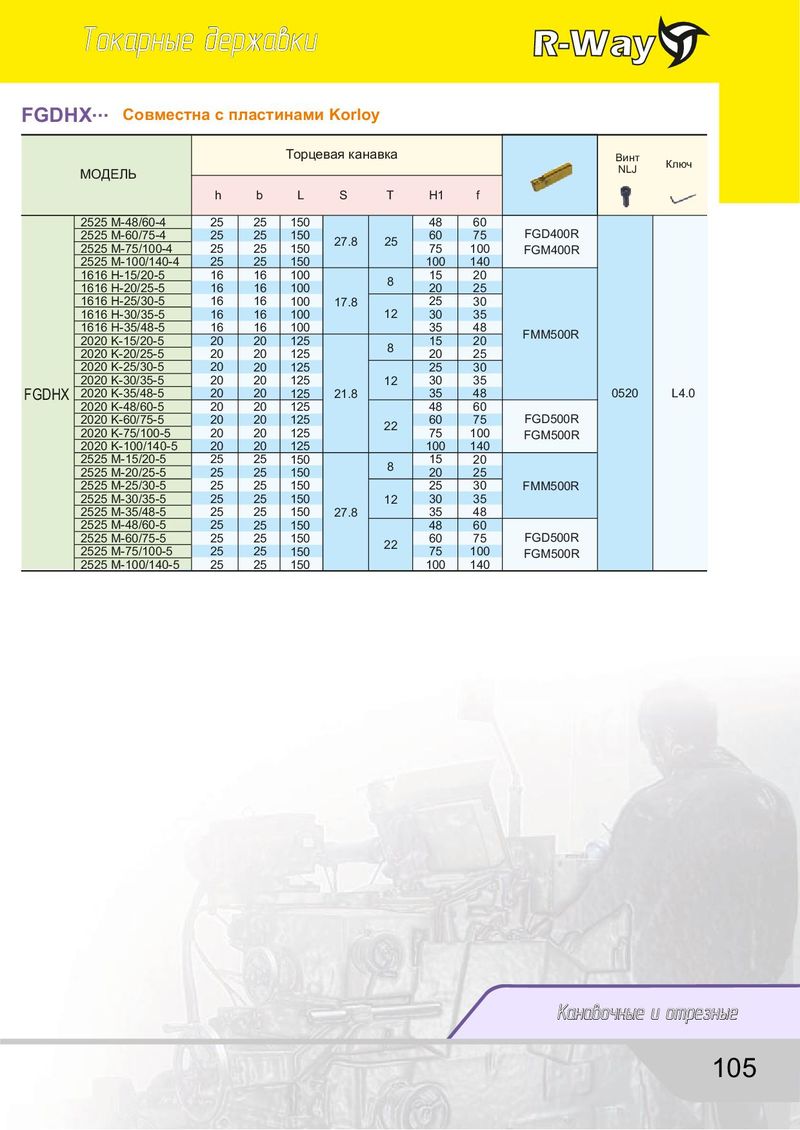

FGDHX... Совместна с пластинами Korloy
| МОДЕЛЬ | Торце | вая кан | авка | Винт NLJ | Ключ | |||||
| h | b | L | S | T | H1 | f | ||||
| 2525 M-48/60-4 | 25 | 25 | 150 | 48 | 60 | |||||
| 2525 M-60/75-4 | 25 | 25 | 150 | 60 | 75 | FGD400R | ||||
| 2525 M-75/100-4 | 25 | 25 | 150 | 27.8 | 25 | 75 | 100 | FGM400R | ||
| 2525 M-100/140-4 | 25 | 25 | 150 | 100 | 140 | |||||
| 1616 H-15/20-5 | 16 | 16 | 100 | 15 | 20 | |||||
| 1616 H-20/25-5 | 16 | 16 | 100 | 8 | 20 | 25 | ||||
| 1616 H-25/30-5 | 16 | 16 | 100 | 17.8 | 25 | 30 | ||||
| 1616 H-30/35-5 | 16 | 16 | 100 | 12 | 30 | 35 | ||||
| 1616 H-35/48-5 | 16 | 16 | 100 | 35 | 48 | |||||
| 2020 K-15/20-5 | 20 | 20 | 125 | 15 | 20 | FMM500R | ||||
| 2020 K-20/25-5 | 20 | 20 | 125 | 8 | 20 | 25 | ||||
| 2020 K-25/30-5 | 20 | 20 | 125 | 25 | 30 | |||||
| 2020 K-30/35-5 | 20 | 20 | 125 | 12 | 30 | 35 | ||||
| 2020 K-35/48-5 FGDHX | 20 | 20 | 125 | 21.8 | 35 | 48 | 0520 | L4.0 | ||
| 2020 K-48/60-5 | 20 | 20 | 125 | 48 | 60 | |||||
| 2020 K-60/75-5 | 20 | 20 | 125 | 60 | 75 | FGD500R | ||||
| 2020 K-75/100-5 | 20 | 20 | 125 | 22 | 75 | 100 | FGM500R | |||
| 2020 K-100/140-5 | 20 | 20 | 125 | 100 | 140 | |||||
| 2525 M-15/20-5 | 25 | 25 | 150 | 15 | 20 | |||||
| 2525 M-20/25-5 | 25 | 25 | 150 | 8 | 20 | 25 | ||||
| 2525 M-25/30-5 | 25 | 25 | 150 | 25 | 30 | FMM500R | ||||
| 2525 M-30/35-5 | 25 | 25 | 150 | 12 | 30 | 35 | ||||
| 2525 M-35/48-5 | 25 | 25 | 150 | 27.8 | 35 | 48 | ||||
| 2525 M-48/60-5 | 25 | 25 | 150 | 48 | 60 | |||||
| 2525 M-60/75-5 | 25 | 25 | 150 | 60 | 75 | FGD500R | ||||
| 2525 M-75/100-5 | 25 | 25 | 150 | 22 | 75 | 100 | FGM500R | |||
| 2525 M-100/140-5 | 25 | 25 | 150 | 100 | 140 |
